Запчасти Bobcat T-Series HEATER & A/C (HVAC Assembly) (Metal Housing) ACCESSORIES & OPTIONS

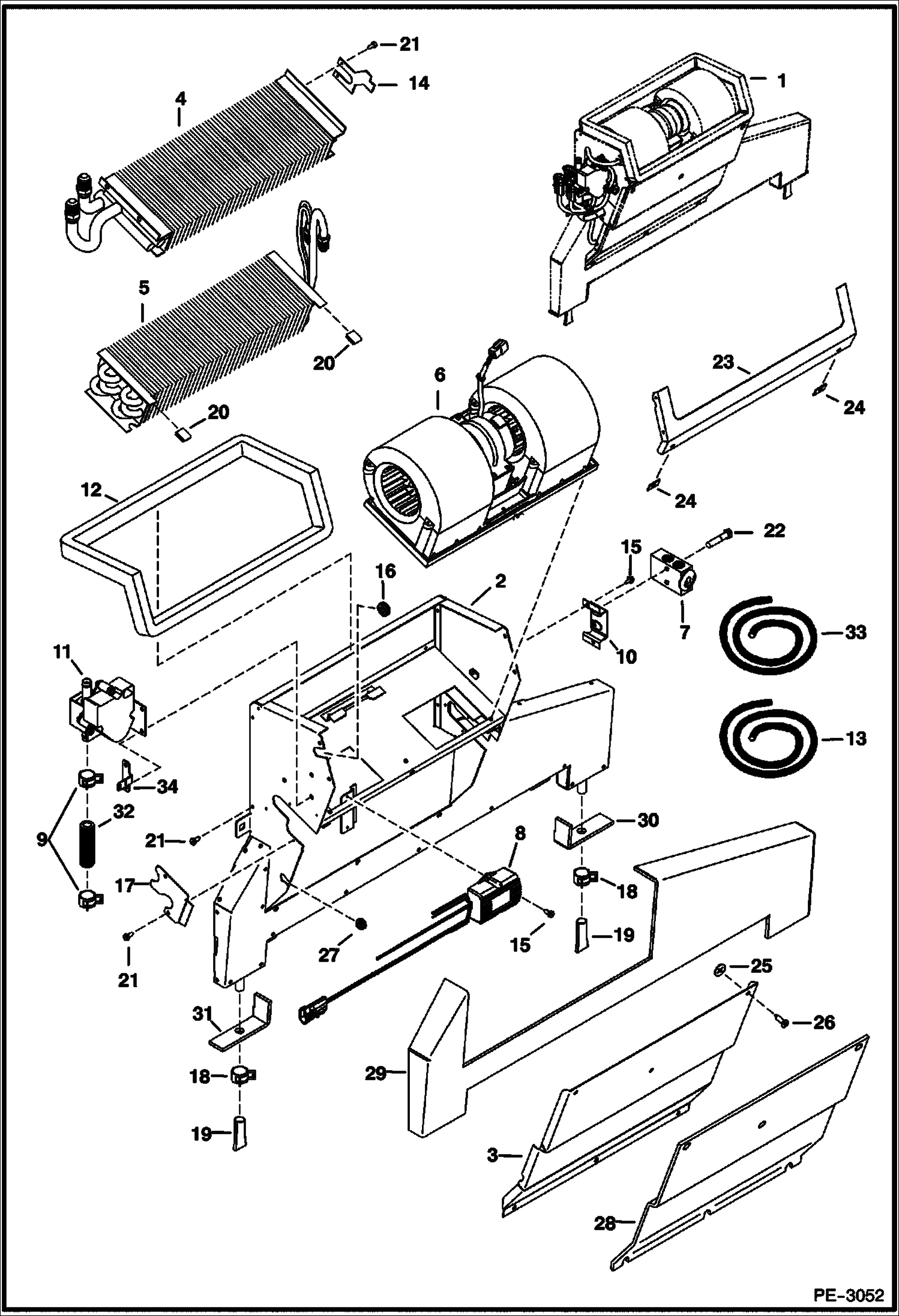

Схема запчастей Bobcat T-Series - HEATER & A/C (HVAC Assembly) (Metal Housing) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6688542

HVAC HEATER assy - Ref. 2-34

2

6690478

HOUSING

3

COVER NLA - Order 6690476, also Order Ref. 23 (6678152)

3

6690476

COVER

4

COIL NSS - heater - Order 6689770 heater coil kit

5

6690477

EVAPORATOR

5

7009977

O-RING #8 - Was 6675538 - A

6

6689762

BLOWER assy

7

6675534

BLOCK, VALVE A/C

8

6683004

THERMOSTAT

9

6675512

CLAMP hose

10

6676984

MOUNT valve

11

6689696

VALVE, HEATER CAB

12

SEAL NLA - 48.75'' (1238,25mm) - Order Ref. 13

13

6677111

SEAL bulk - sold per foot

14

6690480

COVER

15

6691532

SCREW Was 6677118 - A

16

6690482

GROMMET

17

6690479

COVER

18

6675510

CLAMP drain hose

19

6675511

DRAIN VALVE

20

6676539

CLIP

21

6726621

SCREW sheet metal

22

1CM635

BOLT

23

SEAL NLA - Order 6678152, Also Order Ref. 3 (6690476)

23

6678152

SEAL FLANGE

24

6677115

RECEPTACLE

25

6677116

RETAINER

26

6677117

SCREW captive

27

6684947

GROMMET

28

6689179

INSULATION

29

6689180

INSULATION

30

6675609

INSULATION

31

6675608

INSULATION

32

HOSE NLA - 1/2'' heater hose 2.75'' (69,85mm) - Order Ref. 33

33

6565977

HOSE bulk - sold per foot

34

6690481

BRACKET harness

Выбрано товаров: 37
