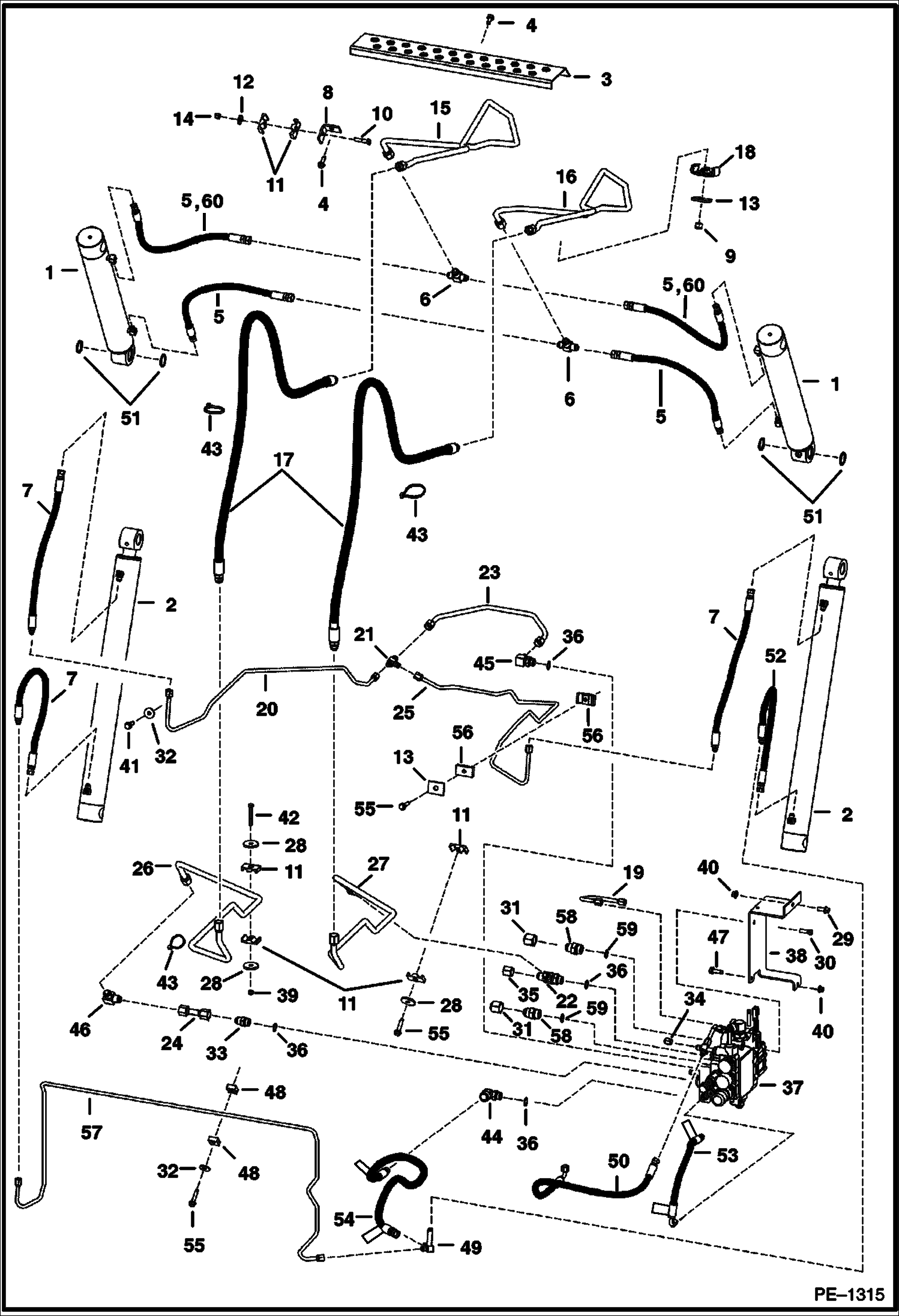

Запчасти Bobcat T-Series HYDRAULIC CIRCUITRY (W/O Bucket Positioning Valve) (S/N 5193 11642 & Bel, 5194 11091 & Bel) HYDRAULIC SYSTEM

1

CYLINDER See Illustration TILT CYLINDER/ PE1056 TILT

2

CYLINDER See Illustration LIFT CYLINDER/ B13593 LIFT

3

6717502

BOOM STEP W/2'' mounting holes surface

3

6735669

BOOM STEP W/ 3.4'' (86,4 mm) mtg hole surface

4

84G3712

BOLT 5

5

6718066

HOSE .5625'' thread & .75'' thread female ends - Use (2) per tilt cylinder W/.5625'' thread base end fitting

5

6718066

HOSE .5625'' thread & .75'' thread female ends - Use (1) per tilt cylinder W/.75'' thread base end fitting

6

6716061

TEE

7

7116564

HOSE Was 7104132 - A

8

6718238

BRACKET

9

59D8

NUT 5

10

17C628

BOLT

11

6701893

CLAMP

12

27E6

WASHER 5

13

6553709

WASHER

14

59D6

NUT

15

6718030

TUBE

16

6725337

TUBE

17

6719439

HOSE

18

6717933

CLAMP

19

6727702

TUBE See Illustration MANUAL LIFT RELEASE SYSTEM/ PE1492R

20

6726168

TUBE

21

6719424

TEE

21

97K6

O RING flared end

21

97K8

O-RING flared end

22

TEE NLA - W/Ref. 36 - tapered boss face - Was 21KN00007B - A

22

97K10

O-RING 10 flared end

22

21KB1010

FITTING, HYD TEE W/Ref. 36 - flat boss face

23

6726166

TUBE

24

6727644

TUBE

25

6730201

TUBE Was 6726169 - C

26

6726172

TUBE

27

6726171

TUBE

28

872229

WASHER

29

35C616

BOLT 5

30

17C620

BOLT

31

36K8

CAP

32

619021

WASHER, 5

33

ADAPTER NLA - W/Ref. 36 - tapered boss face - Was 15KV00007B - A

33

97K10

O-RING 10 flared end

33

15KB1010

FITTING, HYD CONNECTOR W/Ref. 36 - flat boss face

34

36K5

CAP

35

36K7

FITTING

36

99K10

O'RING tapered boss face

36

79K10

O RING 10 flat boss face

37

VALVE See Illustration HYDRAULIC CONTROL VALVE/ B17144

38

6726253

MOUNT

39

59D5

NUT 5

40

83D6

NUT 5

41

84G3724

BOLT

42

17C540

BOLT

43

6624289

STRAP, TIE

44

ELBOW NLA - W/1.0'' Nut - W/Ref. 36 - tapered boss face - Was 6727639 - A

44

6814531

ELBOW W/1.0625'' Nut -W/Ref. 36 - flat boss face

45

ELBOW NLA - W/Ref. 36 - flat boss face - Was 6715716 - A

45

97K8

O-RING flared end

45

17KB0810

FITTING, HYD ELBOW W/Ref. 36 - flat boss face

46

ELBOW NLA - tapered boss face - Was 77FN00007B - A

46

77F7

ELBOW flat boss face

47

84G3720

BOLT

48

6727707

CLAMP

49

6727638

TEE

49

97K6

O RING flared end

49

97K8

O-RING flared end

50

6737648

HOSE See Illustration HYDROSTATIC CIRCUITRY/ PE1477 TO REF. 6 - WAS 6725436 - A

51

225855

SEAL, OIL 10 38 mm (1.5'') OD

52

7116565

HOSE Was 7104133 - A

53

6727703

HOSE available only as an assembly W/two danger decals installed

53

6809511

DECAL, DANGER

54

6727705

HOSE available only as an assembly W/two danger decals installed

54

6809511

DECAL, DANGER

54

79K8

O RING 10

55

84G3728

BOLT

56

6727708

CLAMP

57

6726167

TUBE

58

ADAPTER NLA - W/Ref. 59 - tapered boss face - Was 15KV00008B - A

58

97K12

O'RING flared end

58

15KB1212

FITTING, HYD CONNECTOR W/Ref. 59 - flat boss face

59

99K12

O RING tapered boss face

59

79K12

O RING 10 flat boss face

60

7114236

HOSE .75'' thread female ends - Use (1) per tilt cylinder W/.75'' thread base end fitting
