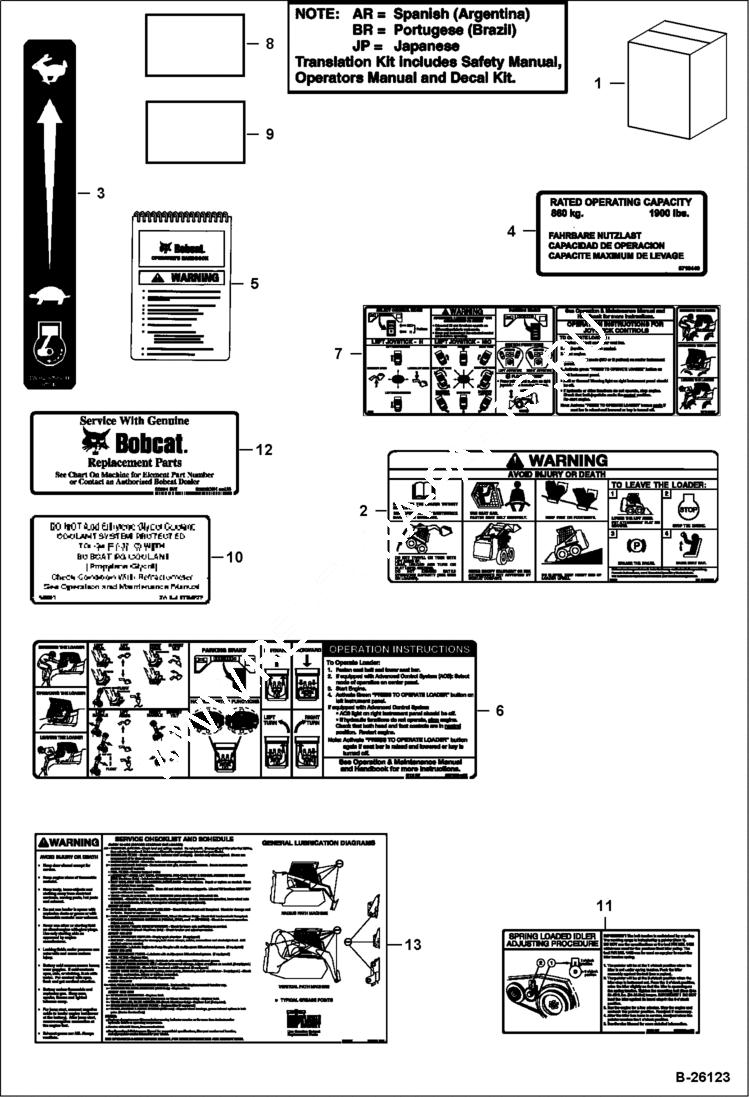

Запчасти Bobcat T-Series DECALS (Inside) ACCESSORIES & OPTIONS

1

6986501

KIT, DECAL

1

7120285AR

KIT, DECAL decal

1

7120285BR

KIT, DECAL decal

1

7120285JP

KIT, DECAL decal

1

7163301AR

KIT, DECAL

1

7163301BR

KIT, DECAL

1

7163301JP

KIT, DECAL

1

7120284AR

KIT, TRANSLATION T190 SPANISH translation

1

7120284BR

KIT, TRANSLATION T190 PORTUGUESE translation

1

7152191AR

KIT, TRANSLATION

1

7152191BR

KIT, TRANSLATION

2

6728540

DECAL, WARNING

2

6735255

DECAL, WARNING selectable joystick controls - not in kit

3

6735140

DECAL, THROTTLE

4

7184775

DECAL, CAPACITY LIFT Was 6710449 - A

5

6902808

HANDBOOK, OPERATOR'S W/WIRE ROPE not in kit - Was 6728607 - A

5

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve

5

6558310

SLEEVE wire rope

5

17C512

BOLT 5

5

61D5

NUT

5

84G3112

BOLT 5

6

6727926

DECAL, OPERATION hand & foot controls - not in kit

7

6735256

DECAL, OPERATION seat & seat bar operation - selectable joystick controls - not in kit

8

6553976

SAFETY TREAD 127 x 203 mm (5 x 8'')

9

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

10

6708929

DECAL, COOLANT propylene glycol

11

6709030

DECAL belt tension - spring loaded idler

12

6565200

DECAL, FILTER not in kit

13

6734534

DECAL, SERVICE service checklist & schedule - Was 7124877 - A
