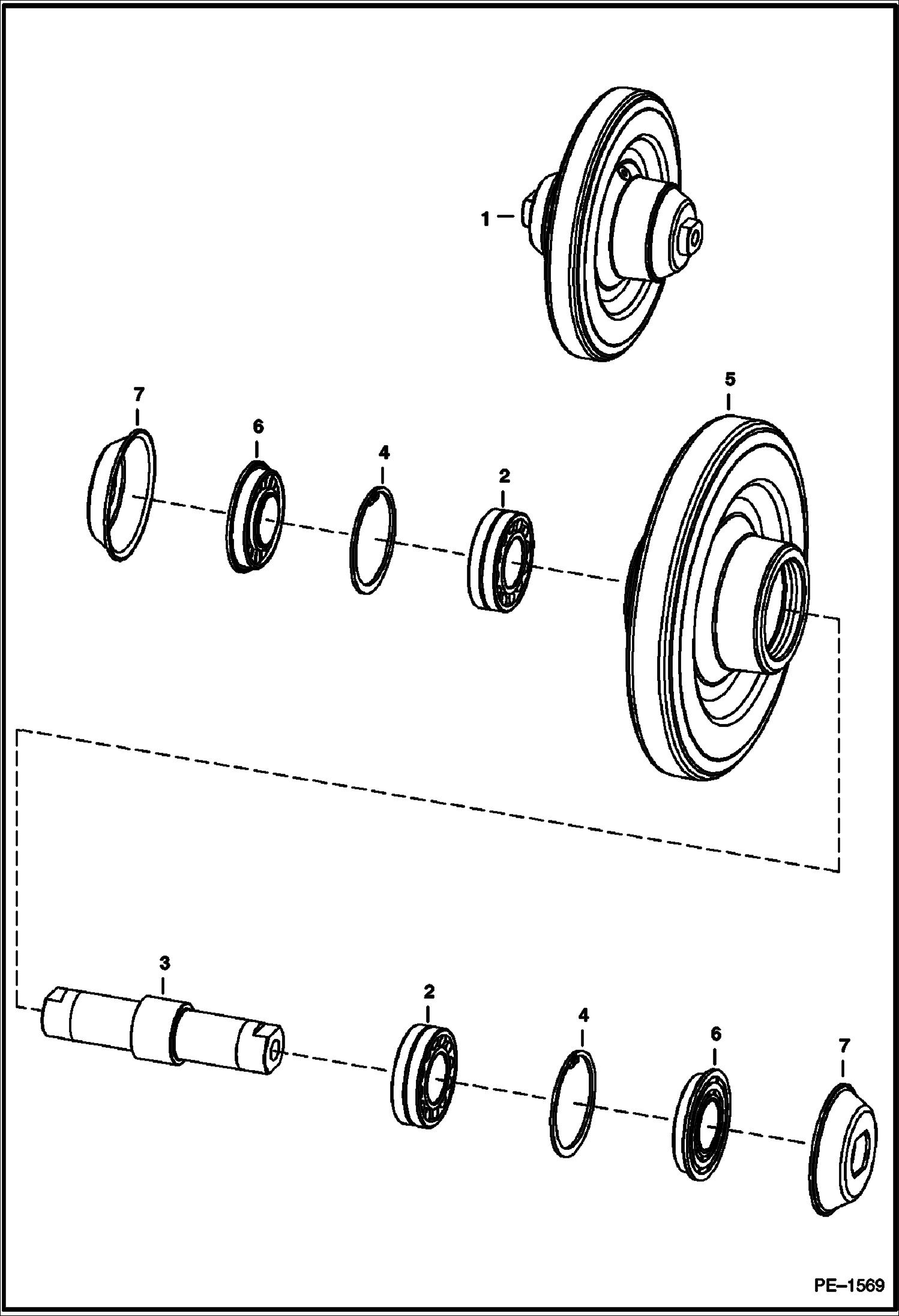

Запчасти Bobcat T-Series REAR IDLER (S/N 5193 13369 & Abv, 5194 12090 & Abv, 5270 11001 & Abv) (5279 11001 & Abv) DRIVE TRAIN

1

IDLER ASSY See Illustration REAR IDLER/ PE2555 NLA - rear - W/Ref. 2-7 - Order 6686635 - Was 6732903

2

BEARING NLA - Order 6686728 (2), Also Order Ref. 3 (7108790 shaft) - Was 6679884 - A

2

6686728

BEARING

3

AXLE NLA - 1.97'' dia. shaft - Order 7108790, also Order Ref. 2 (6686728 (2) bearing) - Was 6732876 - A

3

7108790

AXLE 1.73'' dia. shaft

4

7JM80

SNAP RING

5

IDLER NLA - Order 6693238 - Was 6732906 - A

6

6679882

SEAL, OIL

7

6730228

COVER seal
