Запчасти Bobcat T-Series FUEL CAMSHAFT POWER UNIT

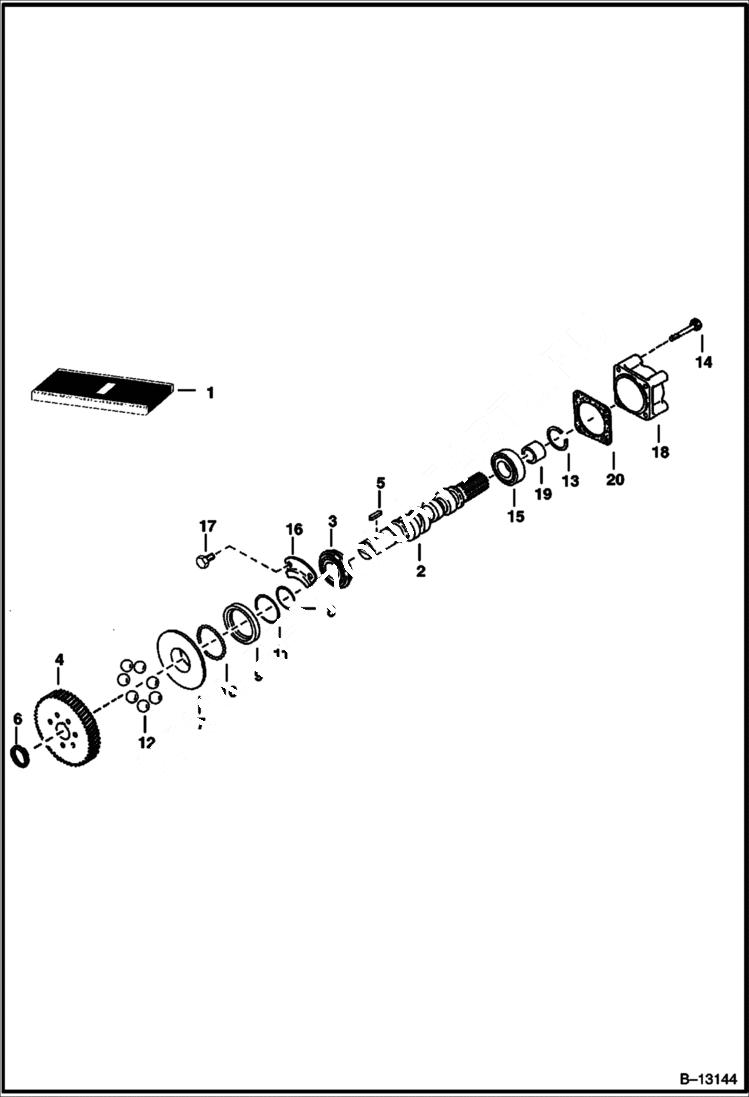

Схема запчастей Bobcat T-Series - FUEL CAMSHAFT POWER UNIT

Артикул

Название

Примечание

Количество

1

CAMSHAFT, FUEL NLA - Ref. 2-14 - Order 7009539 fuel camshaft & 5JM25 circlip - 7009506

1

CAMSHAFT, FUEL NLA - Ref. 2-14 - Order 7009539 fuel camshaft & 5JM25 circlip - 7009538

1

7009539

CAMSHAFT, FUEL Ref. 2-14

1

7010013

CAMSHAFT, FUEL Ref. 2-14

2

CAMSHAFT NLA - fuel - Order Ref. 1

3

6686036

BALL BEARING

3

6698110

BEARING, BALL

4

6686039

GEAR injection pump

5

6598099

KEY

6

5JM24

CIRCLIP external

7

6655213

SLEEVE governor

8

3974618

CIR-CLIP sleeve

9

6692385

CASE governor ball

10

6969817

BALL Was 10J5 - A

11

3974620

CIR-CLIP ball case

12

6655215

BALL

13

6598158

CIRCLIP external

13

5JM25

CIR-CLIP

14

6651934

BOLT

15

6686042

BEARING, BALL

16

6686047

STOPPER fuel camshaft

17

6667420

BOLT

18

3974996

COVER fuel camshaft

19

6686041

COLLAR

20

6692386

GASKET Was 6684813 - A

Выбрано товаров: 25
