Запчасти Bobcat T-Series TRACK ROLLER (S/N 5193 13368 & Bel, 5194 12089 & Bel) DRIVE TRAIN

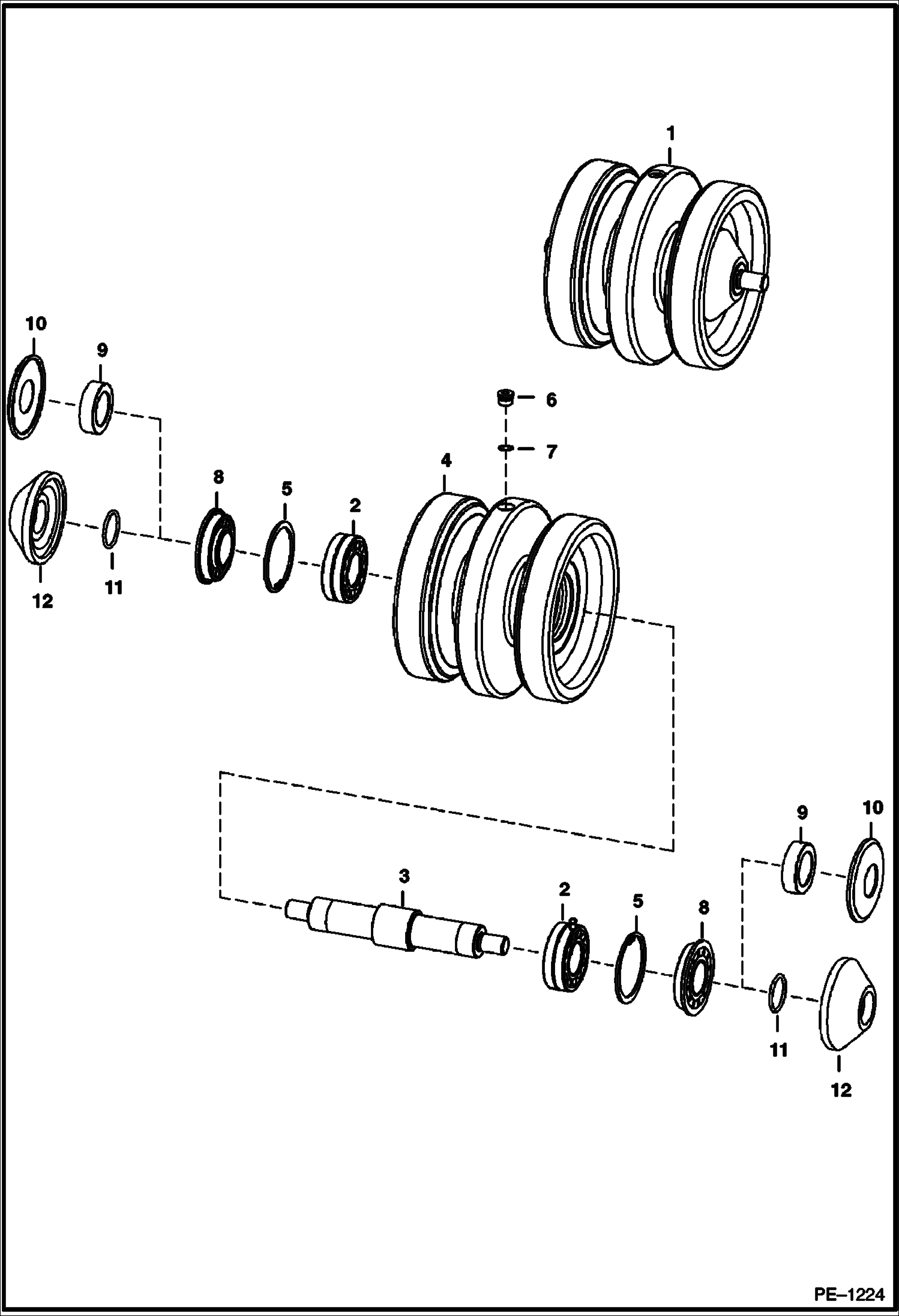

Схема запчастей Bobcat T-Series - TRACK ROLLER (S/N 5193 13368 & Bel, 5194 12089 & Bel) DRIVE TRAIN

Артикул

Название

Примечание

Количество

1

ROLLER ASSY See Illustration TRACK ROLLER/ PE1570 NLA - W/REF. 2 - 8 - ORDER 6732901 ROLLER ASSY - WAS 6715766 - A

2

BEARING See Illustration TRACK ROLLER/ PE1570 NLA - ORDER 6732874 AXLE & (2) OF 6679883 BEARING - WAS 6673212 - A

3

AXLE See Illustration TRACK ROLLER/ PE1570 NLA - SHAFT - W/1.168'' THREADED ENDS - USE W/REF. 11 & 10 - ORDER 6732874 AXLE & (2) OF 6679883 BEARING - WAS 6715750 - A

3

3

AXLE See Illustration TRACK ROLLER/ PE1570 NLA - SHAFT - W/1.272'' THREADED ENDS - USE W/REF. 9 & 12 - ORDER 6732874 AXLE & (2) OF 6679883 BEARING - WAS 6730968 - A

3

4

ROLLER See Illustration TRACK ROLLER/ PE1570 NLA - ORDER 6732901 ROLLER ASSY. - WAS 6717691 - A

5

7JM72

SNAP RING

6

PLUG NLA - W/Ref. 7 - tapered boss face - Was 90KV00005B - A

6

90K6

PLUG W/Ref. 7 - flat boss face

7

95K6

O'RING tapered boss face

7

75K6

O-RING flat boss face

8

6679881

SEAL, OIL Was 6725082 - A

9

SPACER NLA - Not required for service - Was 6730781 - A

9

10

6729165

COVER

10

6729165

COVER

11

25K40112

O RING 10 Was 25K030118B - B

11

25K40112

O RING 10

12

6730229

COVER seal

12

6730229

COVER

Выбрано товаров: 21
