Запчасти Bobcat T-Series FRONT IDLER (S/N 5193 13368 & Bel, 5194 12089 & Bel) DRIVE TRAIN

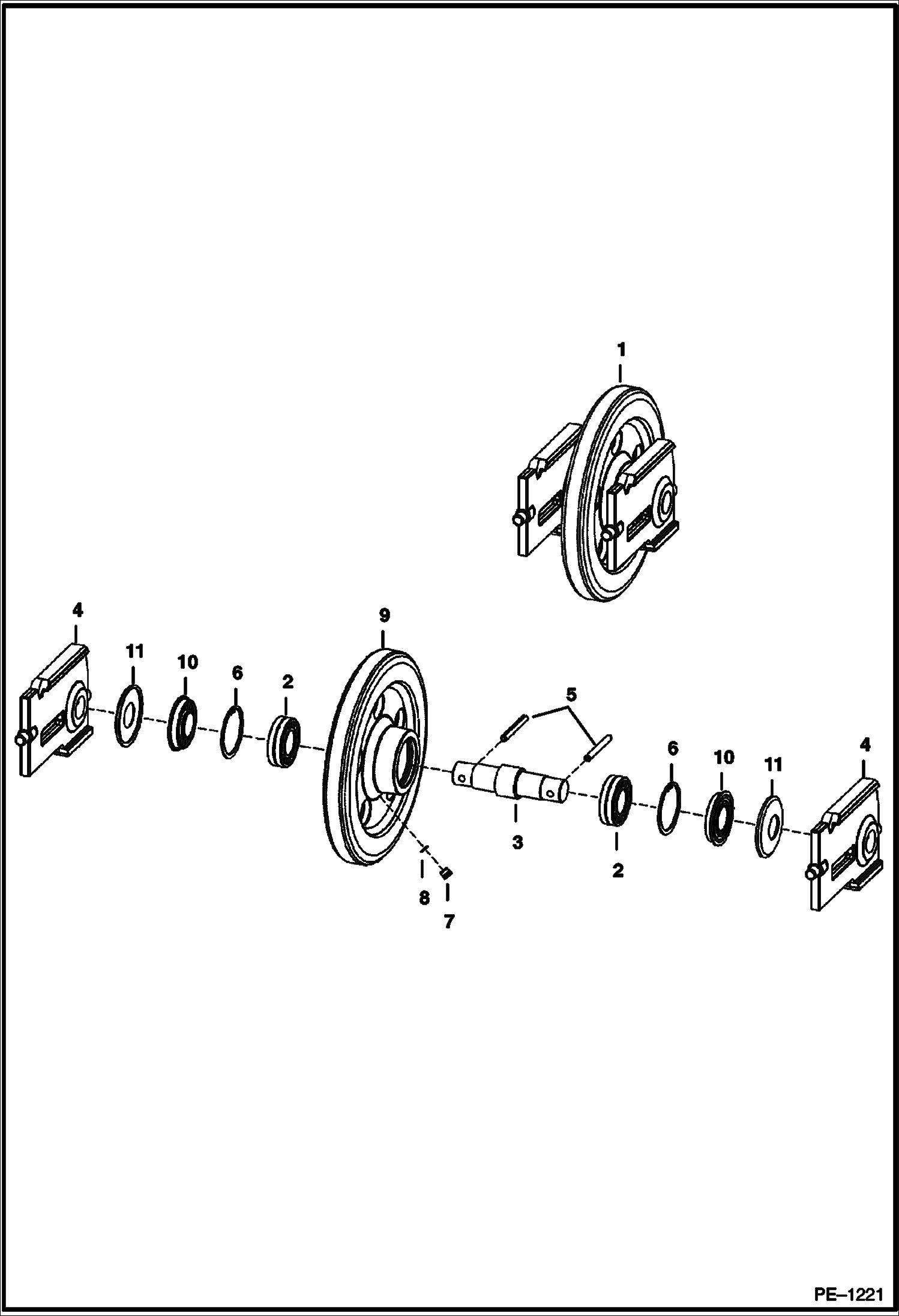

Схема запчастей Bobcat T-Series - FRONT IDLER (S/N 5193 13368 & Bel, 5194 12089 & Bel) DRIVE TRAIN

Артикул

Название

Примечание

Количество

1

IDLER ASSY See Illustration FRONT IDLER/ PE1692 NLA - FRONT - REF. 2-10 - ORDER 6732902 IDLER ASSY - WAS 6715764 - A

2

BEARING See Illustration FRONT IDLER/ PE1692 NLA - ORDER 7108789 AXLE & (2) OF 6686728 BEARING - WAS 6672952 - A

3

AXLE See Illustration FRONT IDLER/ PE1692 NLA - SHAFT - ORDER 7108789 AXLE & (2) OF 6686728 BEARING - WAS 6715749 - A

4

BRACKET NLA - Order 6730967 Bracket & Ref. 11 - Was 6715759 - A

4

4

6730967

BRACKET Use W/Ref. 11

4

6730967

BRACKET

4

6730967

BRACKET

5

2JM1090

ROLL PIN

6

7JM80

SNAP RING

7

PLUG NLA - W/Ref. 8 - tapered boss face - Was 90KV00005B - A

7

90K6

PLUG W/Ref. 8 - flat boss face

8

95K6

O'RING tapered boss face

8

75K6

O-RING flat boss face

9

IDLER See Illustration FRONT IDLER/ PE1692 NLA - ORDER 6732902 IDLER ASSY. - WAS 6717694 - A

10

6679882

SEAL, OIL Was 6725083 - A

11

6730227

COVER seal

11

6730227

COVER

Выбрано товаров: 18
