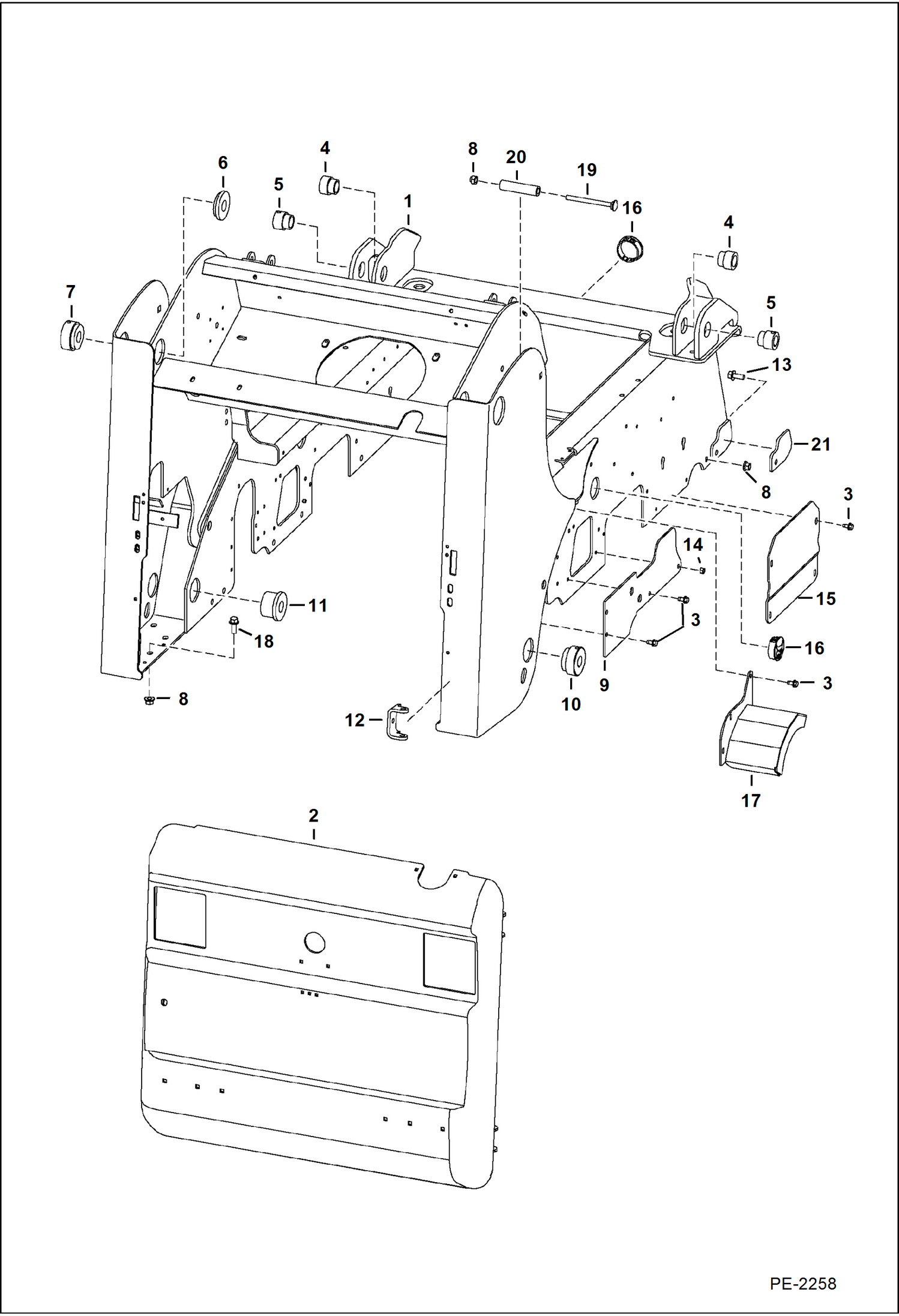

Запчасти Bobcat T-Series MAIN FRAME MAIN FRAME

1

MAIN FRAME NLA - Order 7141836 mainframe, 7132554 hose, 7132542 tubeline, 7136052 mount, 7141653 plate & 7102656 hose - Was 6733002 - A

1

MAIN FRAME NLA - Order 7141836 mainframe, 7132554 hose, 7132542 tubeline, 7136052 mount & 7141653 plate - Was 7103783 - A

2

6729991

REAR DOOR See Illustration REAR DOOR/ PE1413R

3

84G3712

BOLT 5

4

6717278

BUSHING, WELD-ON

5

6717277

BUSHING, WELD-ON weld on

6

6717356

BUSHING, WELD-ON weld on

7

6731578

BUSHING, WELD-ON

8

83D8

NUT 5

9

6726063

SHIELD lever

10

6731578

BUSHING, WELD-ON

11

6717358

BUSHING WELD-ON weld on

12

6708987

HINGE, WELD-ON

13

31C820

BOLT

14

61D6

NUT 5

15

6719201

COVER

16

6718796

PLUG

17

6726064

SHIELD RH R.H. - B stamp - Was 7115591 - B,D

17

7114007

SHIELD, W/A RH RH - 16'' (400 mm) wide - Bridgestone - wide track option

17

6726065

SHIELD L.H. - B stamp - Was 7115592 - B,D

17

7114006

SHIELD, W/A LH LH - 16'' (400 mm) wide - Bridgestone - wide track option

18

31C828

BOLT

19

37C888

BOLT

20

6732225

SPACER tube

21

7141656

PLATE, WELD-ON weld-on
