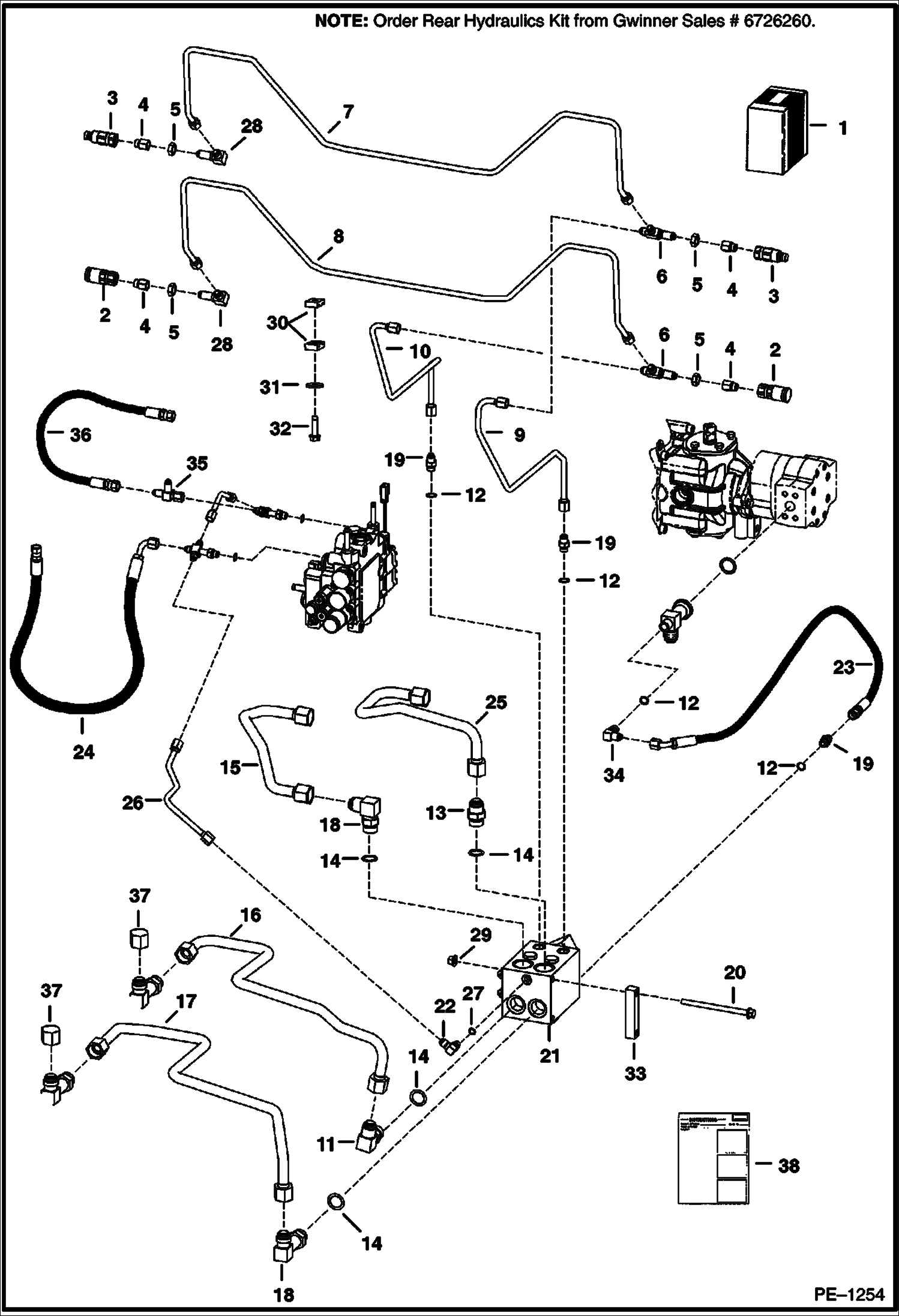

Запчасти Bobcat T-Series REAR AUXILIARY (S/N 5193 12091 & Bel, 5194 11186 & Bel) ACCESSORIES & OPTIONS

1

6726260

KIT Ref. 2 - 34, 37 & 38 - If loader is equipped W/Power Bob-Tach Option, also Order Ref. 35 & 36 - Was 6826260 - D

2

6667803

COUPLER, FF FEMALE

3

6667804

COUPLER, FF MALE

3

6669657

SEAL KIT

4

6706633

ADAPTER

5

86F5

NUT

6

91K5

TEE Was 6719298 - A

7

6726273

TUBE

8

6726272

TUBE

9

6726268

TUBE

10

6726267

TUBE

11

6716443

ELBOW W/Ref. 14 - check boss face to determine correct replacement O-ring

11

97K6

O RING flared end

12

99K6

O RING tapered boss face

12

79K6

O RING 10 flat boss face

13

ADAPTER NLA - W/Ref. 14 - tapered boss face - Was 15KV00008B - A

13

97K12

O'RING flared end

13

15KB1212

FITTING, HYD CONNECTOR W/Ref. 14 - flat boss face

14

99K12

O RING tapered boss face

14

79K12

O RING 10 flat boss face

15

6726264

TUBE

16

6726266

TUBE

17

6726265

TUBE

18

ELBOW NLA - W/Ref. 14 - tapered boss face - Was 17KV00008B - A

18

97K12

O'RING flared end

18

17KB1212

FITTING, HYD ELBOW W/Ref. 14 - flat boss face

19

ADAPTER NLA - W/Ref. 12 - Was 15KV00005B - A

19

97K6

O RING flared end

19

15KB0606

FITTING, HYD CONNECTOR W/Ref. 12 - flat boss face

20

35C688

BOLT

21

6675073

VALVE, AUX REAR See Illustration REAR AUXILIARY VALVE/ TS1362

22

ELBOW NLA - W/Ref. 27 - tapered boss face - Was 6718182 - A

22

97K6

O RING flared end

22

17KB0604

ELBOW UNION W/Ref. 27 - flat boss face

23

6718208

HOSE

24

6714808

HOSE

25

6726263

TUBE

26

6726269

TUBE

27

99K4

O'RING tapered boss face

27

79K4

O RING 10 flat boss face

28

ELBOW NLA - W/ flared end O-rings - Was 88FN00005B - A

28

97K6

O RING flared end

28

88F5

ELBOW W/O flared end O-rings

29

83D6

NUT 5

30

6578870

CLAMP Was 6726277 - A

31

619021

WASHER, 5

32

84G3724

BOLT

33

6726293

SPACER BLOCK

34

ELBOW NLA - W/Ref. 12 - tapered boss face - Was 17KV00005B - A

34

97K6

O RING flared end

34

17KB0606

FITTING W/Ref. 12 - flat boss face

35

TEE See Illustration POWER BOB-TACH KIT/ PE1623R NLA - W/ FLARED END O-RINGS - USED W/POWER BOB-TACH OPTION - NOT IN KIT - WAS 13KN00005B - A

35

13K5

TEE See Illustration POWER BOB-TACH KIT/ PE1623R W/O FLARED END O-RINGS - USED W/POWER BOB-TACH OPTION - NOT IN KIT

36

6535451

HOSE See Illustration POWER BOB-TACH KIT/ PE1623R USED W/POWER BOB-TACH OPTION - NOT IN KIT

37

36K5

CAP

38

6901098

INSTRUCTIONS
