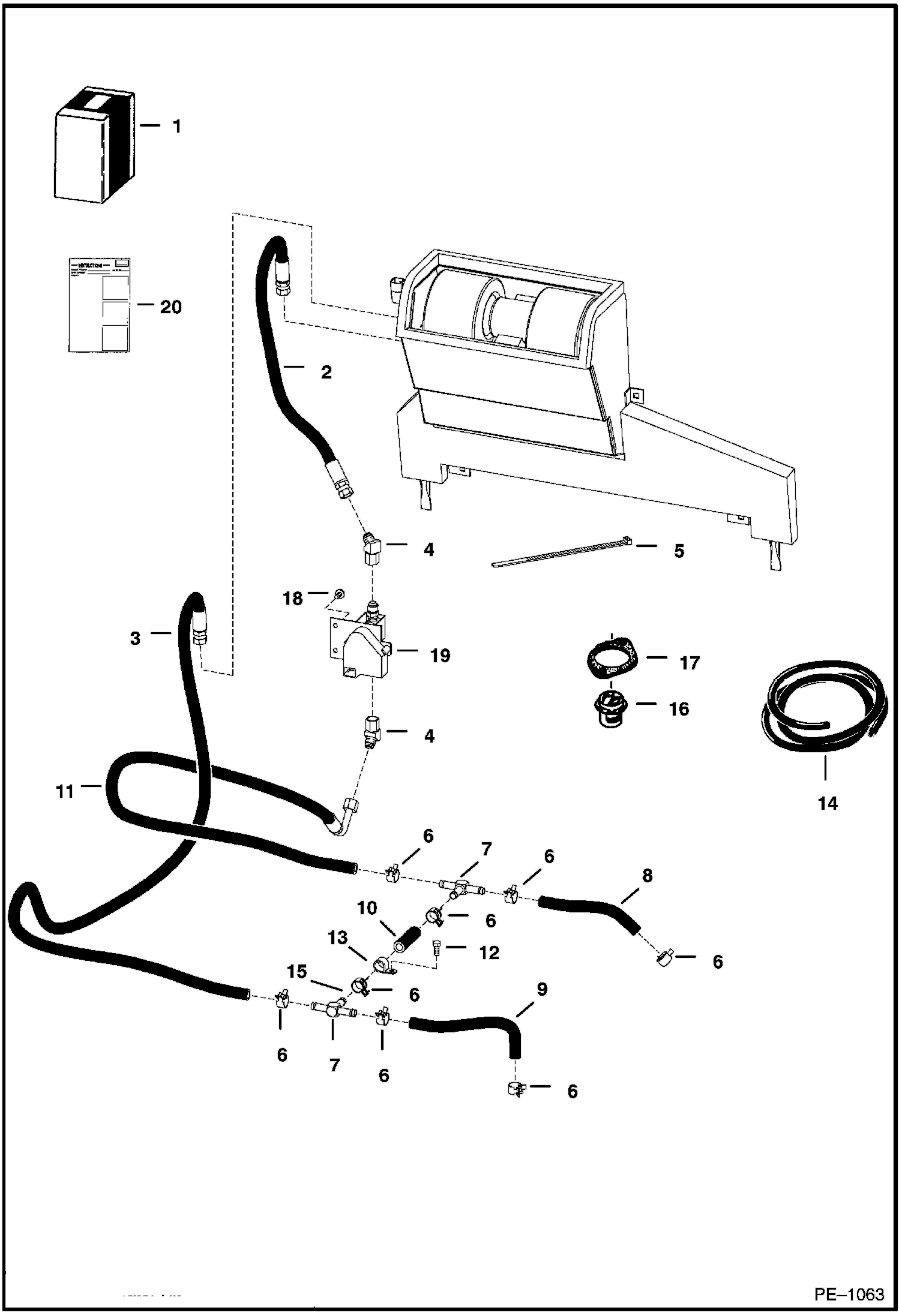

Запчасти Bobcat T-Series HEATER & A/C (Heater Plumbing Kit) (S/N 5193 11885 & Bel, 5194 11160 & Bel) ACCESSORIES & OPTIONS

1

KIT See Illustration HEATER & A/C/ PE1414 See Illustration HEATER & A/C/ PE1500 See Illustration ENGINE & ATTACHING PARTS/ PE1059R NLA - REF. 2 - 17 - ORDER Components & 6730999 TUBE - FOR HEATER KIT

2

6719144

HOSE 34''(863,6 mm) long - W/spring guard - Ref. 20 Instructs to replace Ref. 19 when replacing Ref. 2

3

6719080

HOSE W/spring guard

4

ELBOW NLA - W/ flared end O-ring - Was 12KN00006B - A

4

96K8

O-RING flared end

4

12K8

ELBOW W/O flared end O-rings

5

6624289

STRAP, TIE

6

5HM20

CLAMP hose

7

6718578

TEE

8

HOSE NLA - 8.3''(210,8 mm) long - Order Ref. 14

9

HOSE NLA - 10.5''(266,7 mm) long -Order Ref. 14

10

HOSE NLA - 3''(76,2 mm) long - Order Ref. 14

11

6717987

HOSE

12

1CM820

BOLT

13

30H64

CLAMP insulated

14

6674905

HOSE bulk - Sold Per Foot

15

6592852

ORIFICE

16

6630184

THERMOSTAT

17

6732199

GASKET thermostat - Was 6666790 - A

18

17C512

BOLT 5 Not in Kit

18

95D5

NUT Not in Kit

19

VALVE NOT IN KIT - REF. 20 INSTRUCTS TO REPLACE REF. 19 WHEN REPLACING REF. 2

20

6900850

INSTRUCTIONS NOT IN KIT
