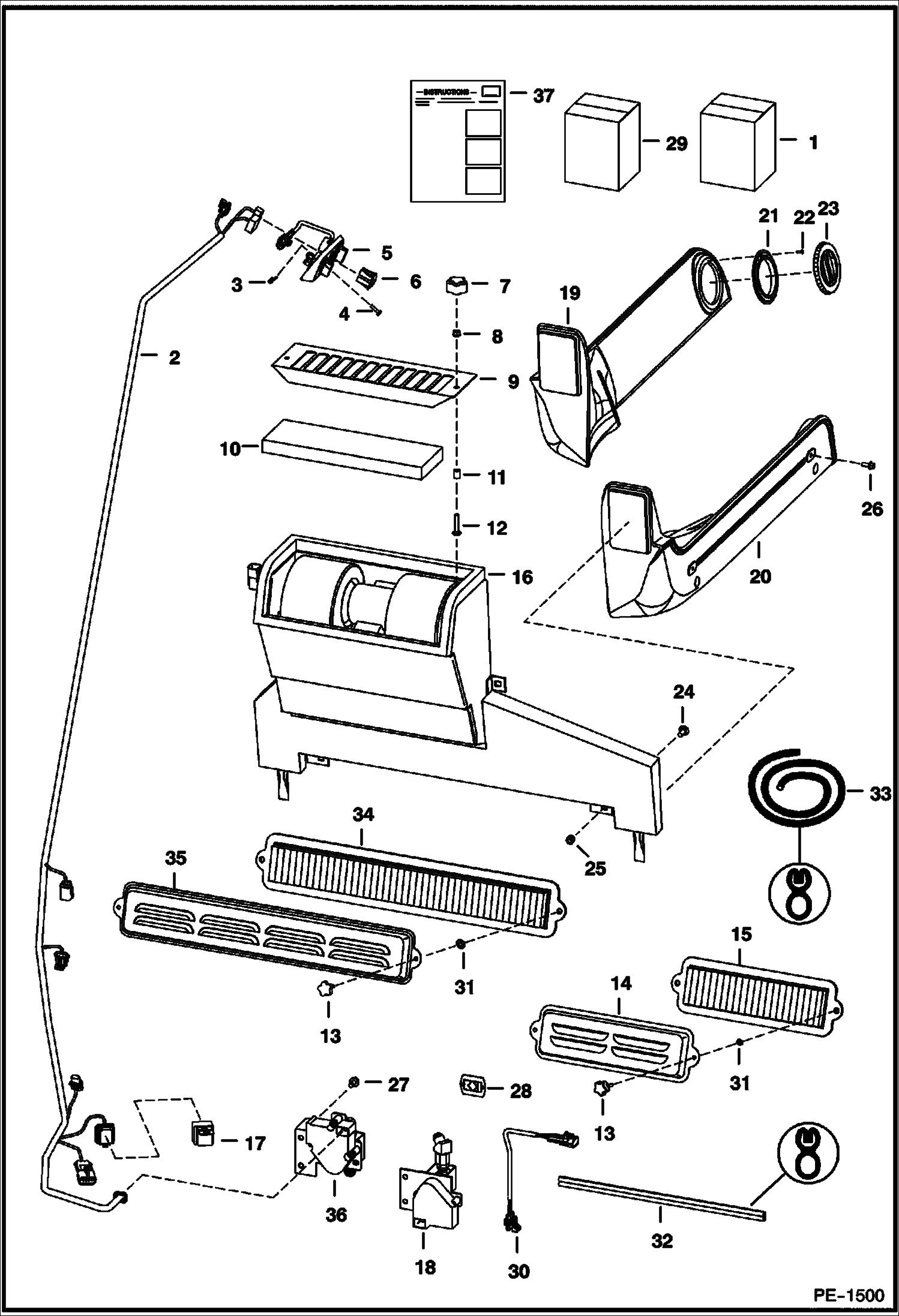

Запчасти Bobcat T-Series HEATER & A/C (Heater Kit) (For Threaded Heater Valve) ACCESSORIES & OPTIONS

1

HEATER KIT See Illustration HEATER & A/C/ PE2465 See Illustration OPERATOR CAB/ PE1539 See Illustration OPERATOR CAB/ PE2558 NLA - Ref. 2-13, 16-28 & 31-36 - If loader does not have Deluxe Cab Headlin

2

6725933

HARNESS hvac - W/Ref. 17

2

6725273

HARNESS AHC

3

6669091

CLIP retainer

4

6669224

BOLT

5

6674228

PANEL control

5

6640699

CONNECTOR

5

6718579

DECAL

5

6718887

PANEL A/C

5

6675176

SWITCH blower

5

6675177

KNOB

5

6675846

POTENTIOMETER

6

6675181

PLUG

7

6681614

KNOB Was 6674741 - A

8

83D4

NUT 10

9

6718175

SCREEN filter

10

6678207

FILTER recirculation - Was 6674229 - A

11

6718837

SPACER

12

37C424

BOLT

13

6726386

KNOB

14

6726608

COVER

15

6727140

FILTER, AIR HEATER CAB

16

6676562

HEATER See Illustration HEATER & A/C/ PE1143

17

6670312

SWITCH, MAGNETIC relay

18

VALVE NLA - order Ref. 36 - Was 7100019 - A

18

6640699

CONNECTOR

18

BRACKET NLA - Was 6675175 - A

18

6675172

BRACKET

18

6675173

ACTUATOR pig tail

18

6680054

ACTUATOR square plug

18

6675174

BODY

19

6735246

DUCT LH - Was 6717644 - A

20

6735245

DUCT RH - Was 6717643 - A

21

6675179

FLANGE

22

57G608

SCREW

23

6674231

VENT, HEATER CAB ROUND round

24

37C512

BOLT

25

59D5

NUT 5

26

35C410

BOLT 5

27

84G3110

SCREW

28

774220

NUT spring

29

7121572

DECAL PACKAGE decal - Was 6725513 - A

30

6725390

HARNESS Jumper

31

6676516

NUT push

32

SEAL NLA - 16.25 in. (412,8 mm) Long - Order Ref. 33

33

6513152

SEAL bulk - sold per foot

34

6677983

FILTER, AIR HEATER CAB

35

6727847

COVER

36

7100019

VALVE threaded hose connectors

37

6900850

INSTRUCTIONS

37

6902356

INSTRUCTIONS 800 Series W/ Kubota Engine
