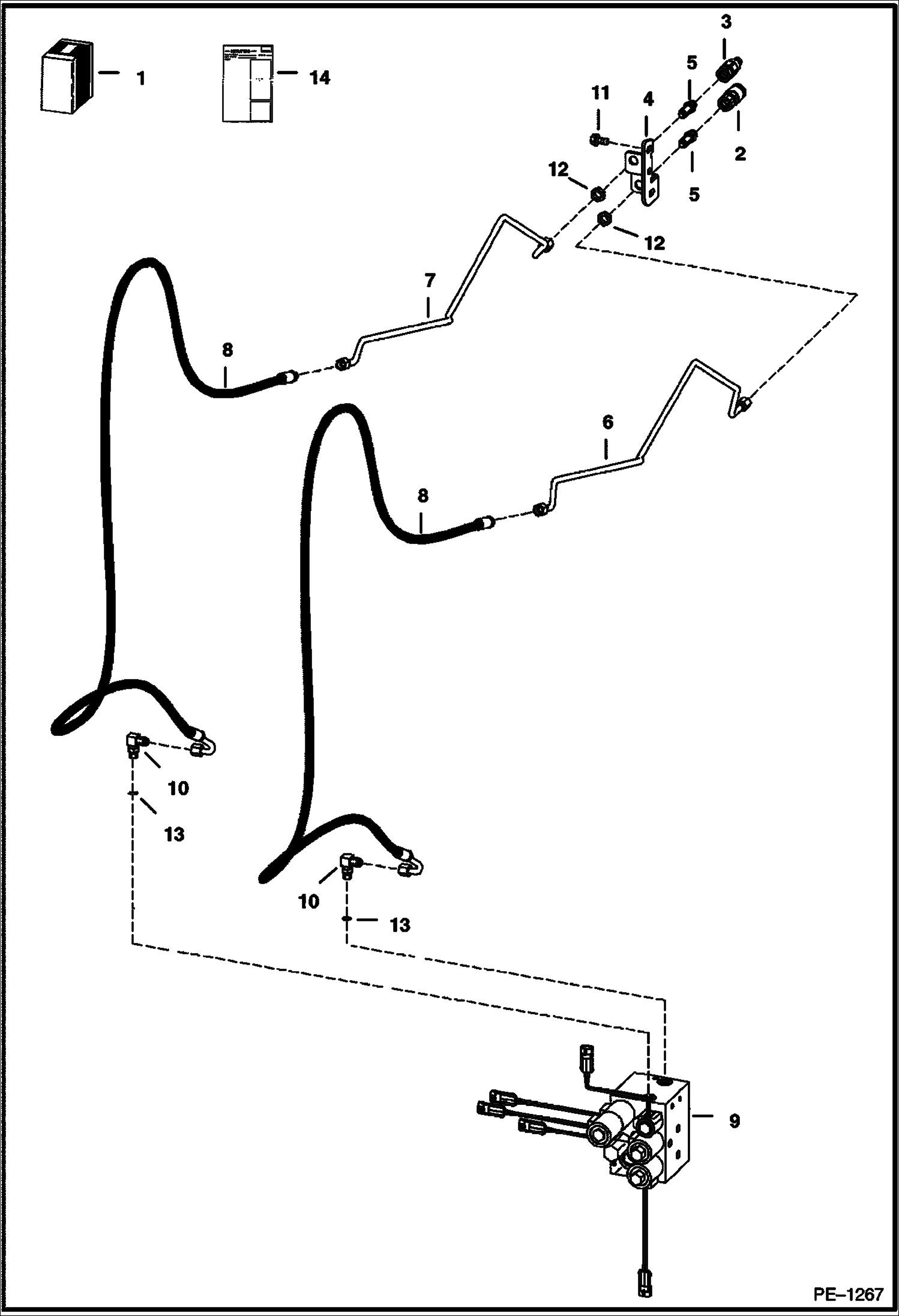

Запчасти Bobcat T-Series FRONT AUXILIARY (RH Kit) (519311762 & Above, 519411112 & Above, 527011001 & Abov, 527911001 & Abov) ACCESSORIES & OPTIONS

1

6731524

KIT

2

6667803

COUPLER, FF FEMALE

3

6667804

COUPLER, FF MALE

3

6669657

SEAL KIT

4

6711674

MOUNT

5

6716089

CONNECTOR W/ O-rings

6

6718244

TUBE

7

6718245

TUBE

8

6718454

HOSE

9

VALVE See Illustration REAR AUXILIARY VALVE/ TS1362 select - Not in Kit - Was 6669203 - D

10

ELBOW NLA - W/Ref. 13 - tapered boss face - Was 17KV00005B - A

10

97K6

O RING flared end

10

17KB0606

FITTING

10

21KB0606

FTG HYD STRAIGHT TEE

11

84G3712

BOLT 5

12

86F5

NUT

13

99K6

O RING Was 99K-10 - B

14

6901515

INSTRUCTIONS
