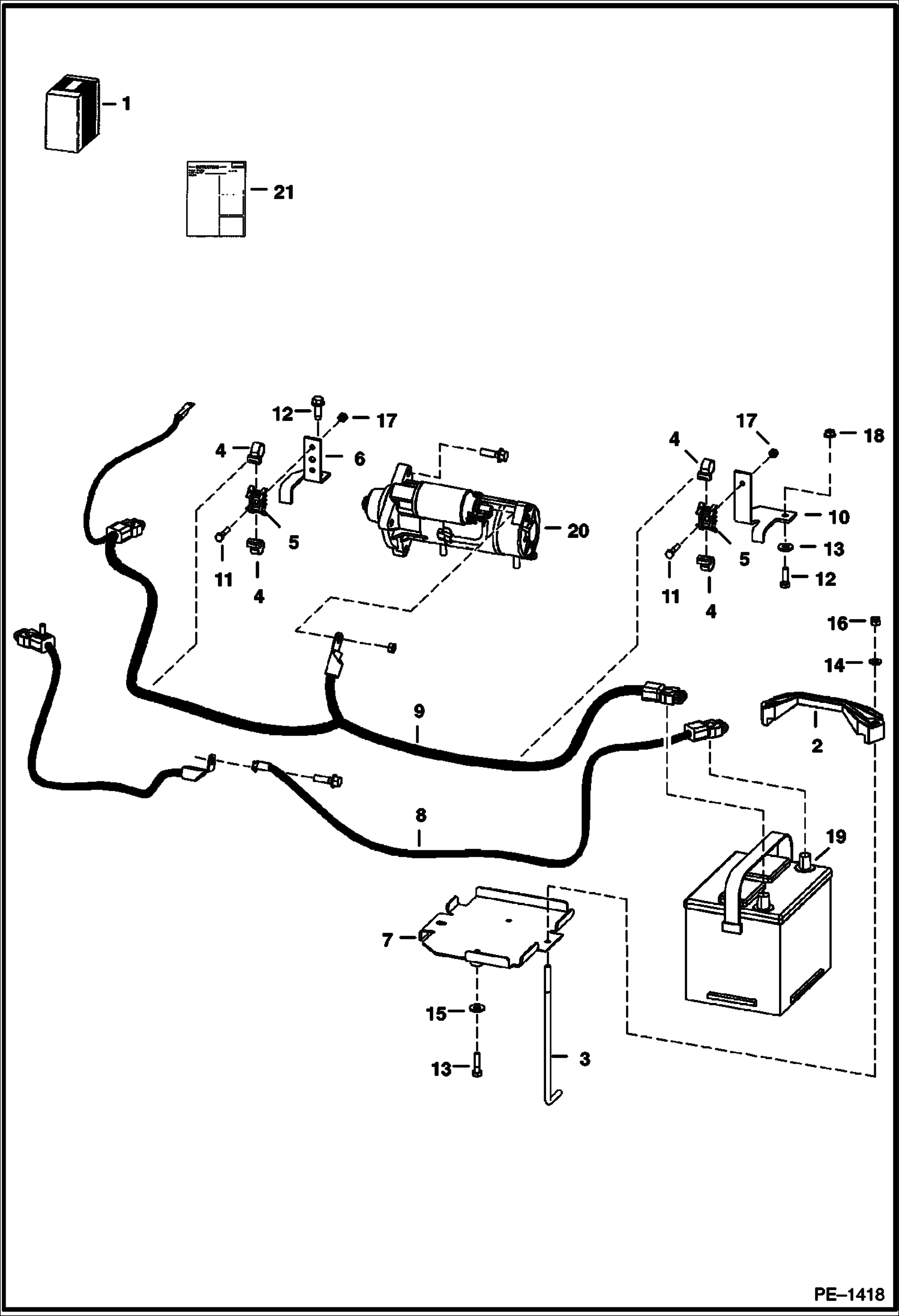

Запчасти Bobcat T-Series DUAL BATTERY KIT (W/ Starter) (S/N 5193 11885 & Bel, 5194 11160 & Bel) ACCESSORIES & OPTIONS

1

6731695

KIT See Illustration STARTER/ B16488R See Illustration OIL COOLER/ PE1455R See Illustration DUAL BATTERY KIT/ PE1417 DUAL BATTERY - REF. 2-18, 20 & 21 - IF LOADER IS EQUIPPED W/VALEO STARTER - ORDER 6

2

6569203

CLAMP

3

6576280

BOLT

4

6678669

STRAP

5

6678974

MOUNT

6

6715131

BRACKET Was 6727508 - A

7

6731617

PAN battery

8

6731665

CABLE negative

9

6731666

CABLE positive

10

6731746

BRACKET

11

17C420

BOLT

12

17C516

BOLT

13

17C520

BOLT 5

14

25E15

WASHER

15

25E16

WSHR

16

59D5

NUT 5

17

61D4

NUT 5

18

97D5

NUT

19

6670251

BATTERY, DRY 530 AMP not in kit

20

6685190

STARTER Was 6676957 - A

20

6685190EF

STARTER

21

6901603

INSTRUCTIONS
