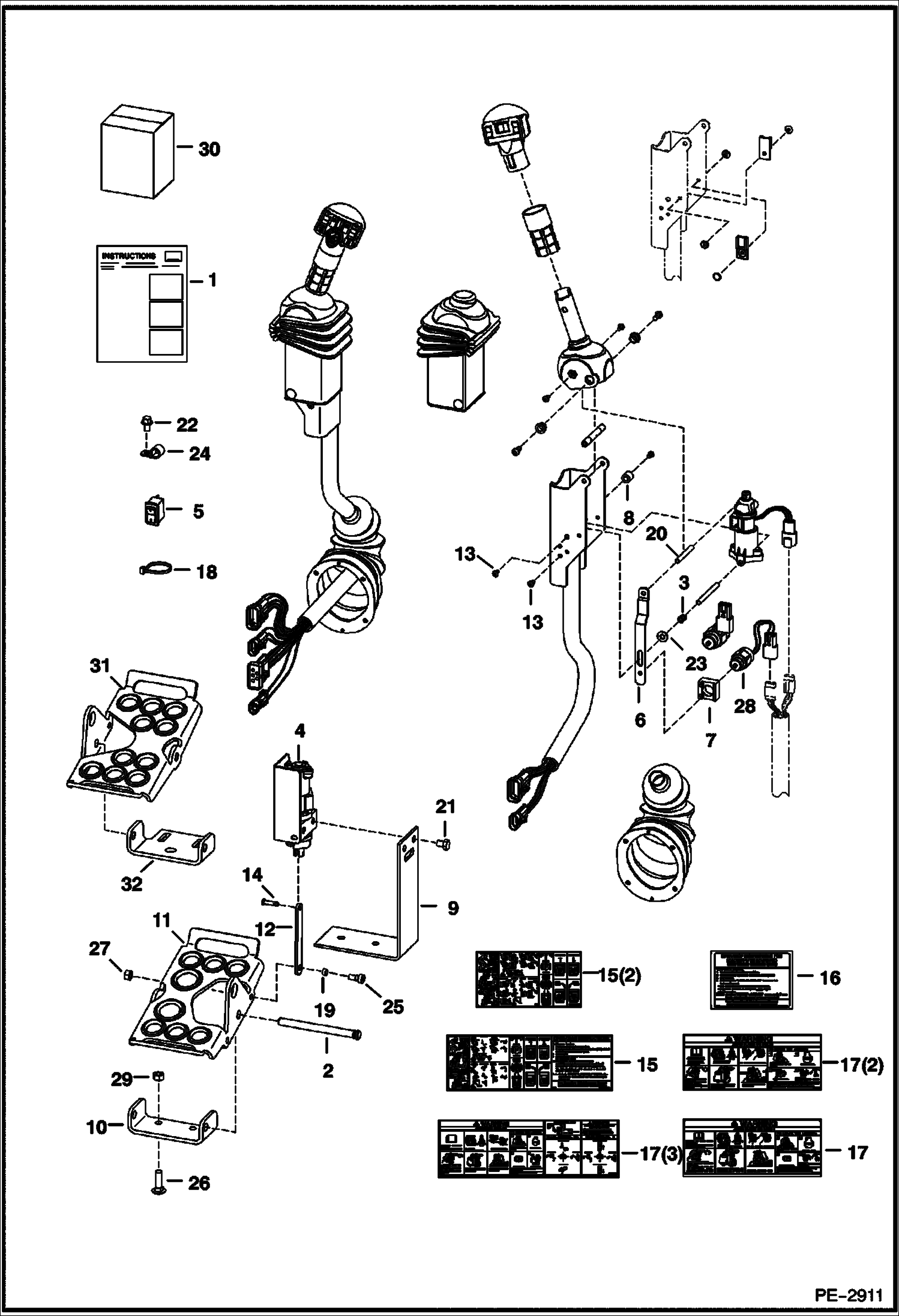

Запчасти Bobcat T-Series ACS CONVERSION KIT ACCESSORIES & OPTIONS

1

6731151

KIT foot control - Ref. 2-14 & 17-30 - loader must be equipped W/advanced hand control option

2

6564657

PIN

3

6680470

SPRING Was 6675745 - A

4

6684912

SENSOR, FOOT RH Was 6680420 - A

4

6676029

SOLENOID, LOCK SPOOL

4

6684911

SENSOR, FOOT LH Was 6680421 - A

4

6676029

SOLENOID, LOCK SPOOL

5

6676537

SWITCH

6

6680477

STRAP Was 6719715 - A

7

6680468

MOUNT solenoid - Was 6719716 - A

8

SPACER NLA - Was 6719835 - A

8

6719834

SPACER

9

7126869

BRACKET Was 6726573 - A

10

7115220

MOUNT W/round hole

11

PEDAL

12

6726681

LINK

13

6727065

BOLT

14

6727496

PIN

15

6727926

DECAL, OPERATION hand & foot controls

15

6728045

DECAL operations - T190, T200

16

DECAL NLA - ACS operations - Order Ref. 15 (6727926 Decal) - Was 6727941 - A

17

6728539

DECAL

17

6728540

DECAL, WARNING use for T190, T200

18

6624289

STRAP, TIE

19

6729467

SPACER

20

6680469

SPACER threaded - Was 6729600 - A

21

17C608

BOLT

22

84G3710

SCREW

23

25E13

WASHER 5

24

30H62

CLIP

25

35C514

BOLT Was 17C514 - B

26

37C620

BOLT

27

95D5

NUT

28

6676029

SOLENOID, LOCK SPOOL

29

61D6

NUT 5 Was 57D6 - B

30

6901492

INSTRUCTIONS Was 6901493 - B

31

PEDAL NLA - Order Ref. 11 - Was 6726680 - B

32

MOUNT NLA - W/slotted holes - Order Ref. 10 - Was 6726679 - B
