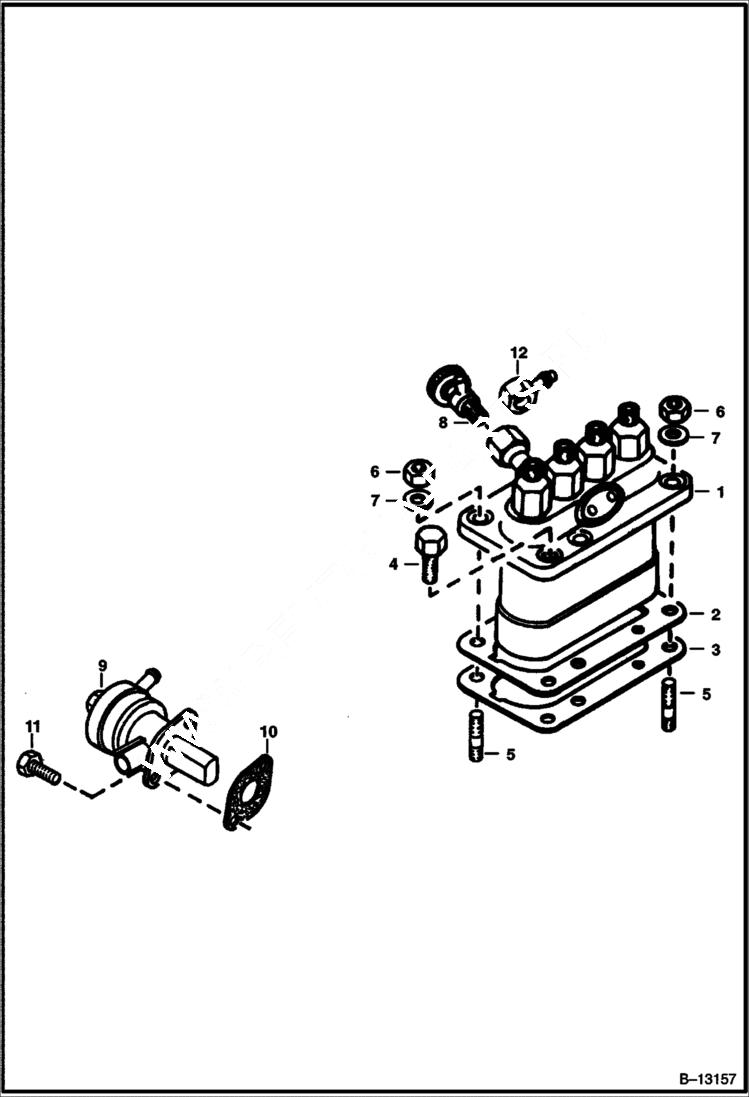

Запчасти Bobcat T-Series FUEL & INJECTION PUMP (Kubota - V2003T - Tier I) (S/N 5193 11001 & Abv, 5194 11001 & Abv) POWER UNIT

1

PUMP

2

3974626

SHIM 0,20 mm - injection pump

3

6655210

SHIM 0,30 mm - injection pump

4

4CM822

BOLT

5

6652670

STUD

6

6652792

NUT

7

6EM80

WASHER, SPRING

8

6598102

VALVE jet start

9

6655216

FUEL PUMP

10

3974502

GASKET fuel pump

11

1CM616

SCREW Was 4CM616 - A

12

6655515

JOINT See Illustration FUEL SYSTEM/ PE1030 EYE - CONNECTS TO REF. 11
