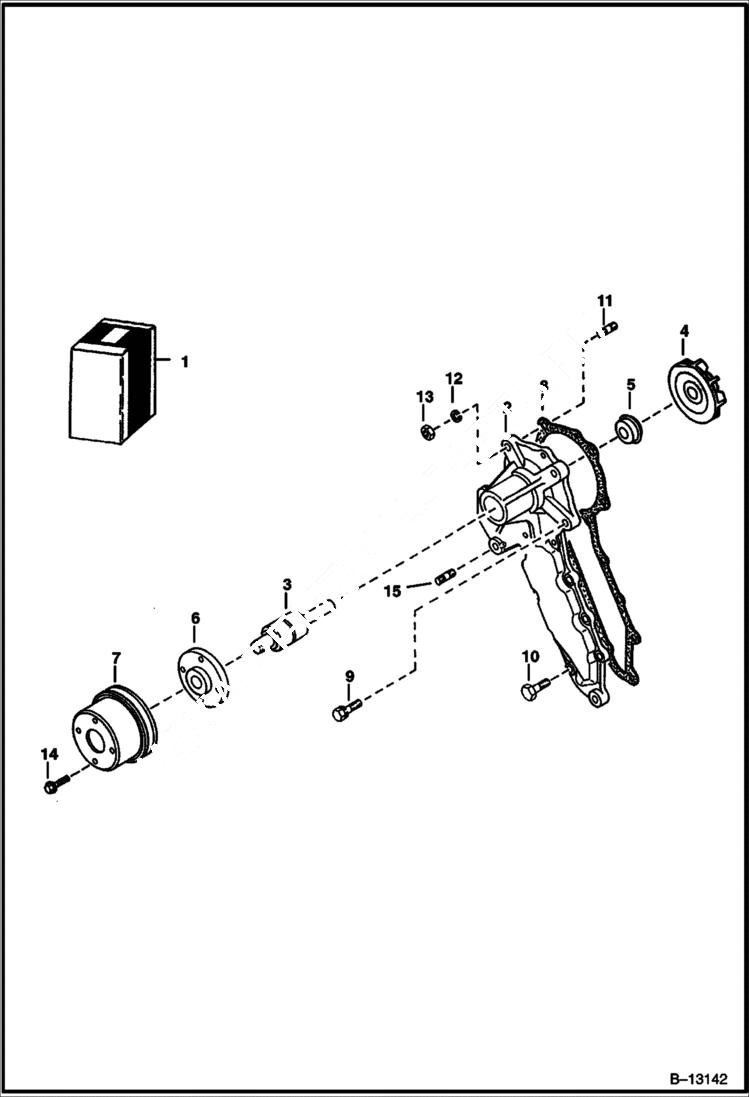

Запчасти Bobcat T-Series WATER PUMP (Kubota - V2003T - Tier I) (S/N 5193 11001 & Abv, 5194 11001 & Abv) POWER UNIT

1

WATER PUMP See Illustration OIL COOLER/ PE1713R NLA - REF. 2-6 - Order 6681879 pump & 6686081 hose - WAS 6675652 - A

1

6681879

WATER PUMP Ref. 2-6

2

BODY NLA

3

3974991

BEARING

4

6667460

IMPELLER for one piece seal Ref. 5

5

6667465

SEAL one piece

6

3974992

FLANGE

7

6674169

PULLEY water pump - Was 6598155 - A

8

6666804

GASKET

9

4CM828

BOLT

10

6652580

BOLT

11

3974267

STUD Was 6653946 - A

12

6EM80

WASHER, SPRING

13

6652792

NUT

14

29CM612

BOLT, FLANGED Was 6652762 - A

15

6683174

ROLL PIN
