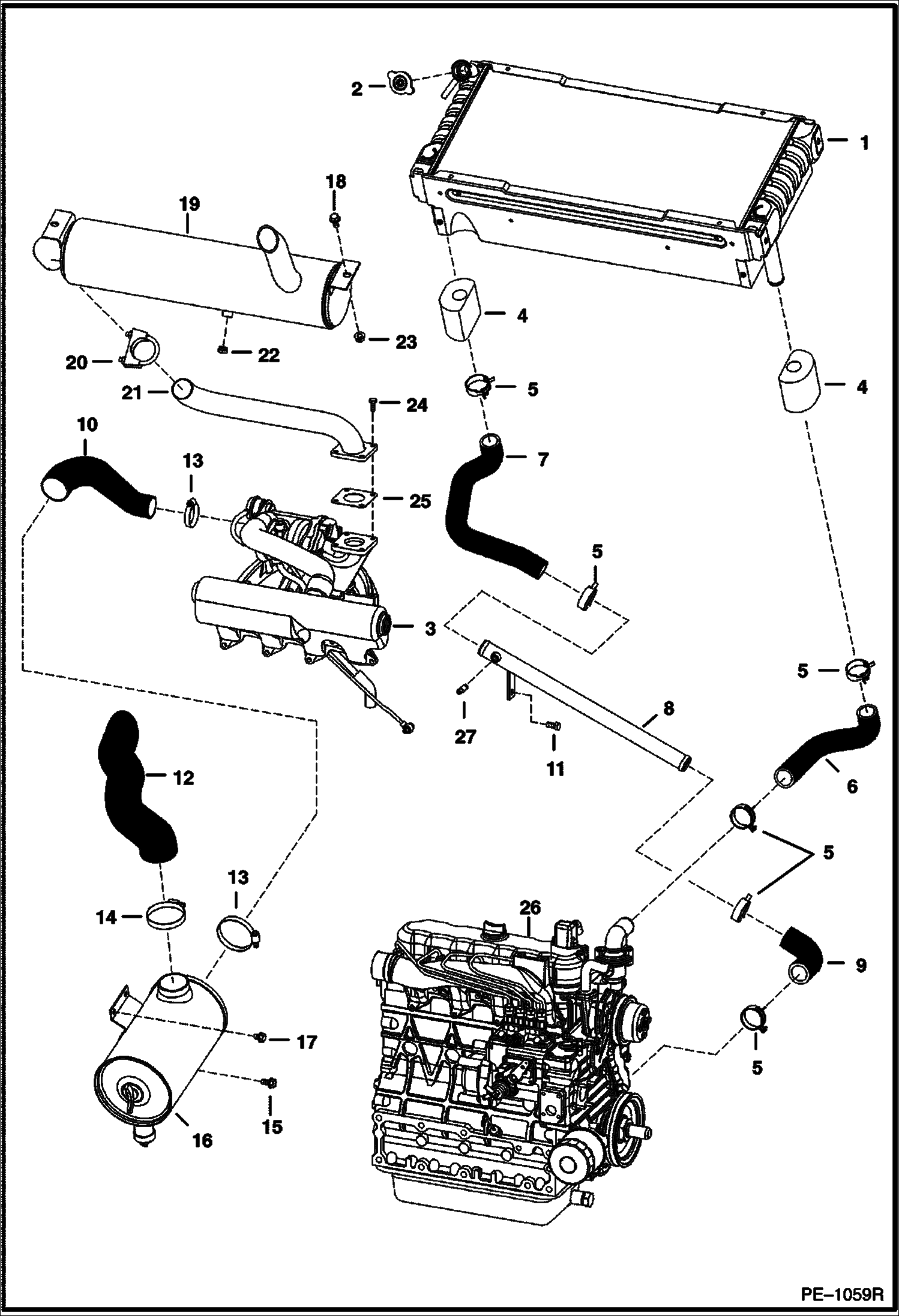

Запчасти Bobcat T-Series ENGINE & ATTACHING PARTS (S/N 5193 11001 & Abv, 5194 11001 & Abv) POWER UNIT

1

6685733

EXCHANGER, WATER RADIATOR Was 6718648 - A

1

6686077

EXCHANGER, WATER RADIATOR

2

6672491

CAP 14 PSI

3

TURBO See Illustration TURBO CHARGER/ B16456

4

6726433

SPACER

5

5HM42

HOSECLAMP

6

6717591

HOSE

7

6717592

HOSE

8

6730999

TUBE ASSY Was 6576029 - A

9

6576028

HOSE

10

6719565

HOSE

11

17C612

BOLT 5

12

6717674

HOSE

13

42HL300

CLAMP Was 42H000052B - B

14

42HL325

CLAMP Was 42H000032B - B

15

84G3712

BOLT 5

16

6700711

AIR CLEANER See Illustration AIR CLEANER/ B16478

17

84G3708

SCREW

18

35C612

BOLT

19

6676728

MUFFLER, EXHAUST 25.75''

20

6677363

CLAMP, FULL CIRCLE

21

6677371

PIPE, TUBE EXHAUST

22

6661062

PLUG brass - 0.38''

23

61D6

NUT 5

24

6701123

SCREW

25

6727753

GASKET

26

ENGINE See Illustration ENGINE & GASKET KITS/ B16451

27

40K6

PLUG
