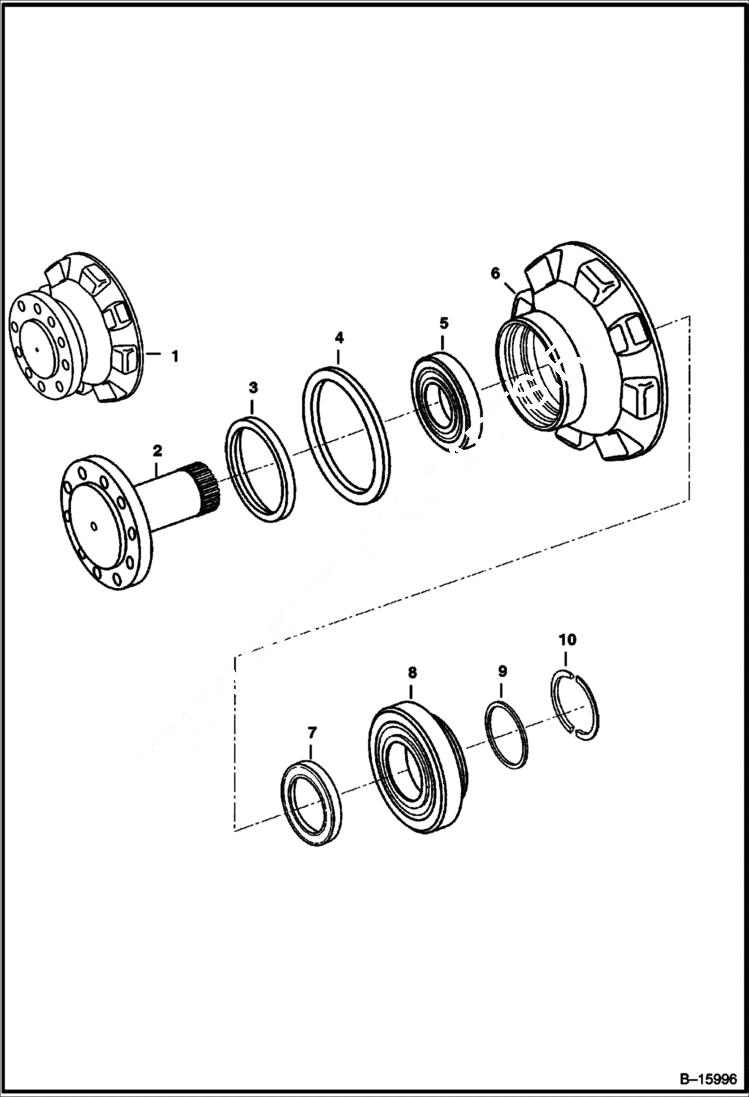

Запчасти Bobcat T-Series HYDROSTATIC MOTOR (Front Housing) HYDROSTATIC SYSTEM

1

CASE See Illustration HYDROSTATIC MOTOR/ B15994 NLA - FRONT ASSY. - REF. 2 - 10 - ORDER 6681980 CASE & (6) OF 31C001220B BOLT - WAS 6678144 - A

1

CASE, FRONT ASSY See Illustration HYDROSTATIC MOTOR/ B20897A NLA - Order 6681980 front case assy - Was 6681980 - A

2

SHAFT See Illustration HYDROSTATIC MOTOR/ B20897A NLA - ORDER REF. 1 (6681980 CASE) & (6) OF 31C001220B BOLT - WAS 6678130 - A

3

6678131

BUSHING

4

6678143

SEAL face

5

6678136

BEARING

6

6681980

CASE Was 6678129 - A

7

6678135

SEAL shaft

8

6677865

BEARING Was 6678465 - D

9

WASHER NLA - 1.84 mm - Was 6678116 - A

9

WASHER NLA - 2.05 mm - Was 6678117 - A

9

WASHER NLA - 2.25 mm - Was 6678118 - A

9

WASHER NLA - 2.35 mm - Was 6678120 - A

9

WASHER NLA - 2.45 mm - Was 6678119 - A

10

6677849

RING Was 6678449 - D
