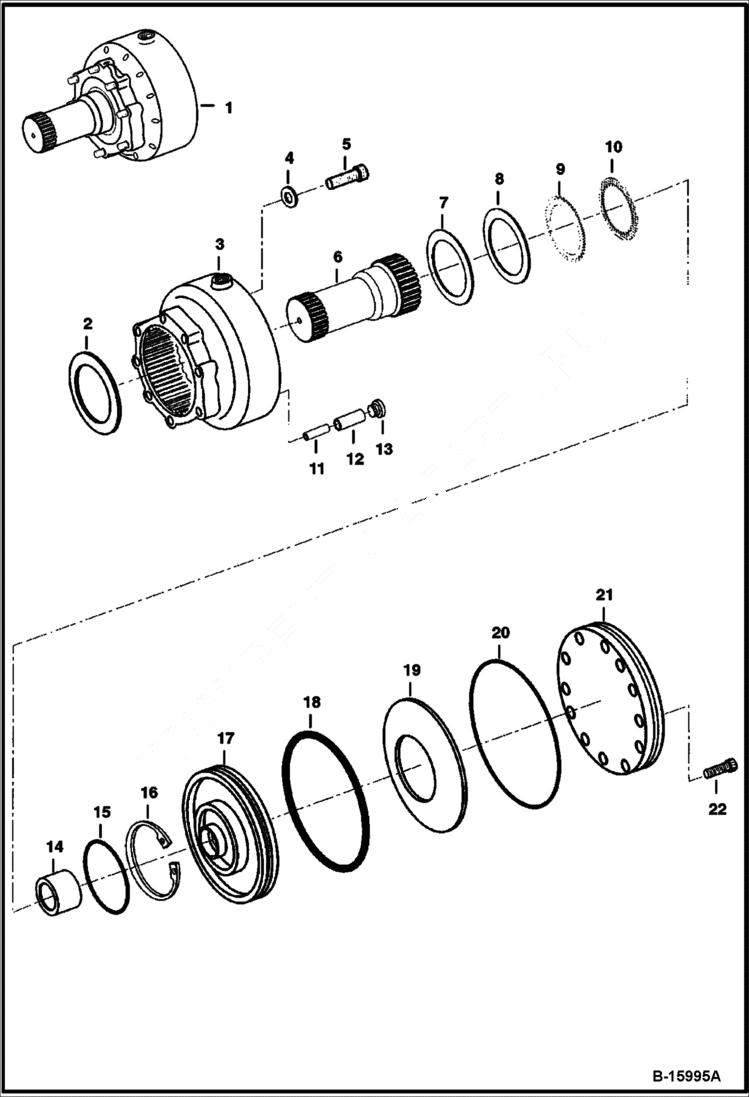

Запчасти Bobcat T-Series HYDROSTATIC MOTOR (Brake Assembly) HYDROSTATIC SYSTEM

1

6678141

BRAKE, HYD MOTOR ASSY. - REF. 2 - 22

2

6678121

WASHER

3

6678128

HOUSING W/snap ring groove for Ref. 16

4

6674194

WASHER

5

6678113

BOLT

6

6678122

SHAFT

7

6674722

SHIM 0.1 mm

8

6674723

SHIM 0.3 mm

9

6674714

DISC outer

10

6674713

DISC inner

11

6678146

ROLL PIN Rexroth S/N 556361 & Below

12

6678145

ROLL PIN Rexroth S/N 556361 & Below

12

6691100

PIN Rexroth S/N 556362 & Above - Was 6687193 - D

13

6676952

PLUG

14

6674734

BUSHING

15

6677828

SEAL outer

16

6678133

SNAP RING

17

6681988

PISTON

18

6678138

O-RING

19

6678139

WASHER

20

6678114

O-RING

21

6678127

COVER

22

3GM820

SCREW Was 6678112 - A
