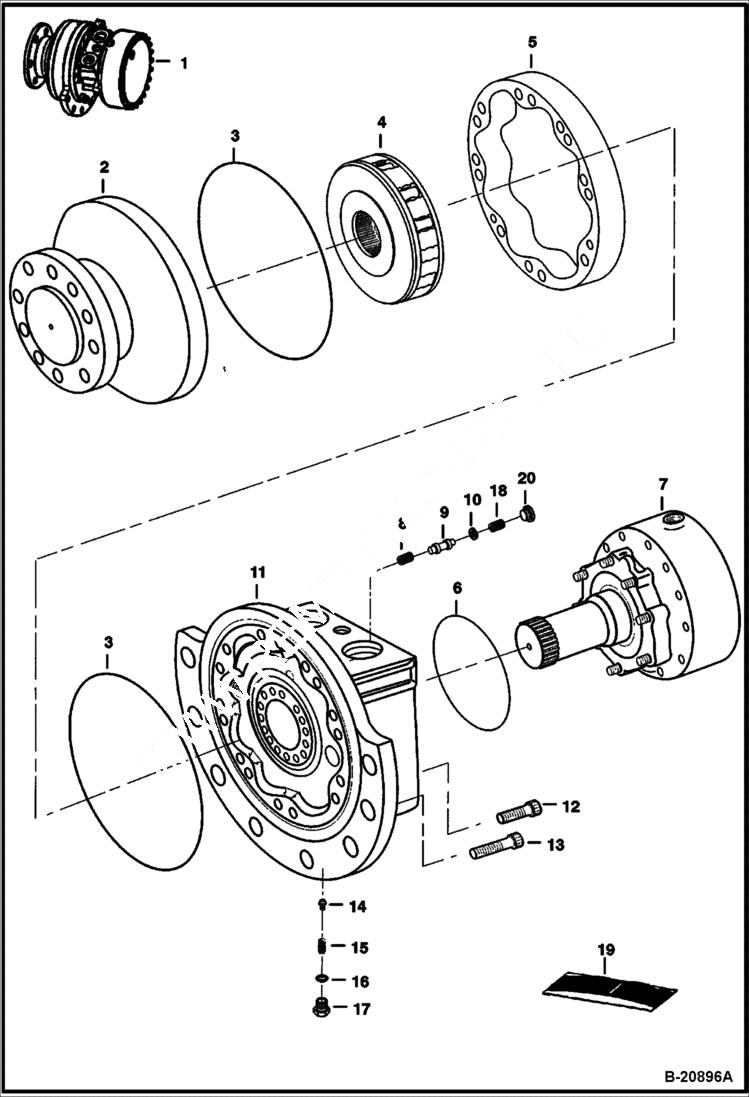

Запчасти Bobcat T-Series HYDROSTATIC MOTOR HYDROSTATIC SYSTEM

1

MOTOR See BTI365 Model R921810310 - For Manual Hand Controls - Was 6683006 - A

2

CASE See Illustration HYDROSTATIC MOTOR/ B20897A See Illustration HYDROSTATIC MOTOR/ B24275 NLA - Order 6681980 front assy. - Was 6681980 - A

2

7024981

OIL, SYNTHETIC DRIVE MOTOR 4 236 ml (8 oz) - Was 7003026 - A

3

6675864

QUAD RING

4

6690158

ROTOR GROUP Was 6675222 - D

5

6678132

CAM

6

6675863

QUAD RING

7

6678141

BRAKE, HYD MOTOR See Illustration HYDROSTATIC MOTOR/ B15995A

8

6678124

SPRING

9

6675866

SPOOL

10

6678137

WASHER

11

6686361

CASE, REAR See Illustration HYDROSTATIC MOTOR/ B25115

12

6691217

SCREW M16 x 70mm - The serial number listed is the vendor serial number - Was 6674704 - A

13

6678959

BOLT M12 x 80 mm

14

6678123

POPPET

15

6674344

SPRING

16

6675869

O-RING

17

6674345

PLUG

18

6678125

SPRING

19

6686476

KIT, SEAL includes Ref. 3, 6 & 16 on this page - also includes Ref. 15, 18 & 20 on illustration B15995A, Ref. 4 & 7 on illustration B24275 and Ref. 4-6, 9 & 10 on illustration B25115 - Was 6678142 - B

20

6678149

PLUG

20

6675093

O-RING
