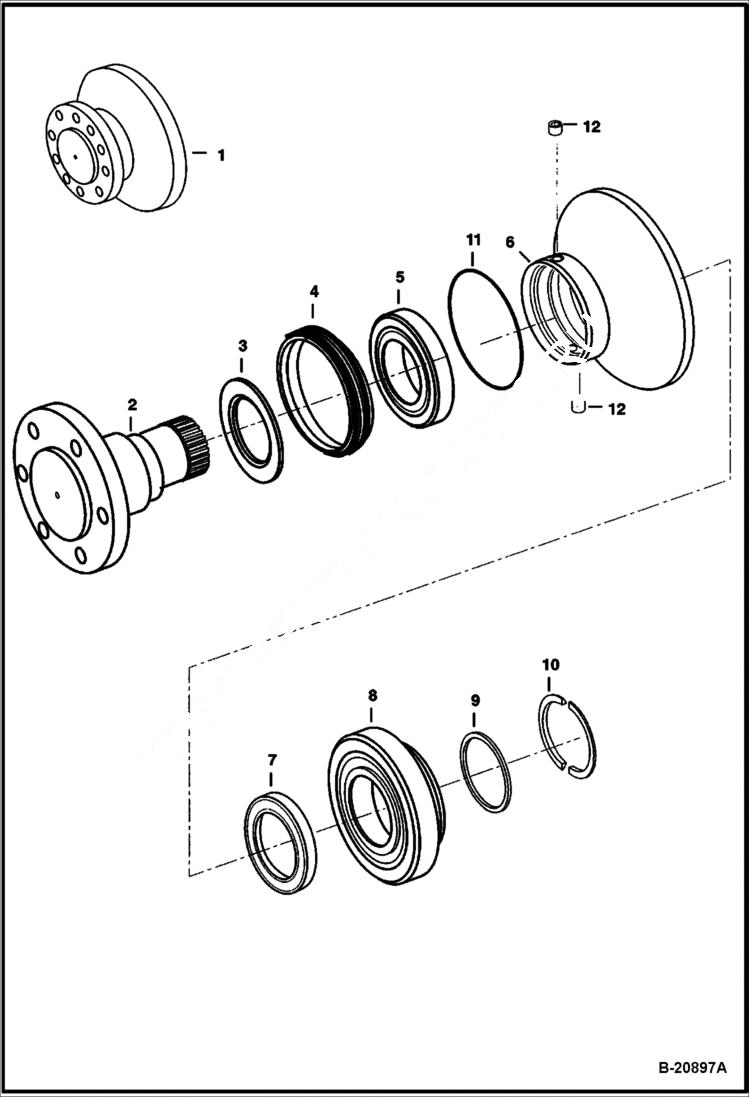

Запчасти Bobcat T-Series HYDROSTATIC MOTOR (Front Housing) HYDROSTATIC SYSTEM

1

6681980

CASE front assy - Ref. 2 - 12 - contains improved bearing and seal - Was 7008696

1

7024981

OIL, SYNTHETIC DRIVE MOTOR 4 236 ml (8 oz) - Was 7003026 - A

2

6681982

SHAFT

3

7008698

BUSHING

4

6681987

SEAL face

5

7008699

BEARING

6

7008697

CASE

7

6678135

SEAL shaft

8

6677865

BEARING

9

WASHER NLA - 1,85 mm - Order 6689092 washer kit - Was 6678116 - A

10

6677849

RING

11

6681986

O-RING

12

7008700

PLUG magnetic
