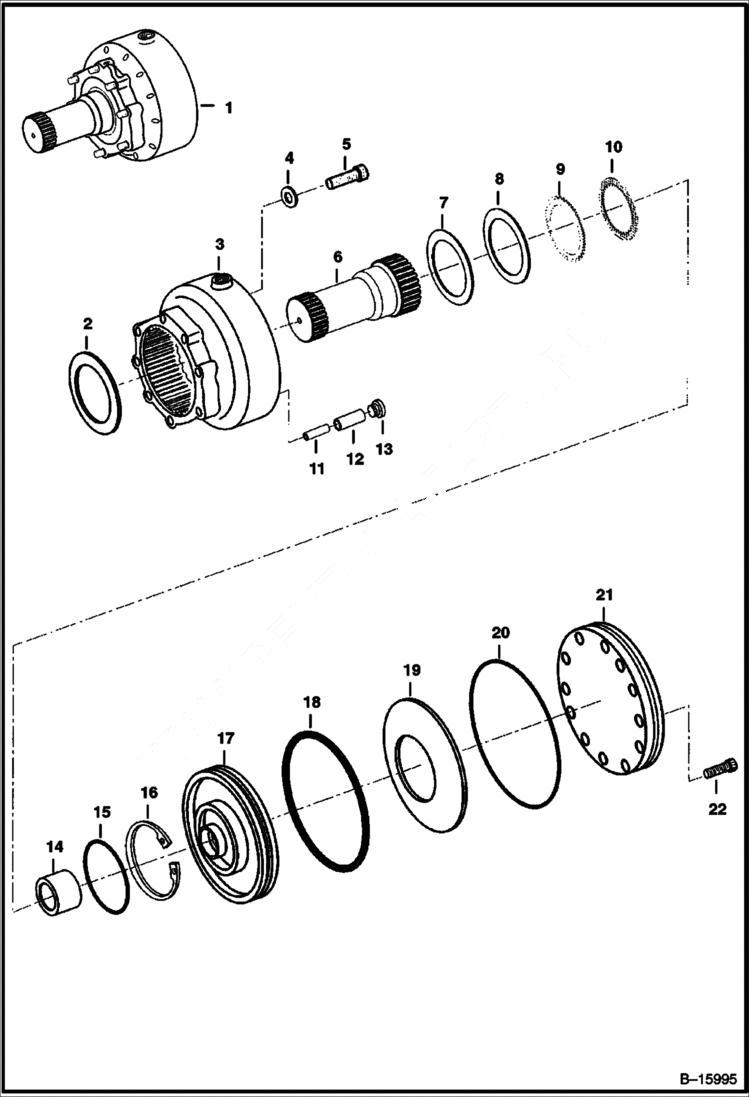

Запчасти Bobcat T-Series HYDROSTATIC MOTOR (Brake Assembly) HYDROSTATIC SYSTEM

1

6678141

BRAKE, HYD MOTOR See Illustration HYDROSTATIC MOTOR/ B20896 ASSY. - REF. 2 - 22

2

6678121

WASHER

3

6678128

HOUSING W/snap ring groove for Ref. 16

4

6674194

WASHER

5

6678113

BOLT

6

6678122

SHAFT

7

6674722

SHIM 0.1 mm

8

6674723

SHIM 0.3 mm

9

6674714

DISC outer

10

6674713

DISC inner

11

6678146

ROLL PIN

12

6678145

ROLL PIN

13

6676952

PLUG

14

6674734

BUSHING

15

6677828

SEAL outer

16

6678133

SNAP RING

17

6681988

PISTON

18

6678138

O-RING

19

6678139

WASHER

20

6678114

O-RING

21

6678127

COVER

22

3GM820

SCREW
