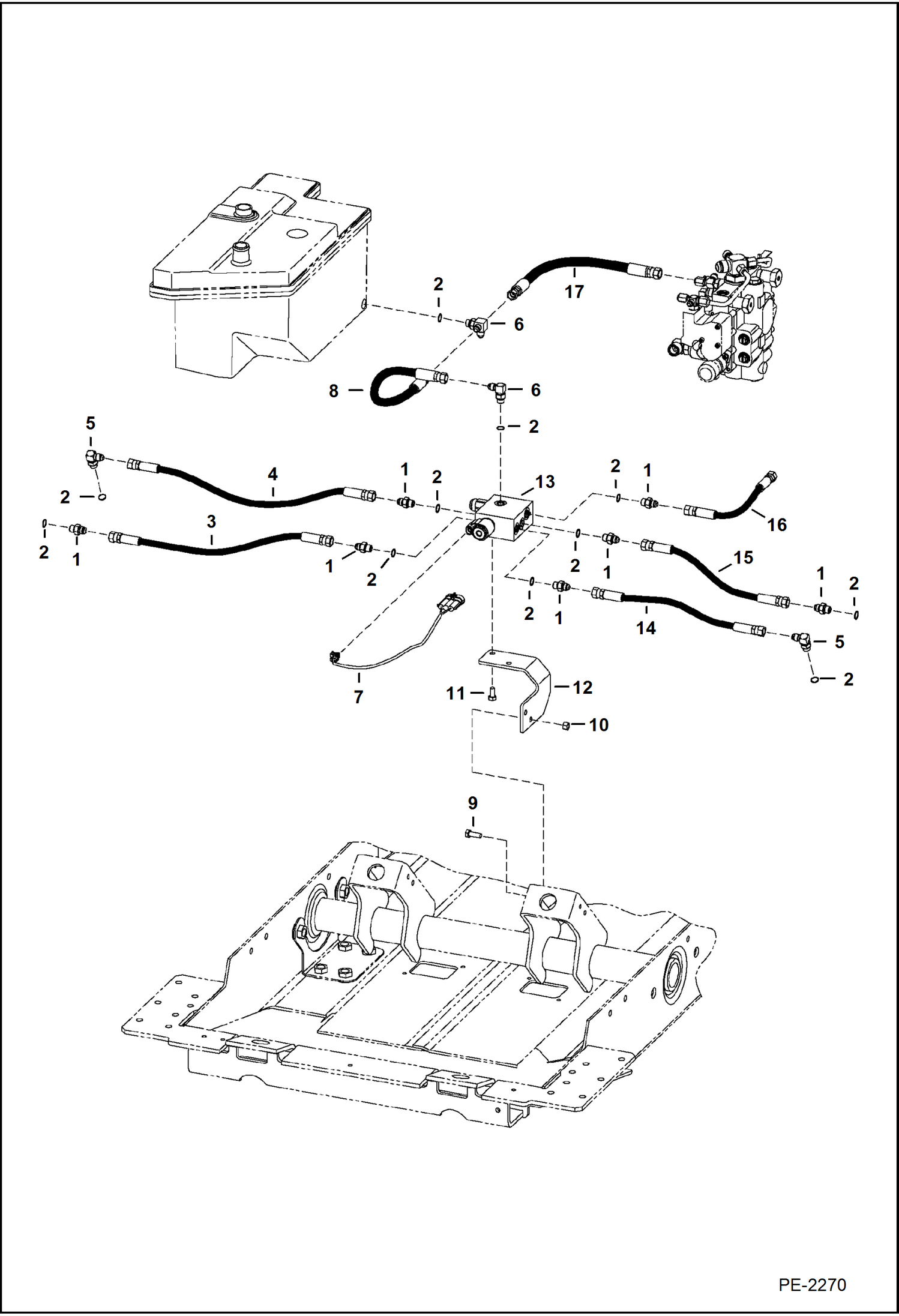

Запчасти Bobcat T-Series HYDROSTATIC CIRCUITRY (Brake Valve) HYDROSTATIC SYSTEM

1

15KB0606

FITTING, HYD CONNECTOR W/Ref. 2

2

79K6

O RING 10

3

6732115

HOSE 21.50''(546,1 mm) long

4

6732116

HOSE 19''(482,6 mm) long

5

17KB0606

FITTING W/Ref. 2

6

6725182

TEE W/Ref. 2

6

6725497

CROSS W/Ref. 2

7

6732781

HARNESS See Illustration ENGINE ELECTRICAL CIRCUITRY/ PE2274 BRAKE VALVE

8

7106204

HOSE Was 6701039 - B

9

17C616

BOLT 5

10

61D6

NUT 5

11

17C612

BOLT 5

12

6732114

BRACKET

13

6678239

VALVE brake

13

6679773

SOLENOID

13

STEM NSS - Order 6679773 solenoid - Was 6679770 - D

13

6688356

COIL W/Nut

13

NUT NSS - Order 6688356 coil - Was 6668820 - D

13

6672756

KIT, SEAL

13

6679771

CHECK VALVE

13

6679772

RELIEF VALVE

14

6732117

HOSE 17.50''(444,5 mm) long

15

6732118

HOSE 15.50''(393,7 mm) long

16

6709166

HOSE

16

6587280

HOSE

17

7108406

HOSE
