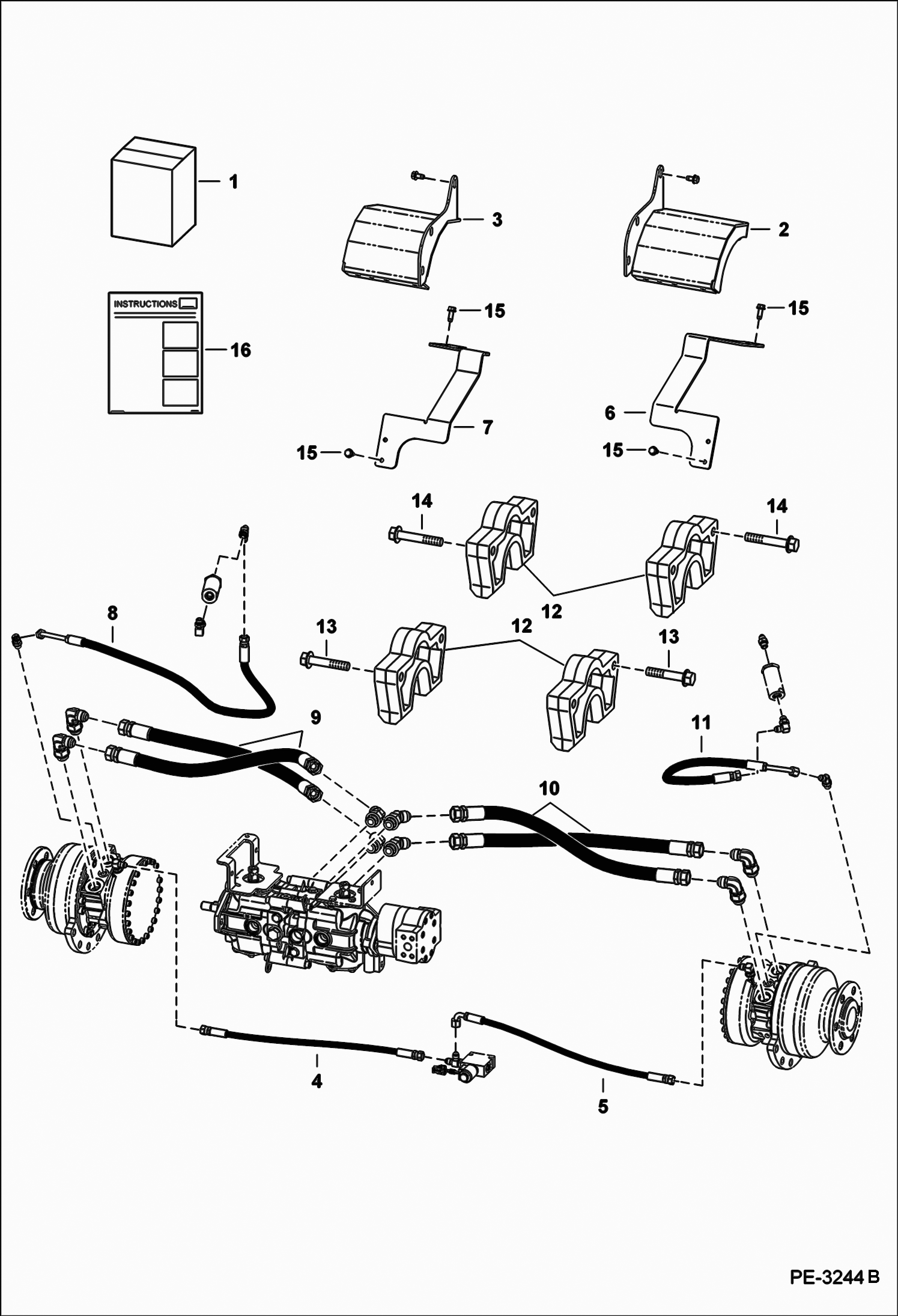

Запчасти Bobcat T-Series WIDE TRACK KIT (S/N A3LL36500 & Above) ACCESSORIES & OPTIONS

1

KIT, TRACK WIDE NLA - Order individual components Ref. 2-16

2

7172688

SHIELD, W/A RH

3

7172689

SHIELD, W/A LH

4

7183823

HOSE, HYD

5

7114893

HOSE

6

7172910

SHIELD, BOTTOM RH bottom - Was 7169603 - A

7

7172911

SHIELD, BOTTOM LH bottom - Was 7169604 - A

8

7191137

HOSE, HYD Was 7102325 - B

9

7172463

HOSE, HYD

10

7169080

HOSE, HYD

11

7191138

HOSE, HYD Was 7102328 - B

12

7172465

SPACER

13

31C1256

BOLT

14

31C1264

BOLT

15

84G3716

SCREW 5

16

6987373

INSTRUCTIONS
