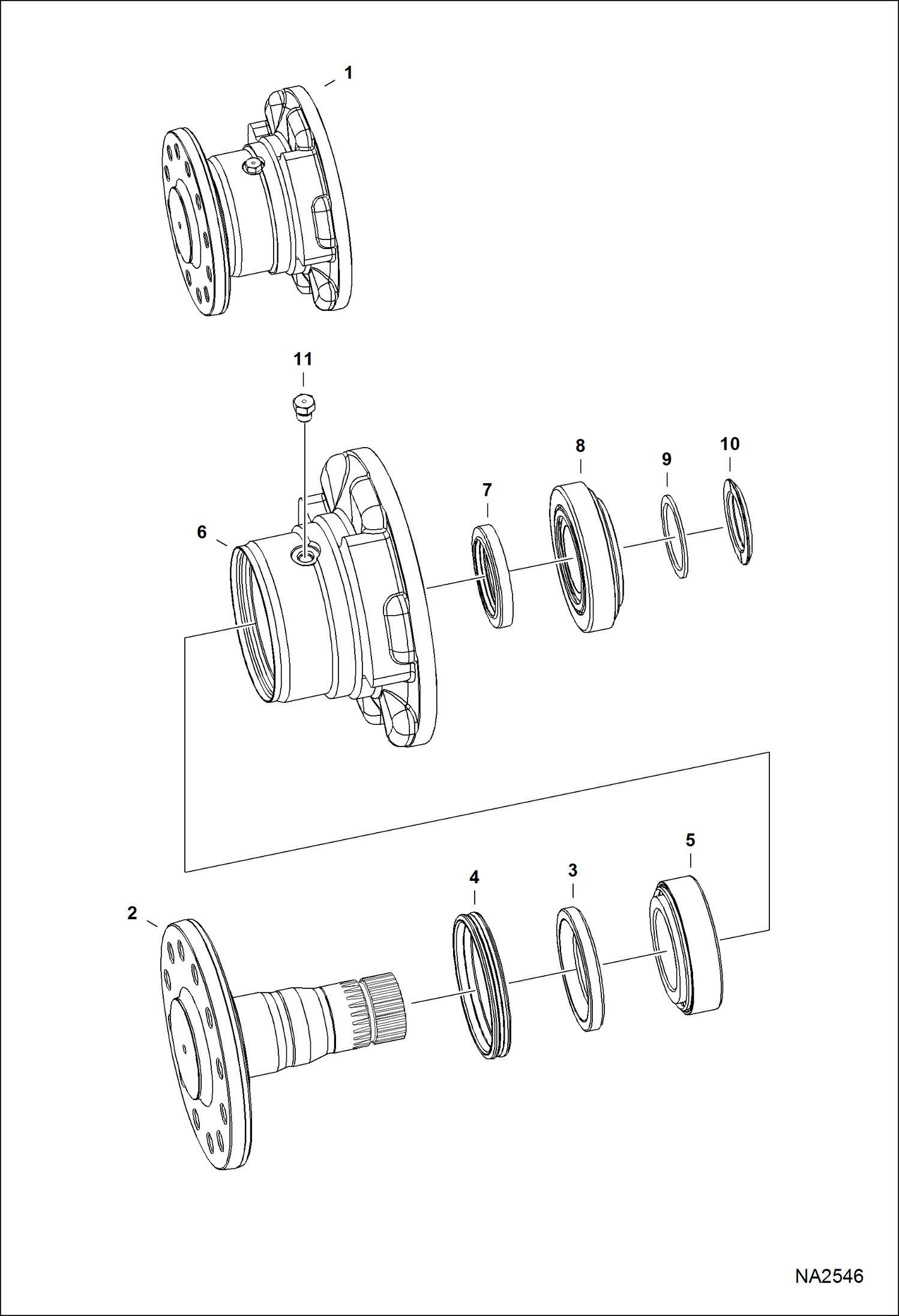

Запчасти Bobcat T-Series HYDROSTATIC MOTOR (Front Housing) (S/N A3LL36500 & Above) HYDROSTATIC SYSTEM

1

7012394

HOUSING, MOTOR front assy - Ref. 2-12

1

7024981

OIL, SYNTHETIC DRIVE MOTOR 4 236 ml (8 oz) - Was 7003026 - A

2

7012395

SHAFT

3

7012396

BUSHING

4

6681987

SEAL face

5

7012397

BEARING, TAPERED ROLLER

6

7012399

HOUSING, MOTOR

7

7012398

SEAL, SHAFT

8

6677865

BEARING

9

WASHER NLA - 1.85 mm - Order 6689092 washer kit

10

6677849

RING split - consists of 2 pieces

11

7008700

PLUG magnetic
