Запчасти Bobcat T-Series HYDROSTATIC MOTOR (R921810847) (S/N A3LL36500 & Above) HYDROSTATIC SYSTEM

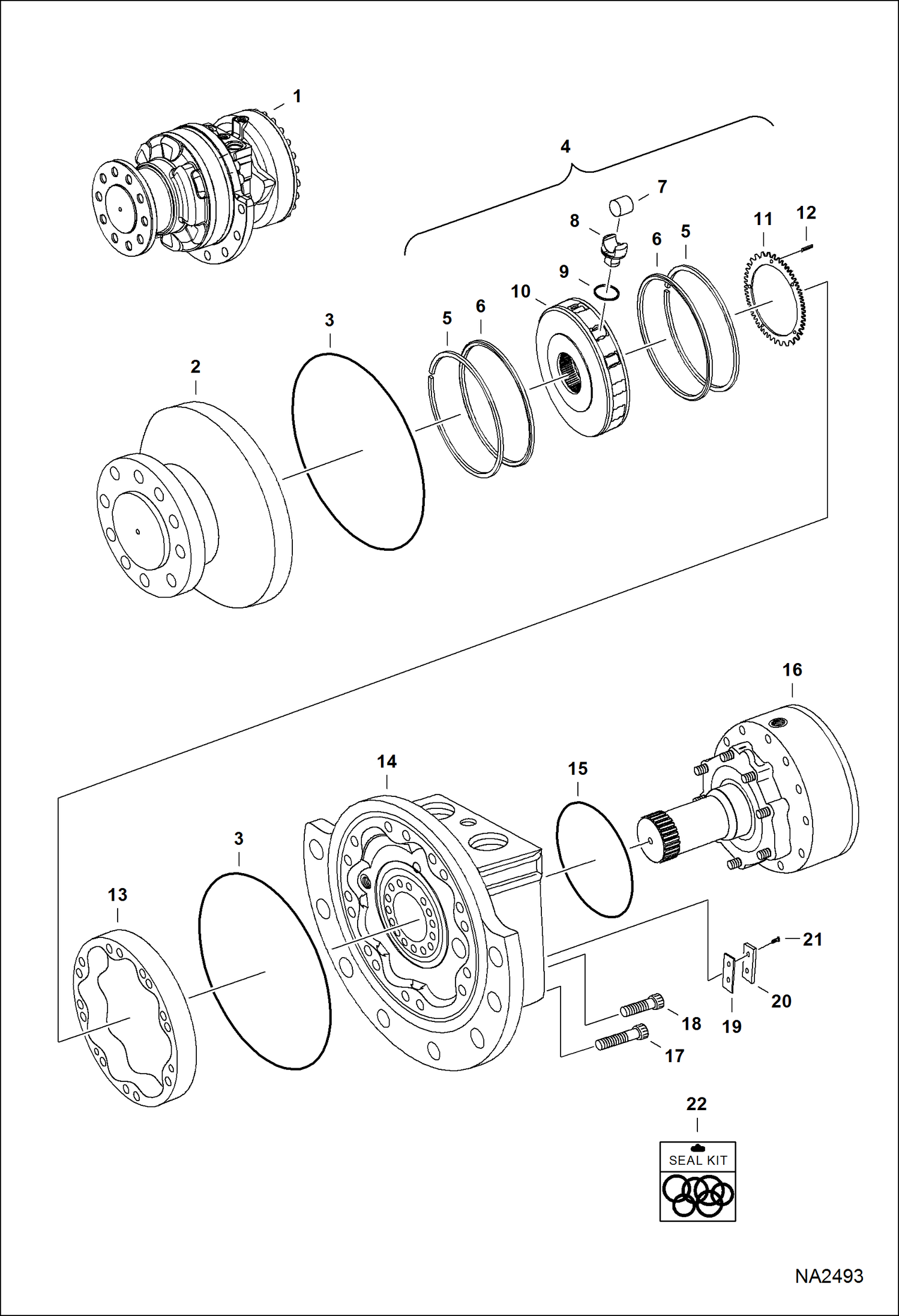

Схема запчастей Bobcat T-Series - HYDROSTATIC MOTOR (R921810847) (S/N A3LL36500 & Above) HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

MOTOR, DRIVE See BTI419 - R921810847 - Was 7001952

2

HOUSING, MOTOR See Illustration HYDROSTATIC MOTOR/ NA2546 - front assy

2

7024981

OIL, SYNTHETIC DRIVE MOTOR 4 236 ml (8 oz) - Was 7003026 - A

3

6675864

QUAD RING

4

6691093

ROTARY GROUP Ref. 5-12

5

6674035

SNAP RING

6

6674036

RING

7

6690022

ROLLER

8

6689126

PISTON W/Ref. 9

9

6690048

RING piston

10

6690021

BLOCK

11

6688375

DISC

12

6685433

SPRING PIN

13

6678132

CAM

14

HOUSING, MOTOR See Illustration HYDROSTATIC MOTOR/ MS2284A

15

6675863

QUAD RING

16

BRAKE ASSY See Illustration HYDROSTATIC MOTOR/ NA2494

17

6678959

BOLT

18

6687080

SCREW

19

6688717

GASKET

20

6688716

COVER

21

6688718

BOLT

22

6686476

KIT, SEAL complete - Ref. 3 & 15 - Was 7008695 - A

22

6686476

KIT, SEAL See Illustration HYDROSTATIC MOTOR/ NA2546 complete - Ref. 4 & 7 - Was 7008695 - A

22

6686476

KIT, SEAL See Illustration HYDROSTATIC MOTOR/ MS2284A complete - Ref. 4-6, 9, 16, 17 & 20 - Was 7008695 - A

22

6686476

KIT, SEAL See Illustration HYDROSTATIC MOTOR/ NA2494 complete - Ref. 15 & 18 - Was 7008695 - A

Выбрано товаров: 26
