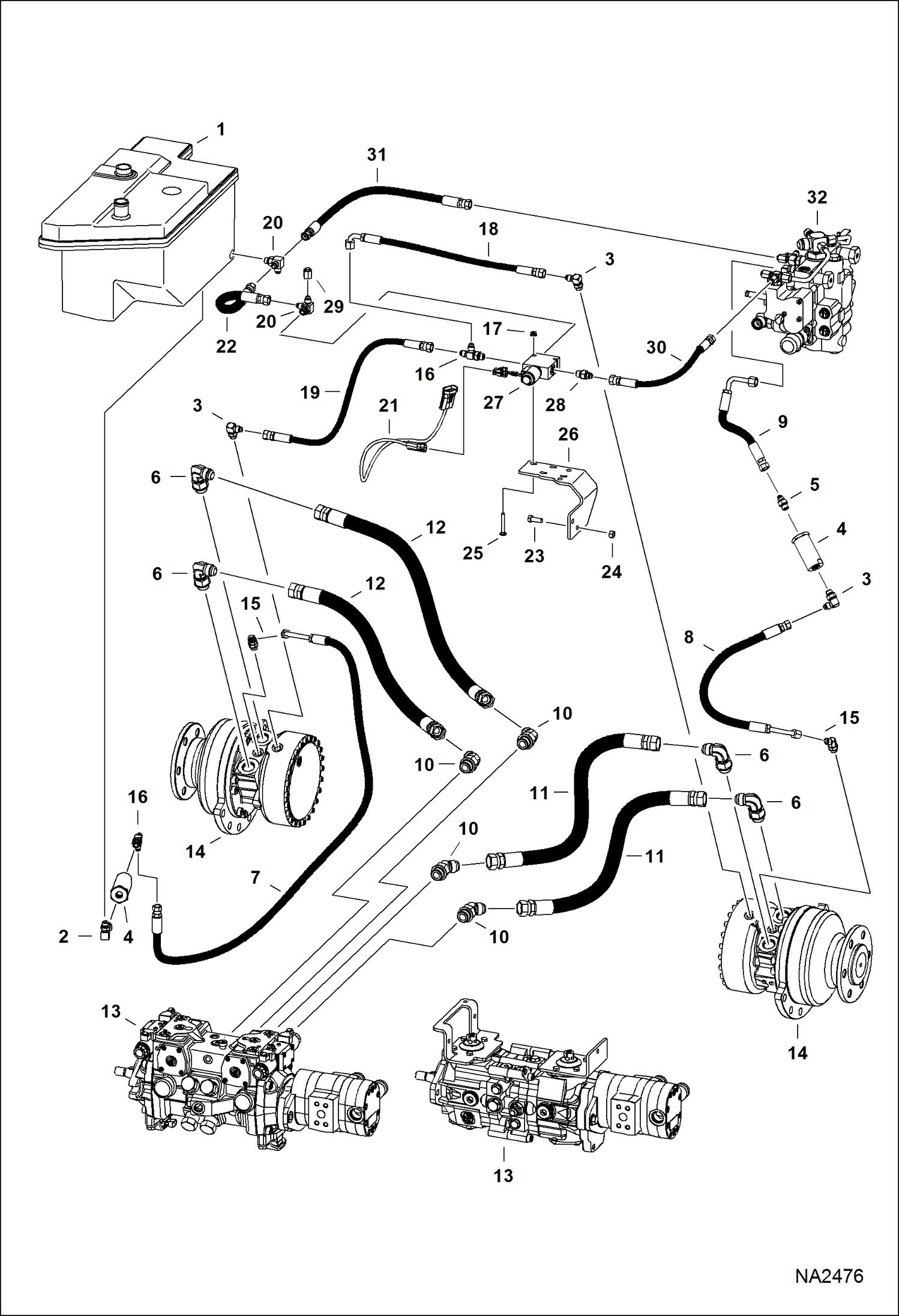

Запчасти Bobcat T-Series HYDROSTATIC CIRCUITRY (W/Motors - R921810784) (S/N A3LL11001 - 36499) HYDROSTATIC SYSTEM

1

6728673

TANK See Illustration HYDROSTATIC CIRCUITRY/ NA2474

2

6715190

ELBOW

2

79K6

O RING 10

3

17KB0606

FITTING

3

79K6

O RING 10

4

6661022

FILTER, OIL HYD IN-LINE See Illustration HYDROSTATIC OIL FILTER/ B13527

5

15KB0606

FITTING, HYD CONNECTOR

5

79K6

O RING 10

6

7101797

ELBOW

6

79K12

O RING 10

7

7191135

HOSE, HYD 44.5'' (1130,3 mm) long - Was 6726271 - B

8

7191136

HOSE, HYD 32'' (812,8 mm) long - Was 6726276 - B

9

6542521

HOSE 16'' (406,4 mm) long

10

6737453

ELBOW

11

6676408

HOSE, HYD 24.25'' (615,95 mm) long

11

7102327

HOSE 26.75'' (679,5 mm) long - wide track or roller suspension

12

6676407

HOSE 22.25'' (565,15 mm) long - manual control and solid mounted suspension

12

6688843

HOSE 21.75'' (552,45 mm) long - selectable joystick control and solid mounted suspension

12

6676408

HOSE, HYD 24.25'' (615,9 mm) long - wide track or roller suspension

13

PUMP See Illustration HYDROSTATIC PUMP/GEAR PUMP/ PE2824

14

7001117

MOTOR, DRIVE See Illustration HYDROSTATIC MOTOR/ MS2282 - R921810784

15

18KB0606

FITTING, HYD ELBOW

15

79K6

O RING 10

16

21KB0606

FTG HYD STRAIGHT TEE

16

79K6

O RING 10

17

55D4

NUT

18

7114892

HOSE 23.50'' (596,9 mm) long - 320 mm track W/solid mounted suspension

18

7114893

HOSE 26'' (660,4 mm) long - wide track or roller suspension

19

7157318

HOSE 21.50'' (546,1 mm) long - 320 mm track W/solid mounted suspension - Was 6732115 - A

19

7102321

HOSE 24'' (609,6 mm) long - Use W/ 16'' (400 mm) wide tracks

20

6725182

TEE

20

79K6

O RING 10

21

7115894

HARNESS brake valve

22

6815887

HOSE

23

17C616

BOLT 5

24

61D6

NUT 5

25

37C432

SCREW

26

7110926

BRACKET

27

6679103

VALVE, BRAKE

27

6675731

COIL

27

6668820

NUT

27

6669736

SEAL KIT

28

6669676

CHECK VALVE

28

79K6

O RING 10

29

36K5

CAP

30

6803157

HOSE ASSY

31

7108406

HOSE

32

VALVE ASSY See Illustration HYDRAULIC CONTROL VALVE/ PE2734A - manual control

32

VALVE ASSY See Illustration HYDRAULIC CONTROL VALVE/ PE2378 - selectable joystick control
