Запчасти Bobcat T-Series HYDROSTATIC CIRCUITRY (Manual Controls) HYDROSTATIC SYSTEM

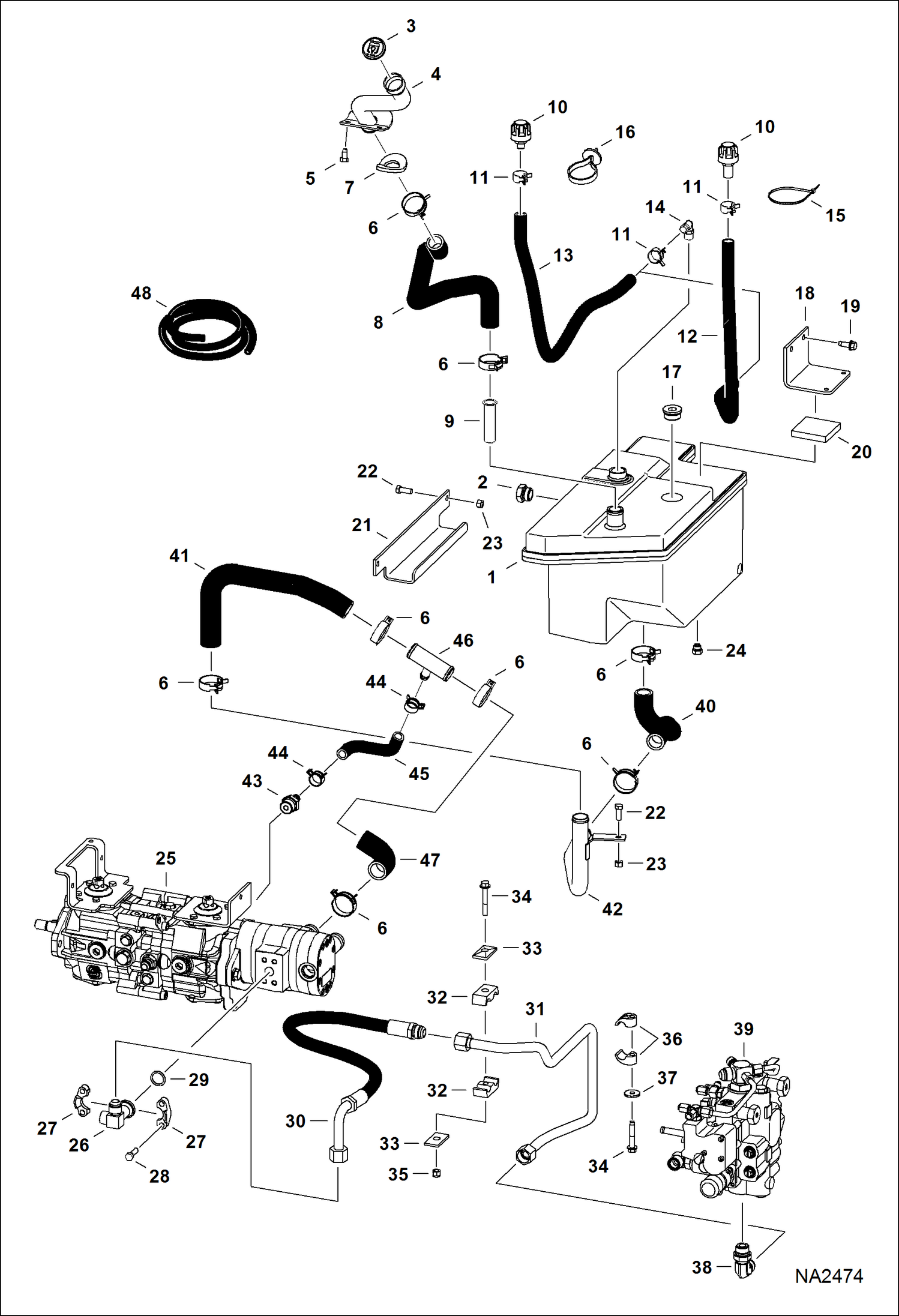

Схема запчастей Bobcat T-Series - HYDROSTATIC CIRCUITRY (Manual Controls) HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

6728673

TANK

2

6665915

GAUGE

2

79K12

O RING 10

2

6734563

WASHER KIT

2

6734561

WASHER

2

25K30118

O RING 10

3

6717827

CAP

4

6717830

TUBE

5

84G3710

SCREW

6

5HM42

HOSECLAMP

7

6718772

GASKET

8

6718020

HOSE

9

6732215

FILTER

10

7025626

VENT, BREATHER - Was 6684923 - A

11

5HM24

CLAMP

12

HOSE NLA - 21.5'' (546,1 mm) long - Order 3 ft of Ref. 13 & Ref. 60

13

HOSE NLA - 28'' (711,2 mm) long - Order Ref.48

14

6727637

ELBOW barbed

15

6610510

TIE

16

6675734

STRAP, TIE button head

17

47K10

PLUG

17

79K16

O RING 10

18

6726254

BRACKET

19

84G3716

SCREW 5

20

6726255

PAD bumper

21

6726162

BRACKET

22

17C616

BOLT 5

23

61D6

NUT 5

24

24K5

PLUG

24

79K6

O RING 10

25

PUMP See Illustration HYDROSTATIC PUMP/GEAR PUMP/ PE2824

26

7113262

ELBOW split flange - two leg - Use W/hydraulic muffler hose

26

7106040

ELBOW split flange - one leg

27

19J12

CLAMP

28

17C620

BOLT

29

55K214

O-RING

30

6733197

HOSE 30''(762 mm) long

30

7115185

HOSE 31'' (787,4 mm) long - Power Bob-Tach option

31

7109922

TUBE Use W/ ''H'' style control valve mount

32

6592506

CLAMP

33

6592507

PLATE

34

17C644

BOLT

35

83D6

NUT 5

36

7100462

CLAMP

37

619021

WASHER, 5

38

7101797

ELBOW

38

75K12

O'RING 10

39

VALVE ASSY See Illustration HYDRAULIC CONTROL VALVE/ PE2734A

40

6717905

HOSE

41

7124129

HOSE

42

6726159

TUBE

43

7124133

ADAPTER

43

79K12

O RING 10

44

5HM23

CLAMP

45

7124130

HOSE

46

7124127

TEE

47

7124128

HOSE

48

6578172

HOSE bulk - sold per foot

Выбрано товаров: 58
