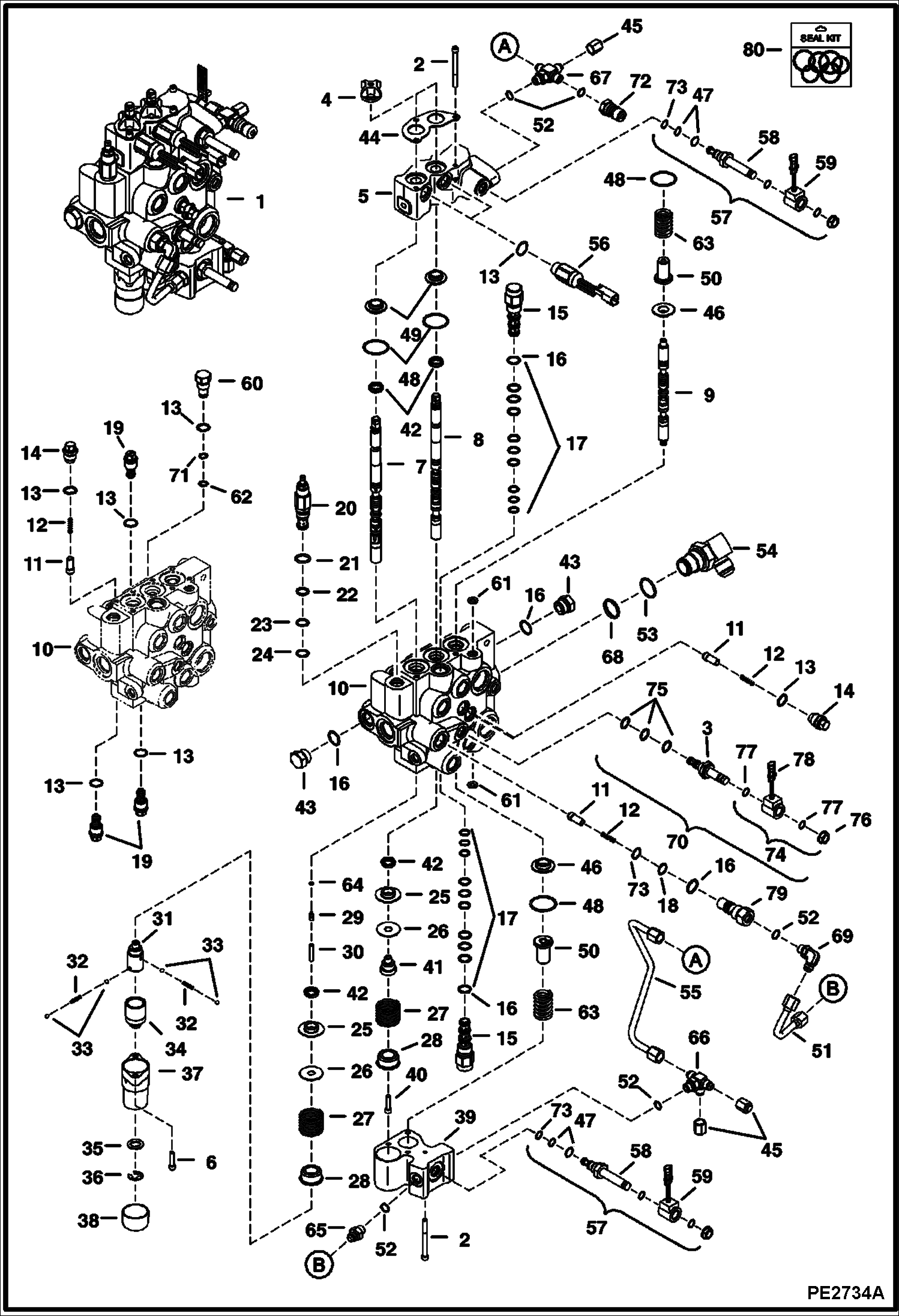

Запчасти Bobcat T-Series HYDRAULIC CONTROL VALVE (Manual Controls) (S/N A3LL34999 & Below) HYDRAULIC SYSTEM

1

VALVE, CONTROL See BTI363 - NLA - W/fittings - Was 7160957 - A

2

29G444

BOLT

3

6667687

VALVE, STEM SOLENOID

4

6587763

BOOT

5

6817003

BODY

6

29G416

BOLT

7

7209460

SPOOL, LIFT LOCK Was 7108781 - C

8

6815152

SPOOL, TILT

9

7112383

AUX SPOOL auxiliary

10

BODY NSS

11

SEAT, CHECK VALVE NLA - 19 mm (0.75'') ID depth - Order 7166047 seat & Ref. 12 (7166339 spring) - Was 7106712

11

7166047

SEAT, CHECK VALVE 27,3 mm (1.08'') ID depth

12

6592117

SPRING, LOAD CHECK 31,4 mm (1.24'') long

12

7166339

SPRING, LOAD CHECK 44,4 mm (1.75'') long

13

79K8

O RING 10

14

7134520

PLUG load check - W/Ref. 13

15

6689739

VALVE pilot operated - W/Ref. 16-18

16

79K10

O RING 10

17

6690431

KIT, SEAL W/Ref. 16

18

73K016

RING, BACK-UP

19

6684645

VALVE, ANTI CAV anti-cav - W/Ref. 13

20

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

21

58K017

O-RING 10

22

6665569

WASHER back-up

23

25K20016

O RING 10

24

6665570

RING glide

25

6595663

BUSHING

26

7211397

WASHER, SPRING Was 6587523 - A

27

6587580

SPRING

28

6592100

COLLAR

29

6596807

PLUG plastic - 0.46'' long

30

6586918

SCREW

31

6587575

ADAPTER

32

6592107

SPRING

33

6592105

BALL

34

6531270

SLEEVE, DETENT

35

6592098

WASHER

36

799119

RING

37

6589226

COVER, END 0.63'' flange

38

6660644

CAP

39

6814279

BLOCK

40

30G416

BOLT

41

6592109

ADAPTER

42

6683274

SEAL, SPOOL 10

43

24K7

PLUG W/Ref. 16

44

6813153

PLATE

45

36K5

CAP

46

7138376

BUSHING

47

6685603

KIT, SEAL solenoid valve

48

1K127

O-RING 10

49

7202038

BUSHING, ALIGNMENT Also Order 82K019 alignment O-ring - Was 6805102 - A

50

6814694

RETAINER spring

51

7116995

TUBELINE

52

79K6

O RING 10

53

79K16

O RING 10

54

7101797

ELBOW W/Ref. 53 & 68 - Was 7101371 - B,D

55

7110914

TUBELINE

56

6676029

SOLENOID, LOCK SPOOL 127 mm (5'') wire

57

6686868

SOLENOID W/Ref. 47, 58, 59, 69 & 73

58

6688743

STEM, VALVE CONTROL W/Ref. 47, 69, & 73

59

6678891

COIL 10 volt - W/nut

59

6691022

NUT

60

6816549

PLUG ASSY PORT RLF W/Ref. 13, 62 & 71

61

55K204

O RING 10

62

80K13

WASHER back-up

63

7121399

SPRING

64

58K4

O-RING

65

6688845

VALVE check - W/screen & Ref. 52

66

7102019

CROSS W/Ref. 52

67

7102066

CROSS W/Ref. 52

68

58K022

O-RING 10

69

17KB0606

FITTING W/Ref. 52

70

SOLENOID Ref. 3 & 75-78

71

58K013

O-RING

72

6684125

COUPLER

73

58K016

O-RING 10

74

6675559

COIL assy - Ref. 76-78

75

6669732

KIT, SEAL

76

6668820

NUT

77

54K20028

O RING 10

78

6671025

COIL 8 volt

79

7134522

PLUG

80

7123964

KIT, SEAL COMPLETE includes seal kits 7123963, 7123965, 6632279, 6669732 & (2) each of seal kit 6685603 & 6690431

80

7123963

SEAL KIT, EXTERNAL FITTING 3 spool - Ref. 4, 29, 42, 48, 61 & 62

80

6685603

KIT, SEAL solenoid valve - Ref. 47

80

6632279

KIT, SEAL main relief - Ref. 21-24

80

7123965

KIT, SEAL external fitting - Ref. 13, 16, 18, 52, 53, 62, 68, 71, 73, & 77

80

6669732

KIT, SEAL solenoid valve - Ref. 75

80

6690431

KIT, SEAL pilot valve - Ref. 17
