Запчасти Bobcat T-Series DRIVE TRAIN (Roller Suspension) (S/N A3LL36500 & Above) DRIVE TRAIN

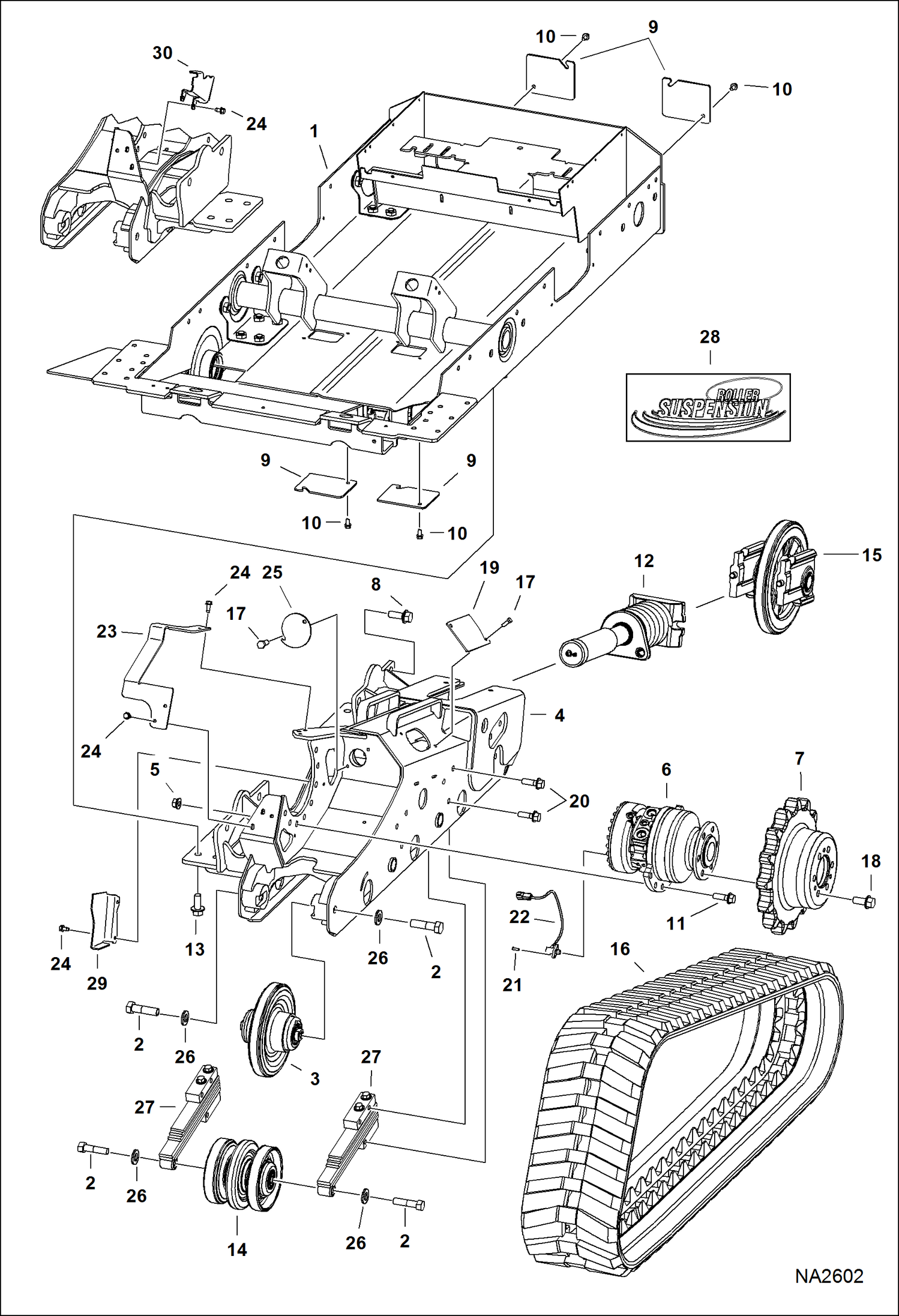

Схема запчастей Bobcat T-Series - DRIVE TRAIN (Roller Suspension) (S/N A3LL36500 & Above) DRIVE TRAIN

Артикул

Название

Примечание

Количество

1

7107237

DRIVECASE

2

7143955

BOLT

3

6697933

IDLER REAR

4

7166236

FRAME, W/A LH

4

7166235

FRAME, W/A RH

5

53D10

NUT

6

MOTOR, DRIVE See Illustration HYDROSTATIC MOTOR/ NA2493 - R921810847

7

7166679

SPROCKET, MOTOR DRIVE TRACK

8

31C1232

SCREW

9

7240780

COVER, ACCESS Was 6716010 - A

10

84G3712

BOLT 5 manual controls

10

84G3712

BOLT 5 selectable joystick controls

11

31C1032

BOLT

12

TENSIONER, TRACK ASSY

13

31C1228

BOLT Was 31C1232 - B

14

6693239

ROLLER ASSY

15

6693237

IDLER, FRONT 2

16

TRACK, RUBBER See Illustration TRACKS/ NA6160

17

17C616

BOLT 5

18

29CM1640

BOLT

19

7137132

COVER

20

7139763

SCREW

21

7102184

SCREW selectable joystick controls

22

SENSOR, SPEED See BTI419 - NLA - Was 7139902

23

7172910

SHIELD, BOTTOM RH

23

7172911

SHIELD, BOTTOM LH

24

84G3716

SCREW 5

25

7143346

COVER, ACCESS

26

28E14

WASHER

27

7131652

SPRING, SUSPENSION RH outside - LH inside

27

7131653

SPRING, SUSPENSION LH outside - RH inside

28

7146178

DECAL roller suspension

29

7169601

SHIELD, SENSOR RH selectable joystick controls

30

7169602

SHIELD, SENSOR LH selectable joystick controls

Выбрано товаров: 34
