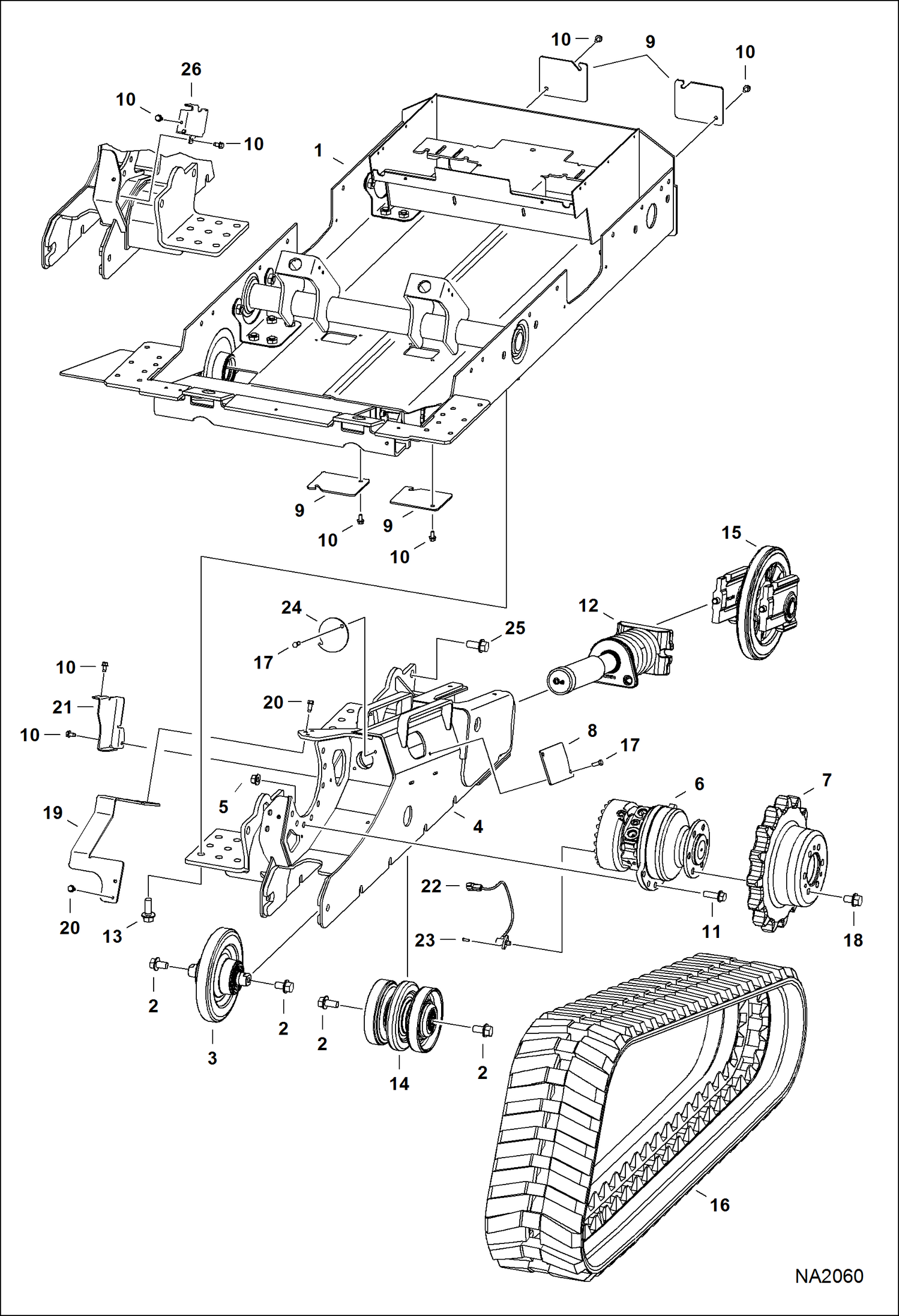

Запчасти Bobcat T-Series DRIVE TRAIN (Solid Mounted Undercarriage) (S/N A3LL35033 - 36499) DRIVE TRAIN

1

7107237

DRIVECASE

2

31C1224

BOLT services 31C1228 in this application

3

IDLER, REAR 2 See Illustration REAR IDLER/ PE2555 - NLA - W/threaded holes - 1.38'' (35 mm) deep threads - Was 6693238 - B

3

6693238

IDLER, REAR 2 See Illustration REAR IDLER/ PE2555 - W/threaded holes - 1.77'' (45 mm) deep threads

4

7145051

FRAME, TRACK LH

4

7145050

FRAME, TRACK RH

5

53D10

NUT

6

MOTOR See Illustration HYDROSTATIC MOTOR/ MS2282

7

7165111

SPROCKET

8

7137132

COVER

9

7240780

COVER, ACCESS Was 6716010 - A

10

84G3712

BOLT 5 manual controls

10

84G3712

BOLT 5 selectable joystick controls

11

31C1032

BOLT

12

TENSIONER, TRACK ASSY See Illustration TRACK TENSIONER/ PE3812

13

31C1228

BOLT

14

ROLLER, TRACK 2 See Illustration TRACK ROLLER/ PE2556 - NLA - W/threaded holes - 1.38'' (35 mm) deep threads - Was 6689371 - B

14

6689371

ROLLER, TRACK 2 See Illustration TRACK ROLLER/ PE2556 - W/threaded holes - 45 mm (1.77'') deep threads

15

6693237

IDLER, FRONT 2

16

TRACK, RUBBER See Illustration TRACKS/ NA6160

17

17C616

BOLT 5

18

31C1220

BOLT

19

7166540

SHIELD RH - wide track option

19

7166541

SHIELD LH - wide track option

20

84G3716

SCREW 5

21

7166557

SHIELD LH - selectable joystick controls

22

7102184

SCREW selectable joystick controls

23

SENSOR, SPEED See BTI419 - NLA - Was 7139902

23

75K5

O-RING

24

7143346

COVER, ACCESS

25

31C1232

SCREW W/320 mm track

25

SCREW See Illustration WIDE TRACK KIT/ PE3244A - W/400 mm track

26

7166556

SHIELD RH - selectable joystick controls
