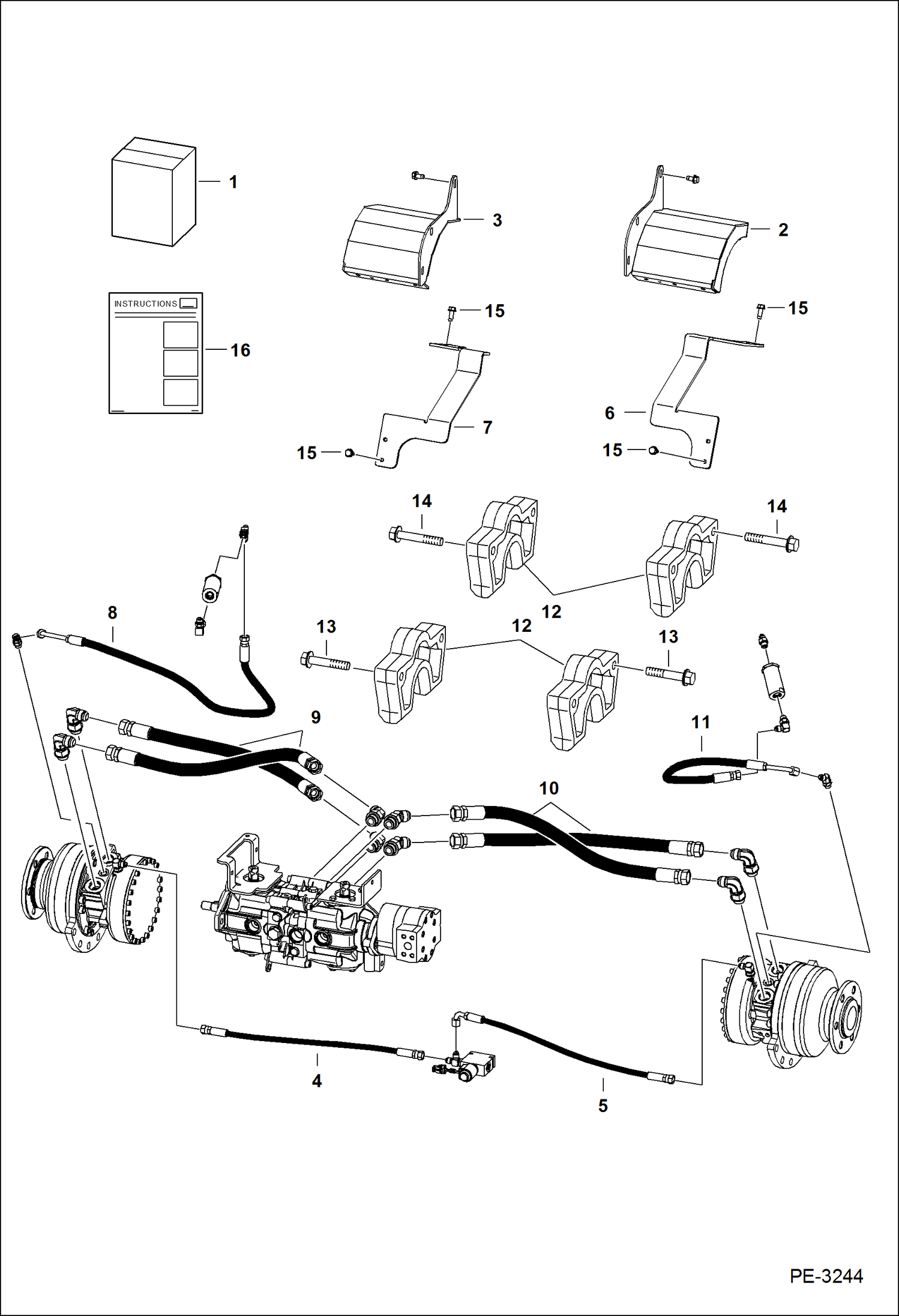

Запчасти Bobcat T-Series WIDE TRACK KIT ACCESSORIES & OPTIONS

1

7108505

WIDE TRACK KIT

2

7114007

SHIELD, W/A RH RH - C stamp - Was 7102314 - A

3

7114006

SHIELD, W/A LH LH - C stamp - Was 7102315 - A

4

7102321

HOSE

5

7114893

HOSE

6

7116433

SHIELD RH - 16'' (400 mm) wide - Bridgestone - wide track option

7

7116434

SHIELD LH - 16'' (400 mm) wide - Bridgestone - wide track option

8

7191137

HOSE, HYD Was 7102325 - B

9

6676408

HOSE, HYD 24.25'' (615,9 mm) long - Was 7102326 - A

10

7102327

HOSE

11

7191138

HOSE, HYD Was 7102328 - B

12

7103431

SPACER

13

31C1264

BOLT

14

31C1272

BOLT

15

84G3716

SCREW 5

16

6903364

INSTRUCTIONS
