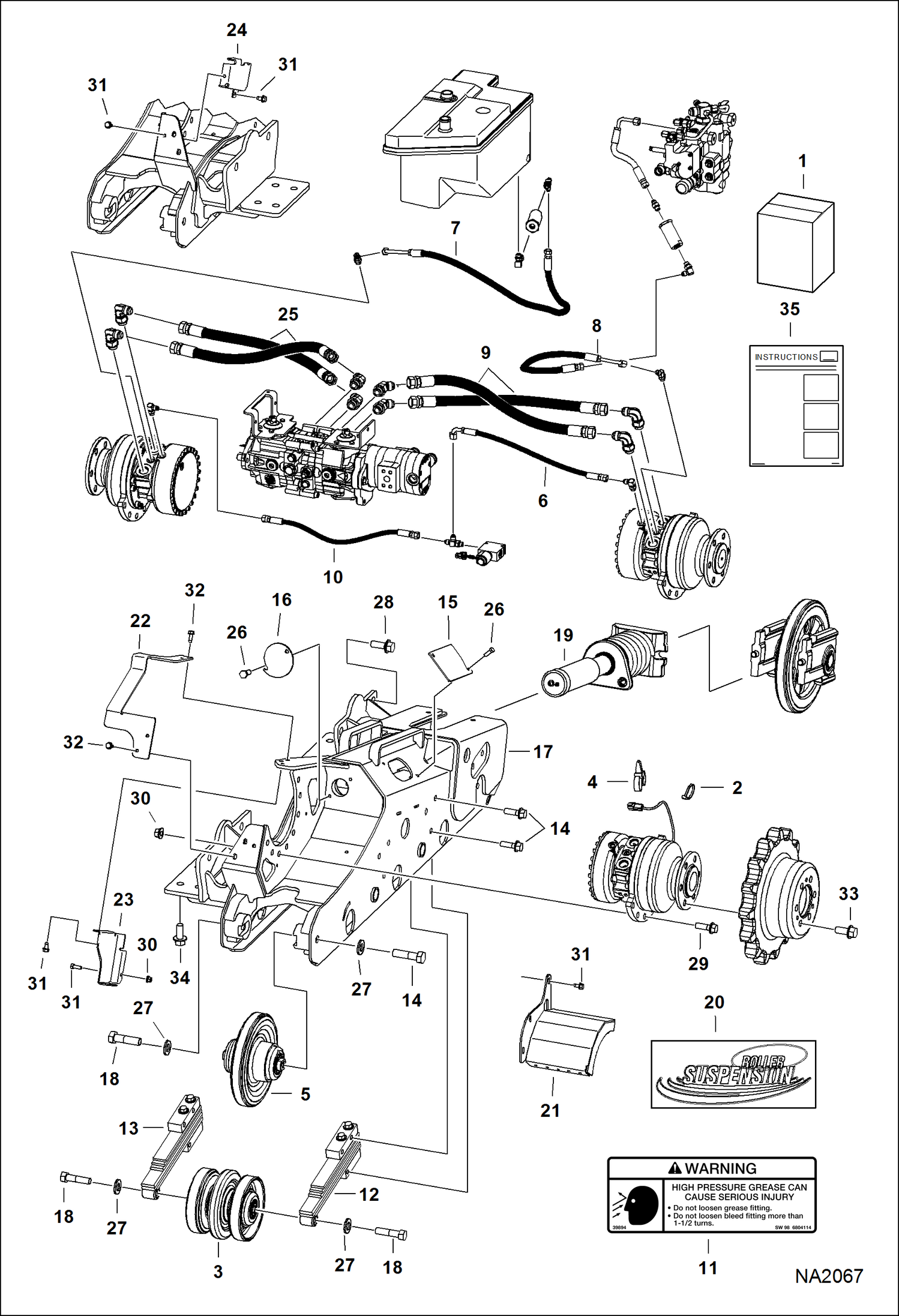

Запчасти Bobcat T-Series ROLLER SUSPENSION KIT ACCESSORIES & OPTIONS

1

KIT, ROLLER SUSPENSION NLA - Order components - Was 7169912 - A

2

6624289

STRAP, TIE

3

6693239

ROLLER ASSY

4

6678668

STRAP, DUAL TIE

5

6697933

IDLER REAR

6

7102321

HOSE Use W/ 16'' (400mm) wide track

7

7191137

HOSE, HYD Use W/ 16'' (400mm) wide track - Was 7102325 - B

8

7191138

HOSE, HYD Use W/ 16'' (400mm) wide track - Was 7102328 - B

9

7102327

HOSE Use W/ 16'' (400mm) wide track

10

7114893

HOSE Use W/ 16'' (400mm) wide track

11

7168039

DECAL, WARNING high pressure grease - Was 6804114 - A

12

7131652

SPRING, SUSPENSION RH outside - LH inside

13

7131653

SPRING, SUSPENSION LH outside - RH inside

14

7139763

SCREW

15

7137132

COVER

16

7143346

COVER, ACCESS

17

7143425

FRAME, TRACK RH

17

7143426

FRAME, TRACK LH

18

7143955

BOLT

19

7180670

TENSIONER, TRACK ASSY - Was 7144481 - A

20

7146178

DECAL roller suspension

21

7166435

SHIELD, LH LH

21

7166436

SHIELD, RH RH

22

7166480

SHIELD RH

22

7166481

SHIELD LH

23

7166557

SHIELD LH - Use W/SJC machines only

24

7166556

SHIELD RH - Use W/SJC machines only

25

6676408

HOSE, HYD 24.25'' (615,95 mm) long

26

17C616

BOLT 5

27

28E14

WASHER

28

31C1232

SCREW

29

31C1032

BOLT

30

53D10

NUT

31

84G3712

BOLT 5

32

84G3716

SCREW 5

33

31C1220

BOLT

34

31C1232

SCREW

35

INSTRUCTIONS NLA - Was 6987265 - A
