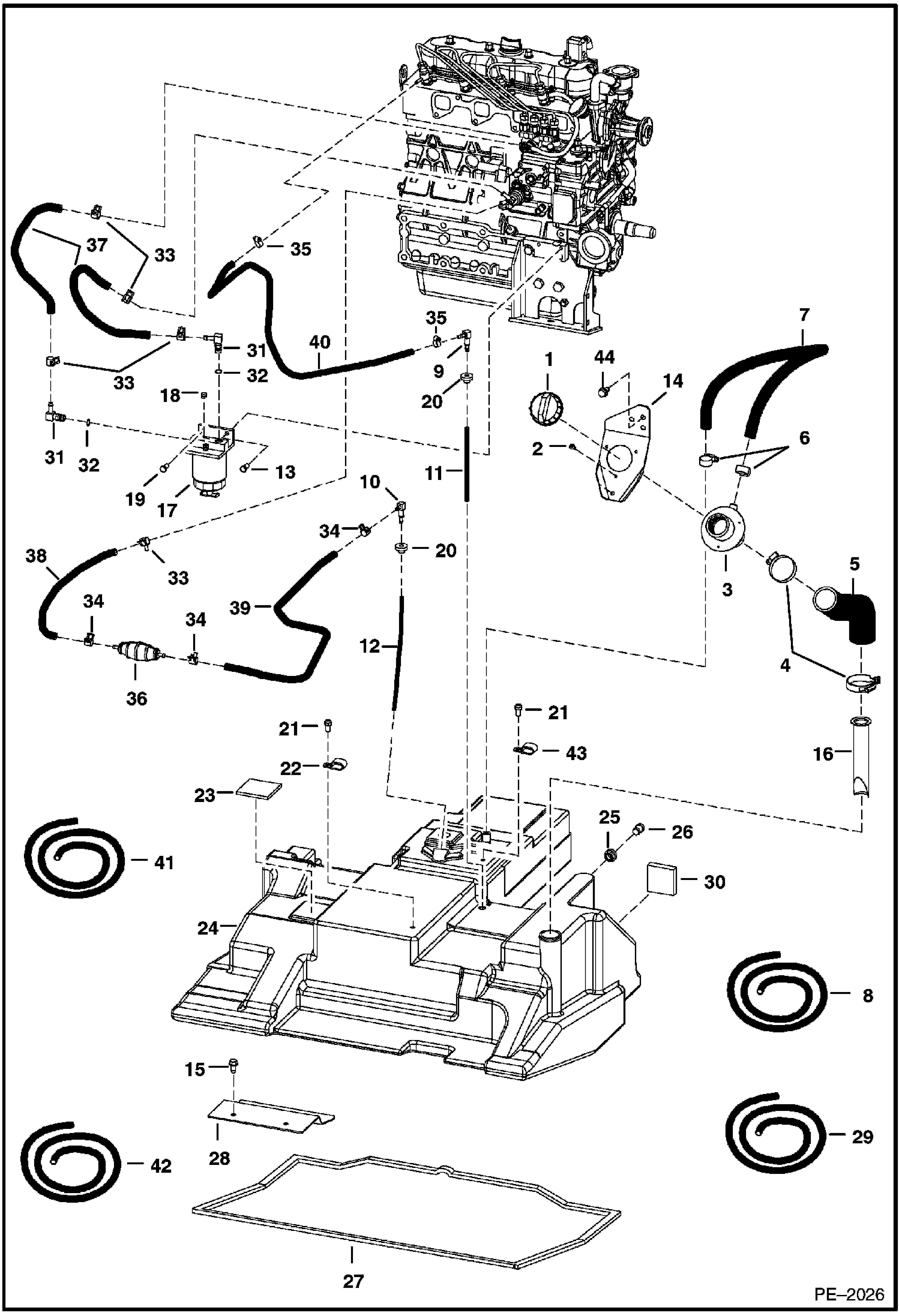

Запчасти Bobcat T-Series FUEL SYSTEM MAIN FRAME

1

6661114

CAP. DIESEL green

1

6661696

CAP, FUEL LOCKING locking - W/key - Code PK510

1

6587458

KEY Code PK510

2

7106279

BOLT Was 6706517 - B

3

6701449

FILLER TUBE

4

42H32

HS CLAMP5 worm gear

4

5HM58

CLAMP constant tension

5

6717704

HOSE

6

42H10

HOSECLAM5 worm gear

6

5HM24

CLAMP constant tension

7

HOSE NLA - 42''(1066,8 mm)long-Order Ref. 8

8

6578172

HOSE bulk - sold per foot

9

7101291

ELBOW Was 6681462 - A

10

6598908

ELBOW

11

6730767

HOSE 7'' (177,8 mm) long

12

6729854

TUBE 12.5''(317,5 mm) long

13

84G3116

SCREW

14

6731059

INLET

15

84G3712

BOLT 5

16

7120881

SCREEN, FILLER Was 6569219 - A

17

6667353

FILTER ASSY W/Ref. 18

17

6667352

FILTER, FUEL W/SEPARATOR 12

17

72F1

FITTING

18

6658180

PLUG, BLEED

19

84G3112

BOLT 5

20

6553411

BUSHING 0.38'' ID

21

17C610

BOLT

22

31H27

CLIP

23

6578278

PAD self adhesive one side

24

6683303

TANK Manual Hand Controls

24

TANK NLA - Manual Hand Contols & Selectable Joystick Controls - Order 7136806 tank, fuel - Was 7102654 - A

25

6717402

BUSHING 0.54'' ID

26

7203382

PLUG, STEEL fuel drain - .75'' shoulder - Was 6717401 - A

27

GASKET NLA - .375'' x .75'' x 106.75'' long - Was 6737760 - A

28

6737368

BRACKET

29

6578169

HOSE bulk - sold per foot - 0.19'' ID

30

6704436

PAD

31

6715183

ELBOW W/Ref. 32

32

79K5

O RING 10

33

5HM14

CLAMP

34

5HM13

CLAMP

35

42HS04

CLAMP, HOSE

36

6657734

PUMP, PRIMER HAND 124 mm (4.88'') long

37

HOSE NLA - 13'' (330,2 mm) long - Order Ref. 41

38

HOSE NLA - 23'' (584,2 mm) long - Order Ref. 42 - Was 18'' (457,2 mm) long

39

HOSE NLA - 72'' (889,0 mm) long - Order Ref. 29

40

HOSE NLA - 43'' (1346,2 mm) long - Order Ref. 42

41

6577822

HOSE bulk - sold per foot

42

6577821

HOSE bulk - sold per foot

43

30H36

CLIP

44

84G3716

SCREW 5
