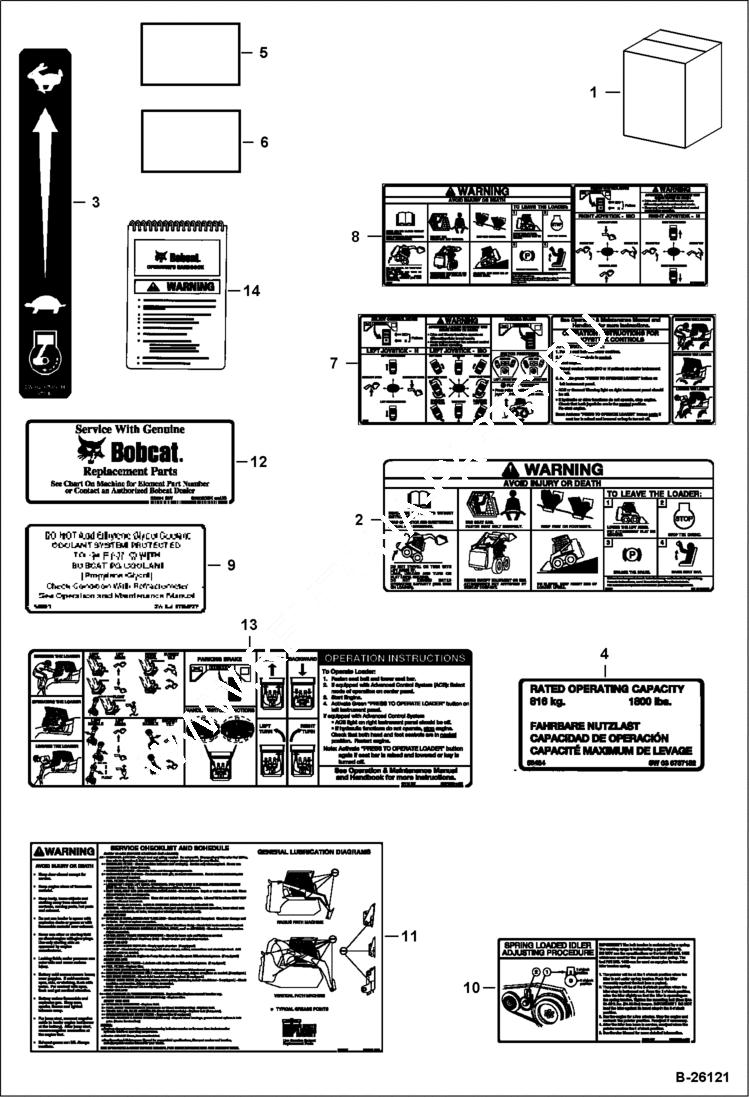

Запчасти Bobcat T-Series DECALS (Inside) ACCESSORIES & OPTIONS

1

6986500

KIT, DECAL

1

7120281AR

KIT, DECAL decal

1

7120281BR

KIT, DECAL decal

1

7120281JP

KIT, DECAL decal

1

7163299AR

KIT, DECAL

1

7163299BR

KIT, DECAL

1

7163299JP

KIT, DECAL

1

7120280AR

KIT, TRANSLATION translation

1

7120280BR

KIT, TRANSLATION T180 PORTUGUESE translation

1

7152189AR

KIT, TRANSLATION

1

7152189BR

KIT, TRANSLATION

2

6728540

DECAL, WARNING

3

6735140

DECAL, THROTTLE

4

7184774

DECAL, CAPACITY LIFT Was 6737152 - A

5

6553976

SAFETY TREAD 127 x 203 mm (5 x 8'')

6

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

7

6735256

DECAL, OPERATION seat & seat bar operation - selectable joystick controls

8

6735255

DECAL, WARNING selectable joystick controls - not in kit

9

6708929

DECAL, COOLANT propylene glycol

10

6709030

DECAL belt tension - spring loaded idler

11

6734534

DECAL, SERVICE service checklist & schedule - Was 7124877 - A

12

6565200

DECAL, FILTER not in kit

13

6727926

DECAL, OPERATION hand & foot controls - not in kit

14

6902808

HANDBOOK, OPERATOR'S W/WIRE ROPE not in kit - Was 6728607 - A

14

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve

14

6558310

SLEEVE wire rope

14

17C512

BOLT 5

14

61D5

NUT

14

84G3112

BOLT 5
