Запчасти Bobcat T-Series CONTROLS ELECTRICAL (Selectable Joystick Controls) (S/N 531460001 & Above, 531560001 & Above) ELECTRICAL SYSTEM

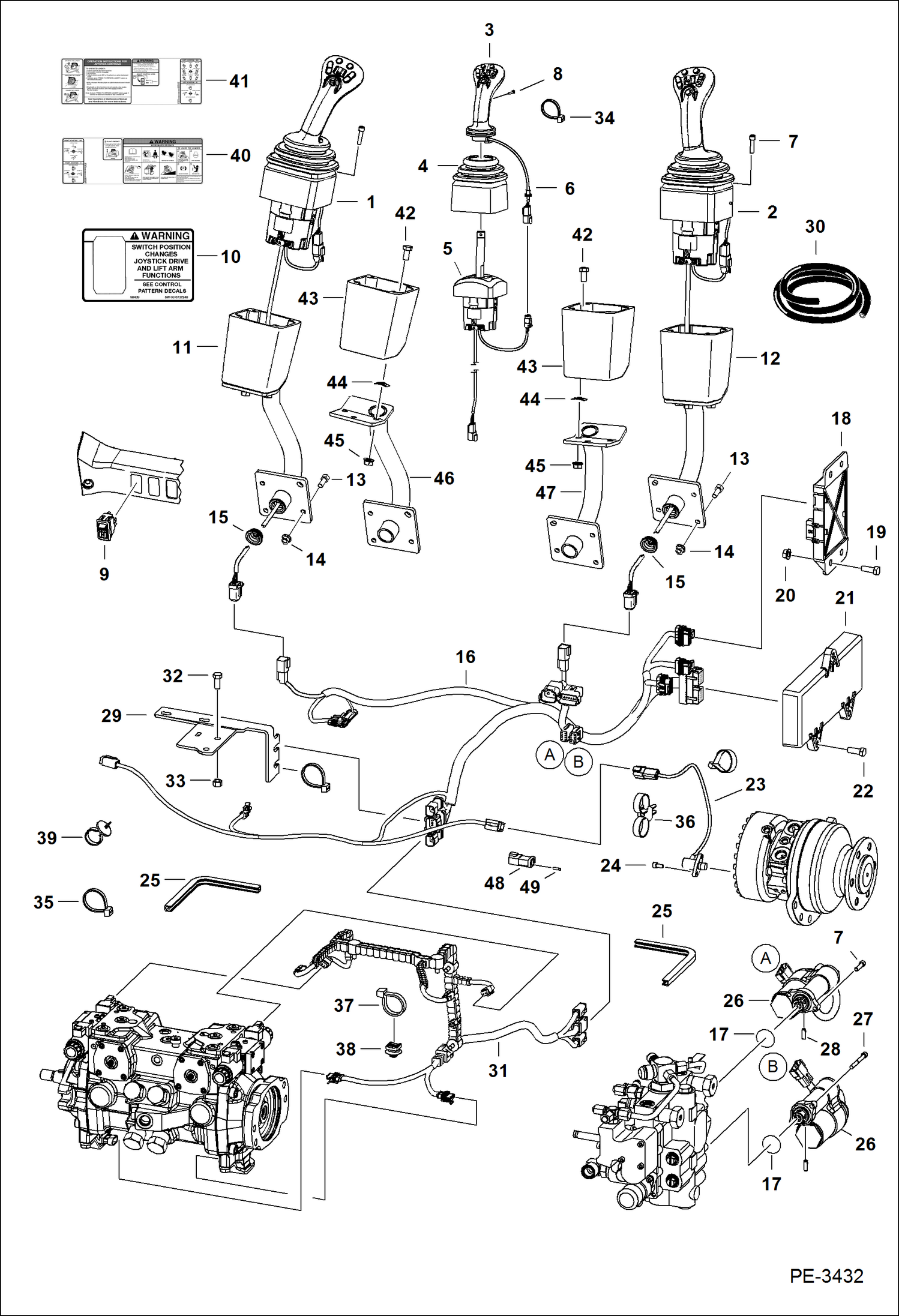

Схема запчастей Bobcat T-Series - CONTROLS ELECTRICAL (Selectable Joystick Controls) (S/N 531460001 & Above, 531560001 & Above) ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

6697904

JOYSTICK, LH Ref. 3-6 & 8

2

6697905

JOYSTICK, RH Ref. 3-6 & 8

3

6689922

HANDLE LH - W/Ref. 6

3

6689923

HANDLE RH - W/Ref. 6

4

6689926

BOOT

5

6697939

BASE, JOYSTICK RH

5

6697938

BASE, JOYSTICK LH

6

HARNESS NSS - Order Ref. 3

7

29G416

BOLT

8

6689927

BOLT

9

6683812

SWITCH

10

6737248

DECAL, WARNING selectable joystick control

11

HANDLE NLA - LH - Order Ref. 15 & 42-46 - A

12

HANDLE NLA - RH - Order Ref. 15, 42-45 & 47 - A

13

35C512

BOLT

14

89D5

NUT

15

6684294

GROMMET

16

HARNESS See BTI419 - NLA - W/Speed sensor connectors - Was 7159453 - A

16

7214134

HARNESS, SJC W/O speed sensor connectors

17

58K120

O-RING Use W/Ref. 26 - Was 6686220 - B,D

18

6680410

CONTROLLER plastic - W/ 3-connector plug

19

17C616

BOLT 5

20

97D6

NUT 10

21

6679485

CONTROLLER SJC drive - W/single 50-pin connector

22

43C616

BOLT

23

SENSOR, SPEED See BTI419 - NLA - Was 7139902

23

25K20016

O RING 10 Was 25K20100 - B,D

24

7102184

SCREW

25

MOULDING NLA - 10.5'' (267 mm) long - Order Ref. 38

26

7101672

ACTUATOR W/Ref. 17

27

69G436

BOLT

28

7108236

PIN

29

7136650

BRACKET

30

6654139

MOULDING bulk - sold per foot

31

7198706

HARNESS, PUMP Use W/hydrostatic pump Model R902095064 - W/ 3-pin oval connectors - Was 7139761 - A

31

7188448

HARNESS, PUMP Use W/hydrostatic pump Model R902136745 - W/ 3-pin triangle connectors - Was 7169309 - A

31

6664969

CONNECTOR 8-pin

31

6664185

CONNECTOR 2-pin

31

6687268

FEMALE CONNECTOR 3-pin oval - Use W/Ref. 31 (7198706 harness)

31

6664801

CONNECTOR 3-pin triangle - Use W/Ref. 31 (7188448 harness)

31

6691421

FEMALE CONNECTOR grey - 4-pin rectangular

31

6662248

4 PIN PLUG black

32

17C614

BOLT

33

95D6

NUT

34

6691589

100 TIE packaged as 100 pieces

35

6624289

STRAP, TIE

36

6690688

TREE MOUNT dual strap

37

6690690

STRAP, TIE

38

6690688

TREE MOUNT

38

7015668

MOUNT, STRAP TIE push in - Use W/tie strap - Was 6678666 - B

39

6675734

STRAP, TIE

40

7131520

DECAL

41

7131521

DECAL

42

17C612

BOLT 5

43

7124929

BASE

44

6684033

NUT retaining

45

97D6

NUT 10

46

7123817

MOUNT LH

47

7123816

MOUNT RH

48

6691419

CONNECTOR, ELECTRICAL

49

6665370

PLUG

Выбрано товаров: 61
