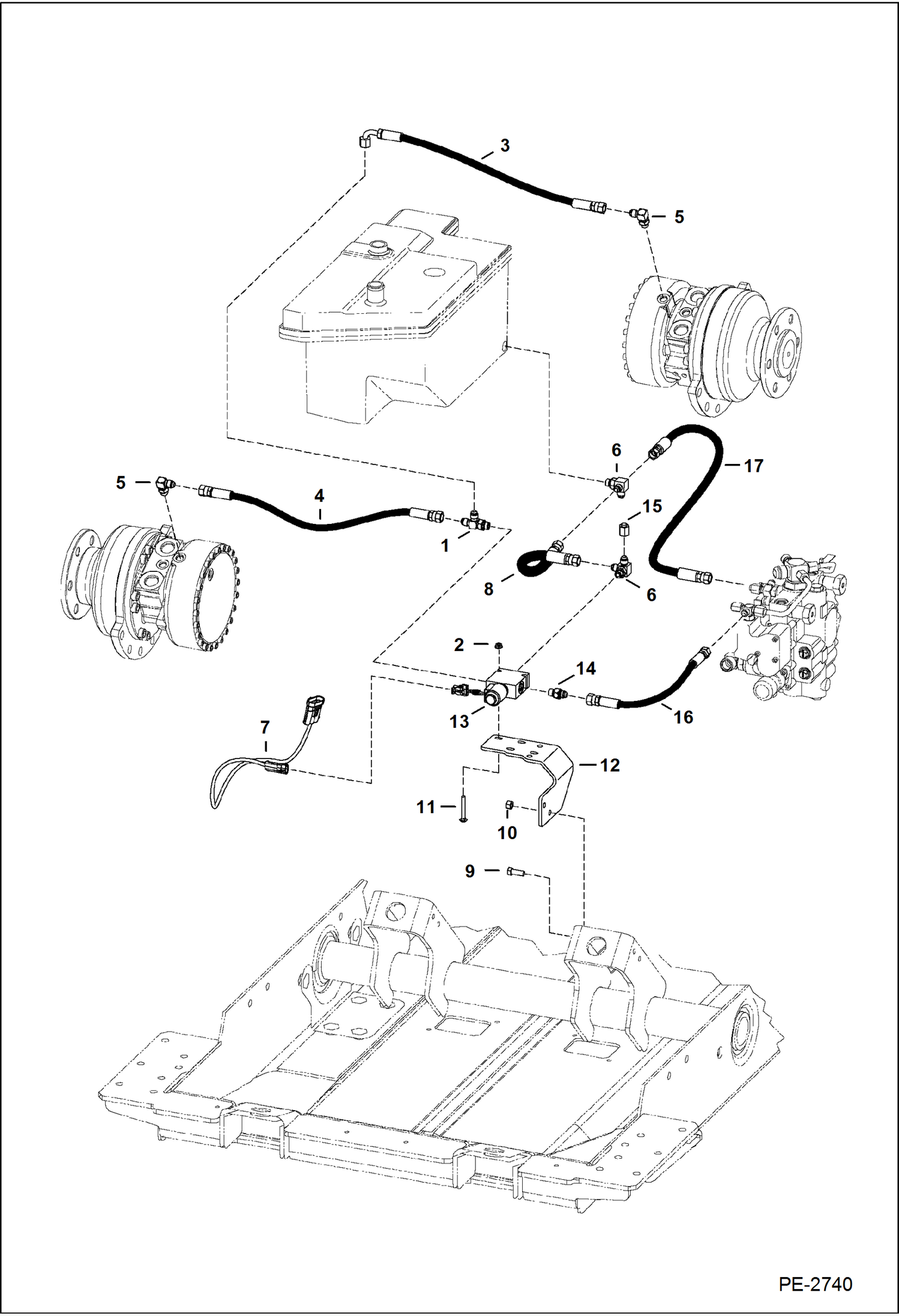

Запчасти Bobcat T-Series HYDROSTATIC CIRCUITRY (Brake Valve) HYDROSTATIC SYSTEM

1

21KB0606

FTG HYD STRAIGHT TEE

1

79K6

O RING 10

2

55D4

NUT

3

7114892

HOSE 23.50'' (596,9 mm) long - Use W/ 12'' (320 mm) wide tracks

3

7114893

HOSE 26'' (660,4 mm) long - Use W/ 16'' (400 mm) wide tracks

4

7157318

HOSE 21.50'' (546,1 mm) long - Use W/ 12'' (320 mm) wide tracks - Was 6732115 - A

4

7102321

HOSE 24'' (609,6 mm) long - Use W/ 16'' (400 mm) wide tracks

5

17KB0606

FITTING

5

79K6

O RING 10

6

6725182

TEE

6

79K6

O RING 10

7

7115894

HARNESS brake valve

8

6815887

HOSE

9

17C616

BOLT 5

10

61D6

NUT 5

11

37C432

SCREW

12

7110926

BRACKET

13

6679103

VALVE, BRAKE

13

6675731

COIL

13

6668820

NUT

13

6669736

SEAL KIT

14

6669676

CHECK VALVE

14

79K6

O RING 10

15

36K5

CAP

16

6803157

HOSE ASSY

17

7108406

HOSE
