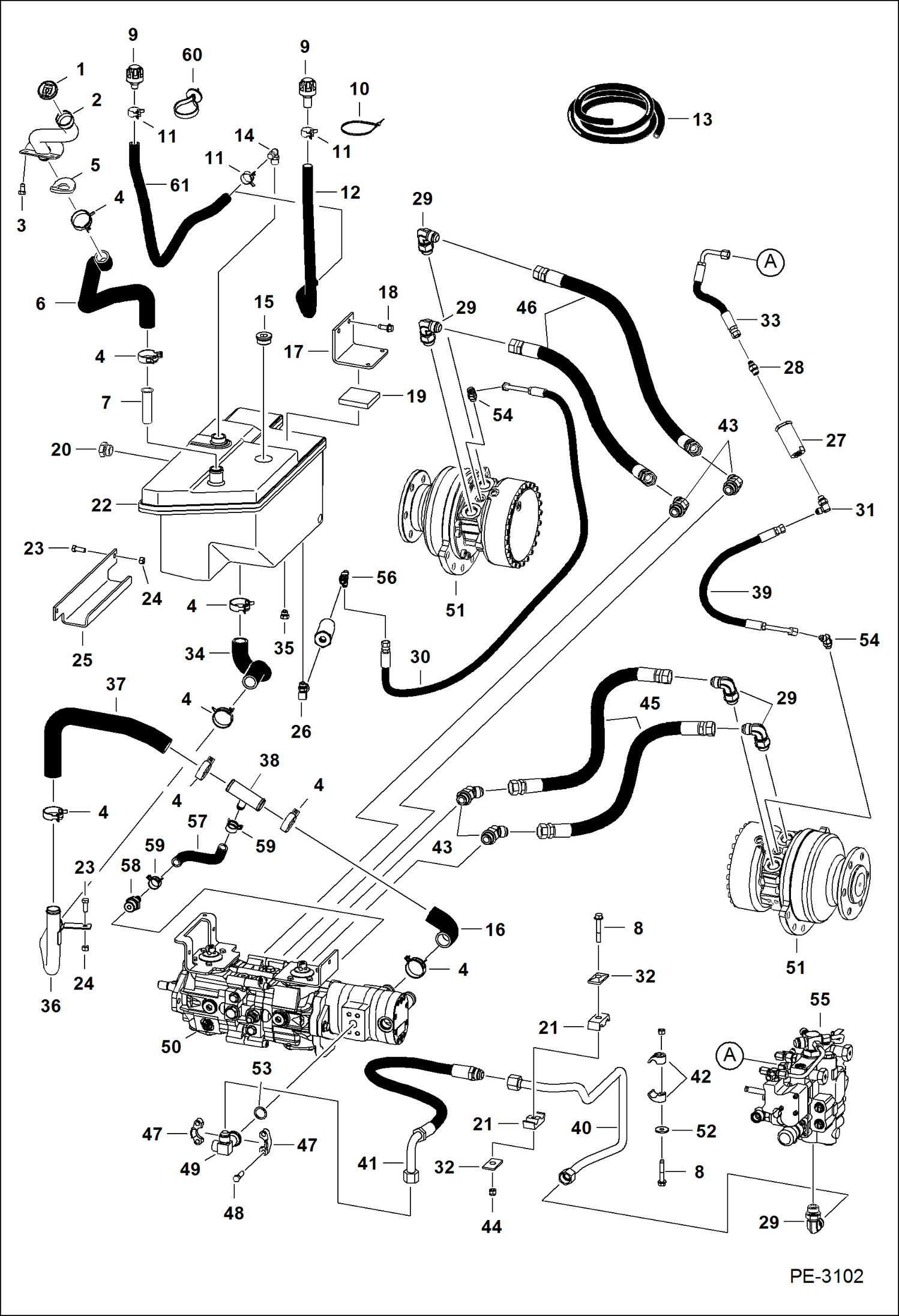

Запчасти Bobcat T-Series HYDROSTATIC CIRCUITRY (Manual Controls) (S/N 531411582 & Above, 531511109 & Above) HYDROSTATIC SYSTEM

1

6717827

CAP

2

6717830

TUBE

3

84G3710

SCREW

4

5HM42

HOSECLAMP

5

6718772

GASKET

6

6718020

HOSE

7

6732215

FILTER

8

17C644

BOLT

9

7025626

VENT, BREATHER - Was 6684923 - A

10

6610510

TIE

11

5HM24

CLAMP

12

HOSE NLA - 21.5'' (546,1 mm) long - Order 3 ft. of Ref. 13 & Ref. 60

13

6578172

HOSE bulk - sold per foot

14

6727637

ELBOW barbed

15

47K10

PLUG

15

79K16

O RING 10

16

7124128

HOSE

17

6726254

BRACKET

18

84G3716

SCREW 5

19

6726255

PAD bumper

20

6665915

GAUGE

20

79K12

O RING 10

20

6734563

WASHER KIT

20

6734561

WASHER

20

25K30118

O RING 10

21

6592506

CLAMP

22

6728673

TANK

23

17C616

BOLT 5

24

61D6

NUT 5

25

6726162

BRACKET

26

6715190

ELBOW

26

79K6

O RING 10

27

6661022

FILTER, OIL HYD IN-LINE

28

15KB0606

FITTING, HYD CONNECTOR

28

79K6

O RING 10

29

7101797

ELBOW

29

75K12

O'RING 10

30

7191135

HOSE, HYD Was 6726271 - B

31

17KB0606

FITTING

31

79K6

O RING 10

32

6592507

PLATE

33

6542521

HOSE

34

6717905

HOSE

35

24K5

PLUG

35

79K6

O RING 10

36

6726159

TUBE

37

7124129

HOSE

38

7124127

TEE

38

79K16

O RING 10

39

7191136

HOSE, HYD Was 6726276 - B

40

7109922

TUBE Use W/ ''H'' style control valve mount

41

6733197

HOSE 30''(762 mm) long

41

7115185

HOSE 31'' (787,4 mm) long - Power Bob-Tach option - Was 6727656 - B,D

42

7100462

CLAMP

43

6737453

ELBOW

43

79K12

O RING 10

44

83D6

NUT 5

45

6676408

HOSE, HYD 24.25'' (615,95 mm) long

45

7102327

HOSE See Illustration WIDE TRACK KIT/ PE3244 26.75'' (679,5 mm) long - wide track option

46

6676407

HOSE 22.25'' (565,15 mm) long

46

6676408

HOSE, HYD See Illustration WIDE TRACK KIT/ PE3244 - 24.25'' (615,9 mm) long - wide track option - Was 7102326 - A

47

19J12

CLAMP

48

17C620

BOLT

49

7106040

ELBOW split flange - one leg

49

7113262

ELBOW split flange - two leg - Use W/hydraulic muffler hose

50

PUMP See Illustration HYDROSTATIC PUMP/ B17103

51

MOTOR

52

619021

WASHER, 5

53

55K214

O-RING

54

18KB0606

FITTING, HYD ELBOW

54

79K6

O RING 10

55

VALVE See Illustration HYDRAULIC CONTROL VALVE/ PE2734

56

21KB0606

FTG HYD STRAIGHT TEE

56

79K6

O RING 10

57

7124130

HOSE

58

7124133

ADAPTER

58

79K12

O RING 10

59

5HM23

CLAMP

60

6675734

STRAP, TIE button head

61

HOSE NLA - 28'' (711,2 mm) long - Order Ref.13
