Запчасти Bobcat T-Series TRACK TENSIONER (Roller Suspension Undercarriage) DRIVE TRAIN

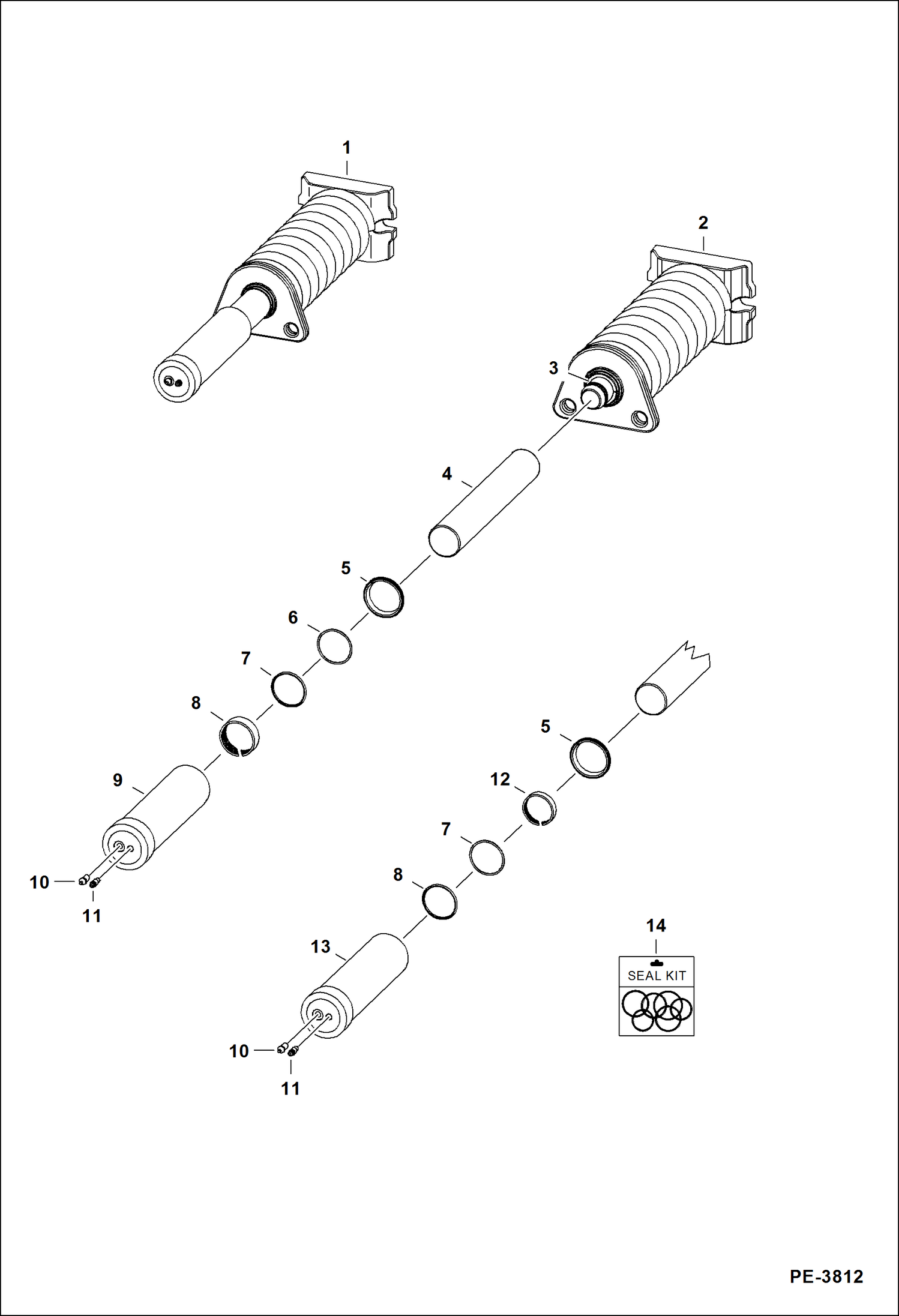

Схема запчастей Bobcat T-Series - TRACK TENSIONER (Roller Suspension Undercarriage) DRIVE TRAIN

Артикул

Название

Примечание

Количество

1

TENSIONER, TRACK ASSY - NLA - Order 7180670 tensioner - W/Ref. 2-12 - Was 7144481

1

7227895

TENSIONER, TRACK ASSY Ref. 2-7 & 10-13 - Was 7180674 - A

2

COIL SPRING ASSY NSS - Order Ref. 1

3

25K30118

O RING 10 not in seal kit

4

7135154

SHAFT, CHROME

5

6686968

SEAL, WIPER ROD

6

6685154

RING, BACK-UP

7

6672338

O-RING

8

7000773

RING, WEAR .75'' (19,05 mm) wide - Use W/Ref. 1 (NLA/ 7144481 tensioner)

9

TUBE, GREASE NLA - Use W/Ref. 1 (NLA 7144481 tensioner) - Order Ref. 13 & 14 - Was 7141441 - A

10

6655752

FITTING 68,900 kpa (10,000 psi) - DO NOT SUBSTITUTE

11

6645812

SCREW, BLEED

12

6688839

WEAR RING 9,53 mm (0.38'') wide - Use W/Ref. 1 (7180670 tensioner)

13

7180325

TUBE, TENSIONER Use W/Ref. 1 (7180670 tensioner)

14

7163219

KIT, SEAL Was 7163394 - D

Выбрано товаров: 15
