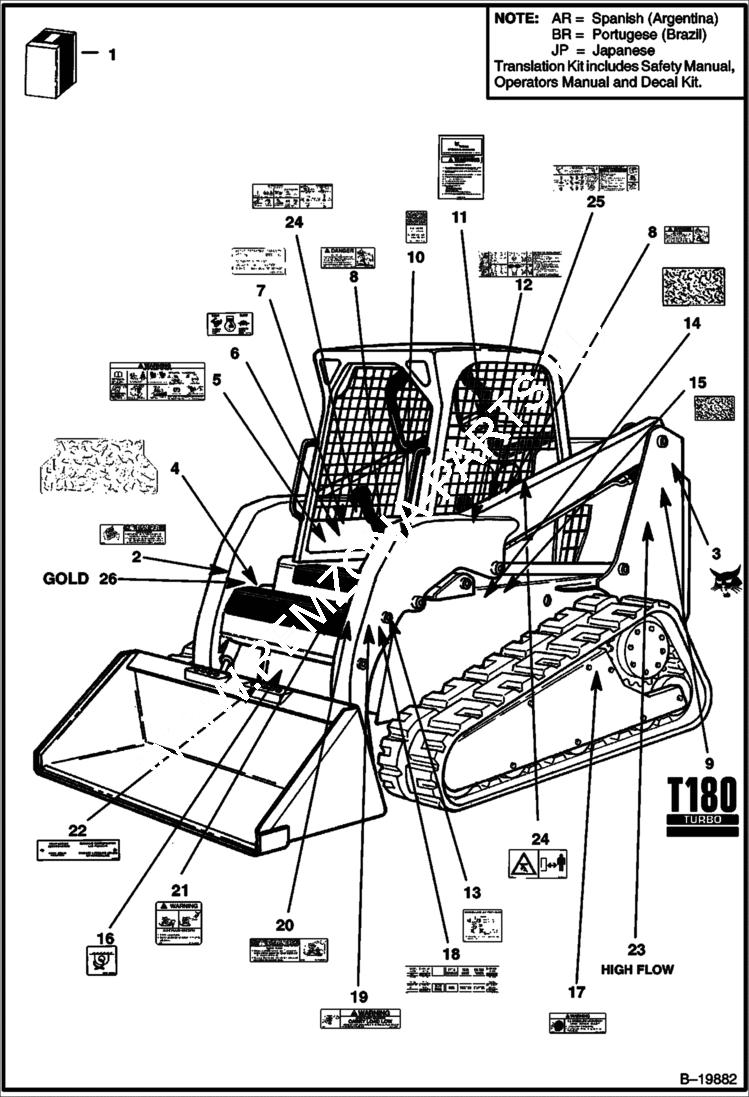

Запчасти Bobcat T-Series DECALS ACCESSORIES & OPTIONS

1

6902622

KIT decal

1

6736979AR

KIT decal - SEE NOTE

1

6736979BR

KIT decal - SEE NOTE

1

6736979JP

KIT decal - SEE NOTE

1

7105830AR

KIT, TRANSLATION translation - SEE NOTE - Was 6736797AR - A

1

7105830BR

KIT, TRANSLATION translation - SEE NOTE - Was 6736797BR - A

2

6718392

DECAL, DANGER

3

6731508

DECAL LH - Bobcat head - black

4

SAFETY TREAD NLA - 12'' x 25.30'' (304,8 mm x 642,6 mm) - Order 7108222 - Was 6712791 - A

4

7108222

SAFETY TREAD 22.5'' (571,5 mm) wide irregular shape

5

6728540

DECAL, WARNING

6

6735140

DECAL, THROTTLE

7

7184774

DECAL, CAPACITY LIFT Was 6737152 - A

8

6717343

DECAL, DANGER

9

6736705

DECAL model number

10

6711840

DECAL lift lock

11

6902808

HANDBOOK, OPERATOR'S W/WIRE ROPE not in kit - Was 6728607 - A

11

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve

11

6558310

SLEEVE wire rope

11

17C512

BOLT 5

11

61D5

NUT

11

84G3112

BOLT 5

12

6727926

DECAL, OPERATION hand & foot controls - not in kit

13

6731757

DECAL, OPERATION to release auxiliary hyd. pressure - not in kit

14

6553976

SAFETY TREAD 127 x 203 mm (5 x 8'')

15

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

16

6727595

DECAL Was 6595014 - A

17

7168039

DECAL, WARNING See Illustration DECALS/ NA6216 - high pressure grease - Was 6804114 - A

18

6718774

DECAL fuse/relay - Not in Kit

19

6718391

DECAL, WARNING carry load low

20

6718393

DECAL, DANGER

21

6718396

DECAL, WARNING no riders

22

6561383

DECAL, OPERATION 5 Bob-Tach locking levers

23

6727913

DECAL hi-flow - Not in Kit

24

6735255

DECAL, WARNING selectable joystick controls - not in kit

25

6735256

DECAL, OPERATION seat & seat bar operation - selectable joystick controls

26

6735862

DECAL gold package
