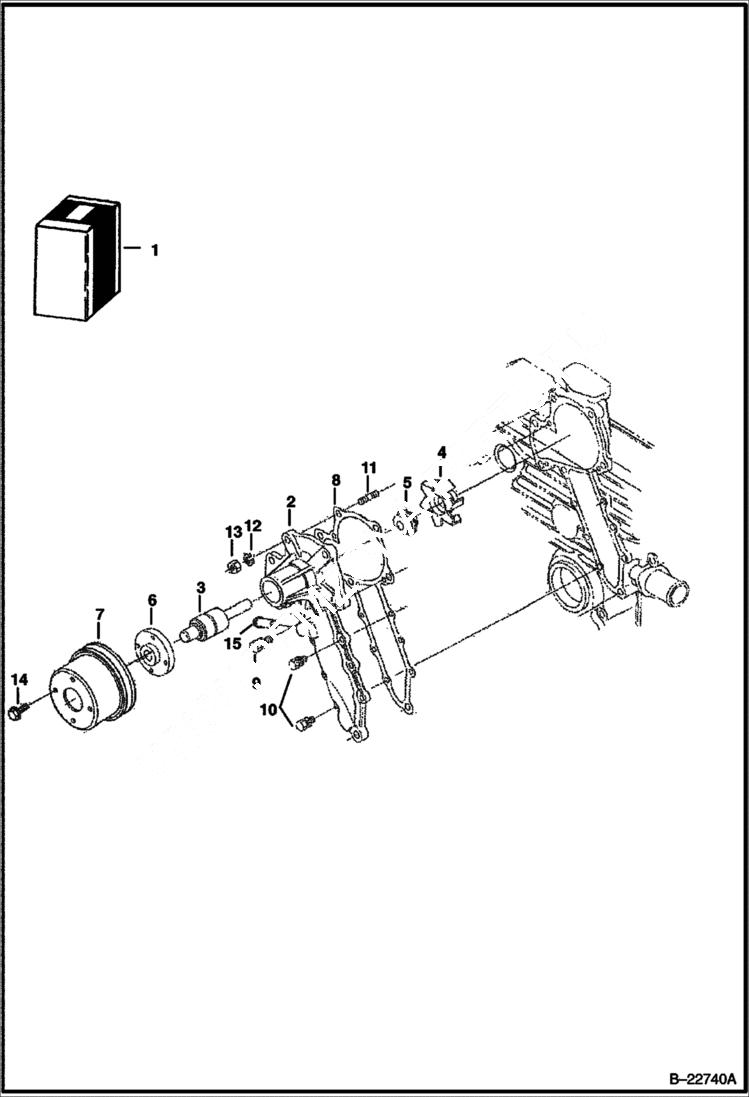

Запчасти Bobcat T-Series WATER PUMP (Kubota - V2403TMDI) POWER UNIT

1

6684865

PUMP, WATER Ref. 2-6

2

PUMP NLA - order assembly - Was 6684866 - A

3

3974991

BEARING

4

6667460

IMPELLER Was 6684867 - A

5

6684868

SEAL

6

6684869

FLANGE

7

6674169

PULLEY water pump - Was 6598155 - A

8

6684870

GASKET

9

4CM828

BOLT

10

6652580

BOLT

11

3974267

STUD Was 6653946 - A

12

6667422

WASHER spring

13

6652792

NUT

14

29CM612

BOLT, FLANGED Was 6652762 - A

15

6670785

PIPE
