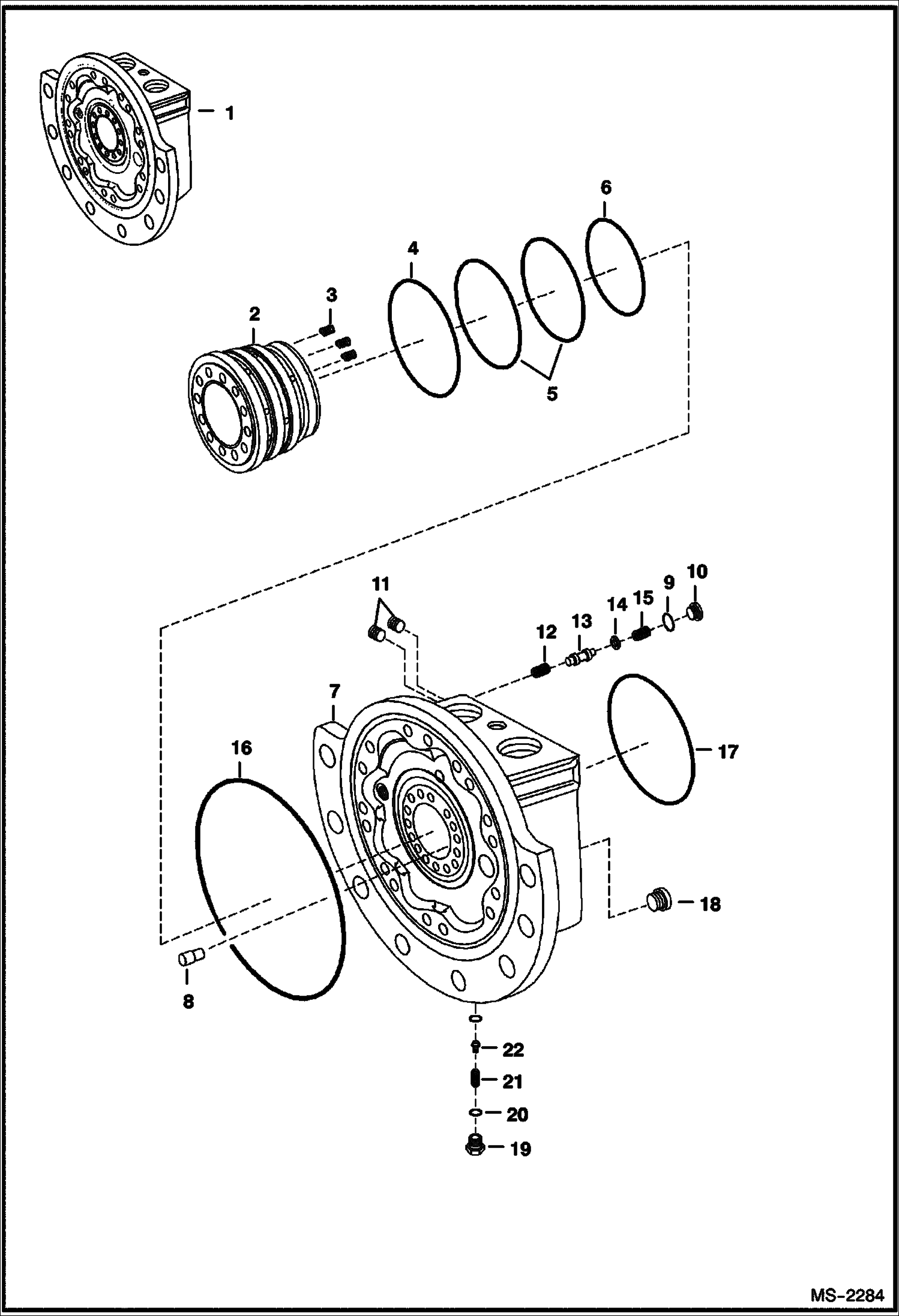

Запчасти Bobcat T-Series HYDROSTATIC MOTOR (Rotor Group & Rear Housing) HYDROSTATIC SYSTEM

1

6691108

CASE rear - Ref. 2 - 22

2

6674184

RING

3

6674037

SPRING

4

6675227

SEAL W/ O-ring - 105,0 mm dia. - fits into Ref. 7

5

6675228

SEAL W/ O-ring - 96,5 mm dia. - fits onto Ref. 2

6

6675229

SEAL W/ O-ring - 87,15 mm dia. - fits into Ref. 7

7

6691097

HOUSING

8

6675189

PIN stop

9

6675093

O-RING

10

6678149

PLUG .375'' - W/Ref. 9

11

6678115

PLUG 8 mm

12

6678124

SPRING

13

6675866

SPOOL

14

6678137

WASHER

15

6678125

SPRING

16

6675864

QUAD RING

17

6675863

QUAD RING

18

6689129

PLUG

19

6674345

PLUG

20

6676038

O-RING Was 6689132 - A

21

6674344

SPRING

22

6678123

POPPET
