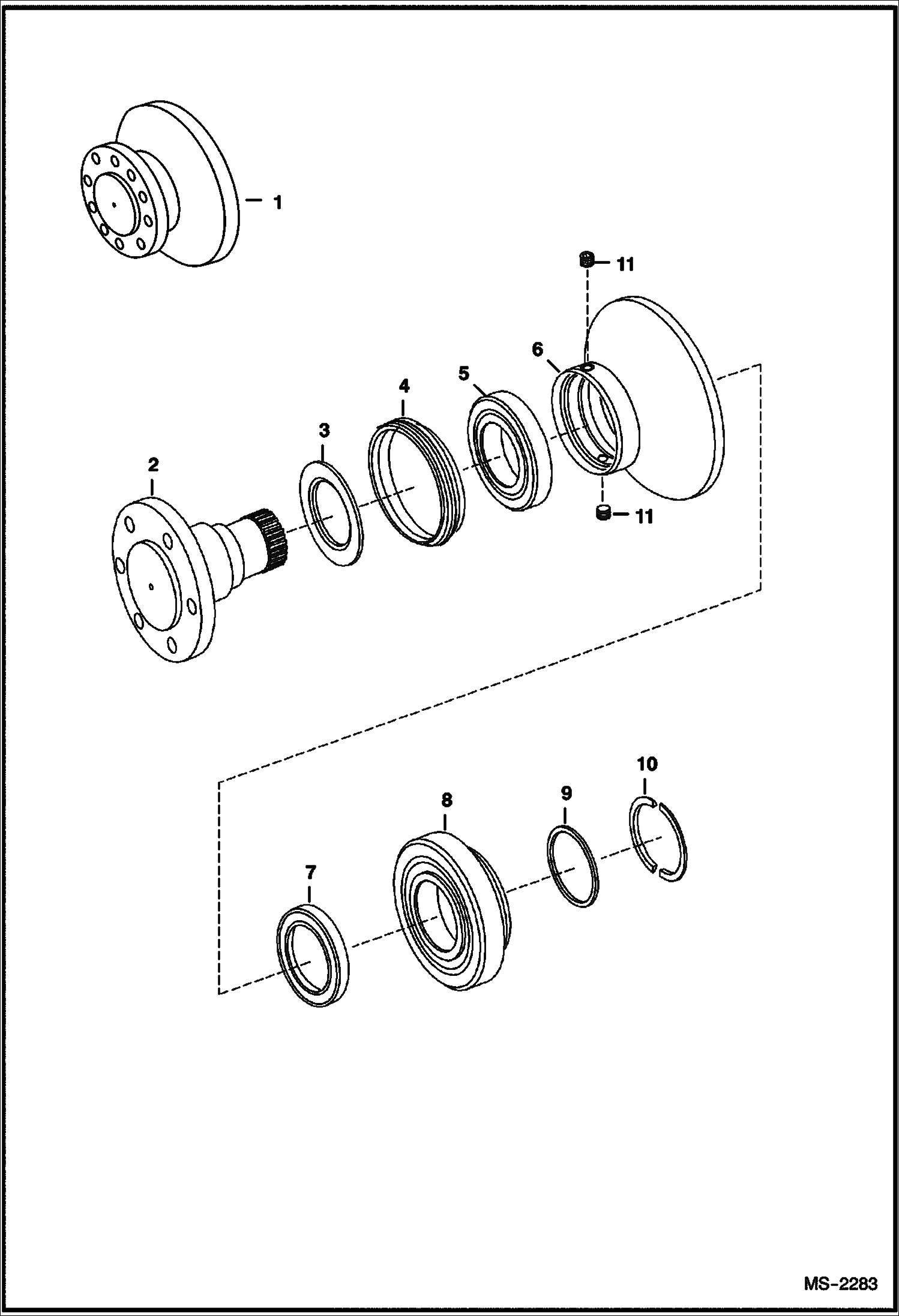

Запчасти Bobcat T-Series HYDROSTATIC MOTOR (Front Housing) HYDROSTATIC SYSTEM

1

CASE See Illustration HYDROSTATIC MOTOR/ B20897A NLA - Order 6681980 front assy. - Ref. 2-12 - Was 6681980 - A

1

7024981

OIL, SYNTHETIC DRIVE MOTOR 4 236 ml (8 oz) - Was 7003026 - A

2

6681982

SHAFT

3

6681984

BUSHING

4

6686367

SEAL, DUO-CON FACE face - duo cone

5

6681985

BEARING Was 6686365 - A

6

6681983

CASE

7

6678135

SEAL shaft

8

6677865

BEARING Was 6686366 - A

9

WASHER NLA - 2.25 mm - Order 6689092 washer kit - Was 6678118 - A

9

WASHER NLA - 2.35 mm - Order 6689092 washer kit - Was 6678120 - A

9

WASHER NLA - 2.45 mm - Order 6689092 washer kit - Was 6678119 - A

9

WASHER, PRELOAD NLA - 2.55 mm - Order 6689092 washer kit - Was 6686364 - A

9

WASHER, PRELOAD NLA - 2.85 mm - Order 6689092 washer kit - Was 6686362 - A

9

WASHER, PRELOAD NLA - 3.00 mm - Order 6689092 washer kit - Was 6686363 - A

10

6677849

RING

11

6680019

PLUG pressure
