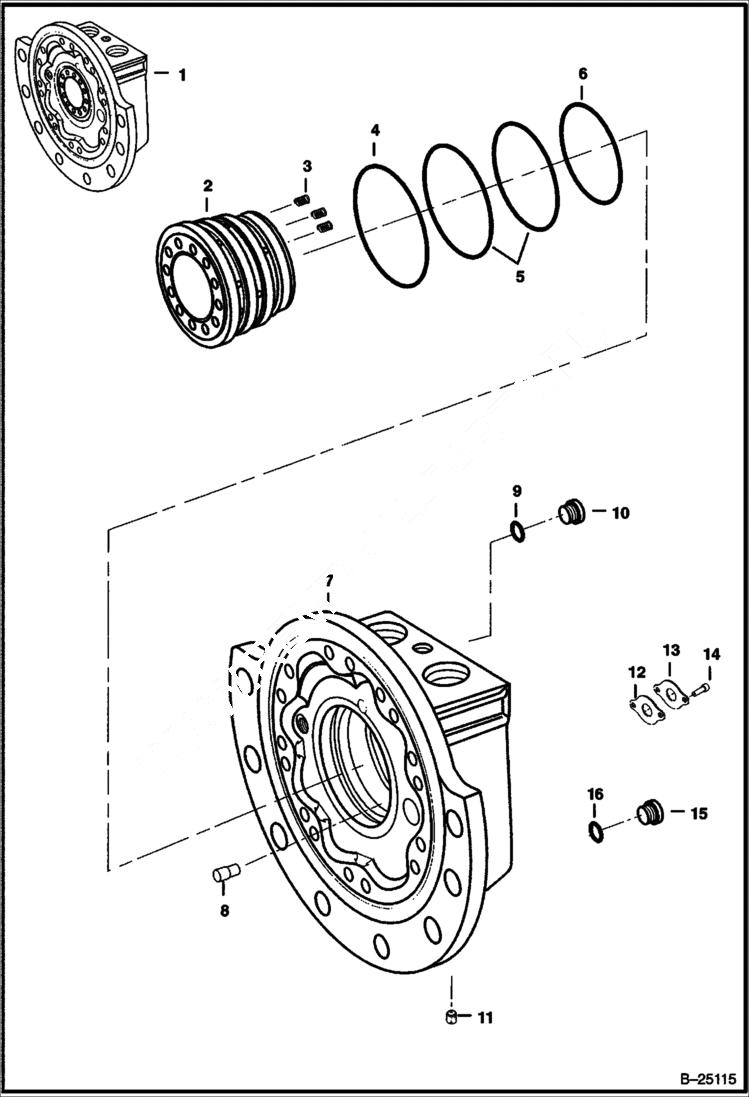

Запчасти Bobcat T-Series HYDROSTATIC MOTOR (Rotor Group & Rear Housing) HYDROSTATIC SYSTEM

1

6686361

CASE, REAR REAR - REF. 2 - 11

2

6674184

RING

3

6674037

SPRING

4

6675227

SEAL W/ O-ring - 105,0 mm dia. - fits into Ref. 7

5

6675228

SEAL W/ O-ring - 96,5 mm dia. - fits onto Ref. 2

6

6675229

SEAL W/ O-ring - 87,15 mm dia. - fits into Ref. 7

7

6686368

HOUSING, REAR

8

6675189

PIN stop

9

6675093

O-RING

10

6678149

PLUG .375'' - W/Ref. 9

11

6678115

PLUG 8 mm

12

6688377

GASKET

13

6688716

COVER Was 6688376 - A

14

6688718

BOLT

15

90KV5

PLUG W/Ref. 16

16

95K6

O'RING
