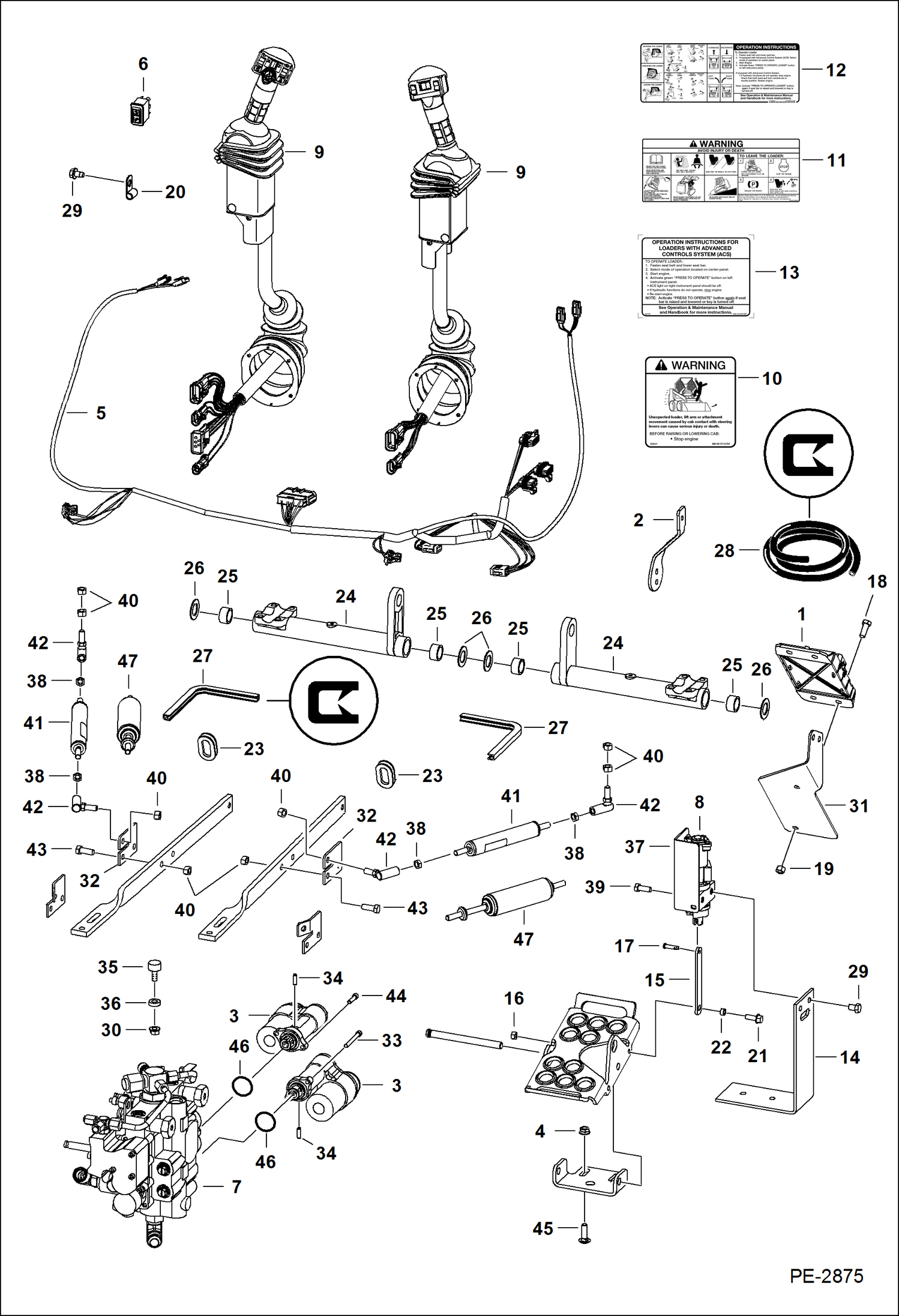

Запчасти Bobcat T-Series CONTROLS ELECTRICAL (AHC) (ACS) ELECTRICAL SYSTEM

1

6680410

CONTROLLER plastic - W/ 3-connector plug

2

6717393

LEVER throttle

3

7101672

ACTUATOR W/Ref. 46

4

57D6

NUT 5

5

6733430

HARNESS

6

6676537

SWITCH

7

VALVE

8

6684912

SENSOR, FOOT RH See Illustration CONTROLS ELECTRICAL/ PE1553

8

6676029

SOLENOID, LOCK SPOOL

8

6684911

SENSOR, FOOT LH See Illustration CONTROLS ELECTRICAL/ PE1553

8

6676029

SOLENOID, LOCK SPOOL

9

6684915

LEVER, ACS RH See Illustration CONTROLS ELECTRICAL/ PE1365 - tilt - RH

9

6684916

LEVER, ACS LH See Illustration CONTROLS ELECTRICAL/ PE1365 - lift - LH

10

6718706

DECAL, WARNING raising cab

11

6728540

DECAL, WARNING

11

6734646

DECAL, WARNING selectable joystick controls

12

6727926

DECAL, OPERATION hand & foot controls

13

6727926

DECAL, OPERATION hand & foot controls - A

14

7126869

BRACKET Was 6726573 - A

15

6726681

LINK

16

95D5

NUT

17

6727496

PIN

18

17C616

BOLT 5

19

95D6

NUT

20

30H38

CLIP

21

35C514

BOLT Was 17C000514B - B,D

22

6729467

SPACER

23

6714726

GROMMET

24

BELLCRANK NLA - Use W/Ref. 25 (6673710 bearing) - Order 7110571 bellcrank & (2) of Ref. 25 (6703879 bushing) - Was 7110572 - A

24

7110571

BELLCRANK, STEERING W/notch for Ref. 25 (6703879 bushing)

25

6673710

BEARING, NEEDLE Use W/Ref. 24 (NLA/ 7110572 bellcrank)

25

6703879

BUSHING, PLASTIC W/tab - Use W/Ref. 24 (7110571 bellcrank)

26

6716916

WASHER plastic

27

MOULDING NLA - 10.5'' (266,7mm) long - Order Ref.28

28

6654139

MOULDING bulk - sold per foot

29

17C612

BOLT 5

30

98D6

NUT

31

6727580

MOUNT

32

7107987

BRACKET

33

69G436

BOLT

34

7108236

PIN

35

6673789

BEARING

36

7100699

WASHER

37

6680478

SHIELD RH

37

6680479

SHIELD LH

38

8D6

NUT 5

39

43C408

BOLT

40

62D6

NUT 5

41

GAS SPRING NLA - Japan Option - Order Ref. 47 - Was 6649551 - A

42

6599744

BALL JOINT

43

18C616

BOLT 5

44

29G416

BOLT

45

37C620

BOLT

46

58K120

O-RING Use W/Ref. 3

47

7188108

GAS SPRING
