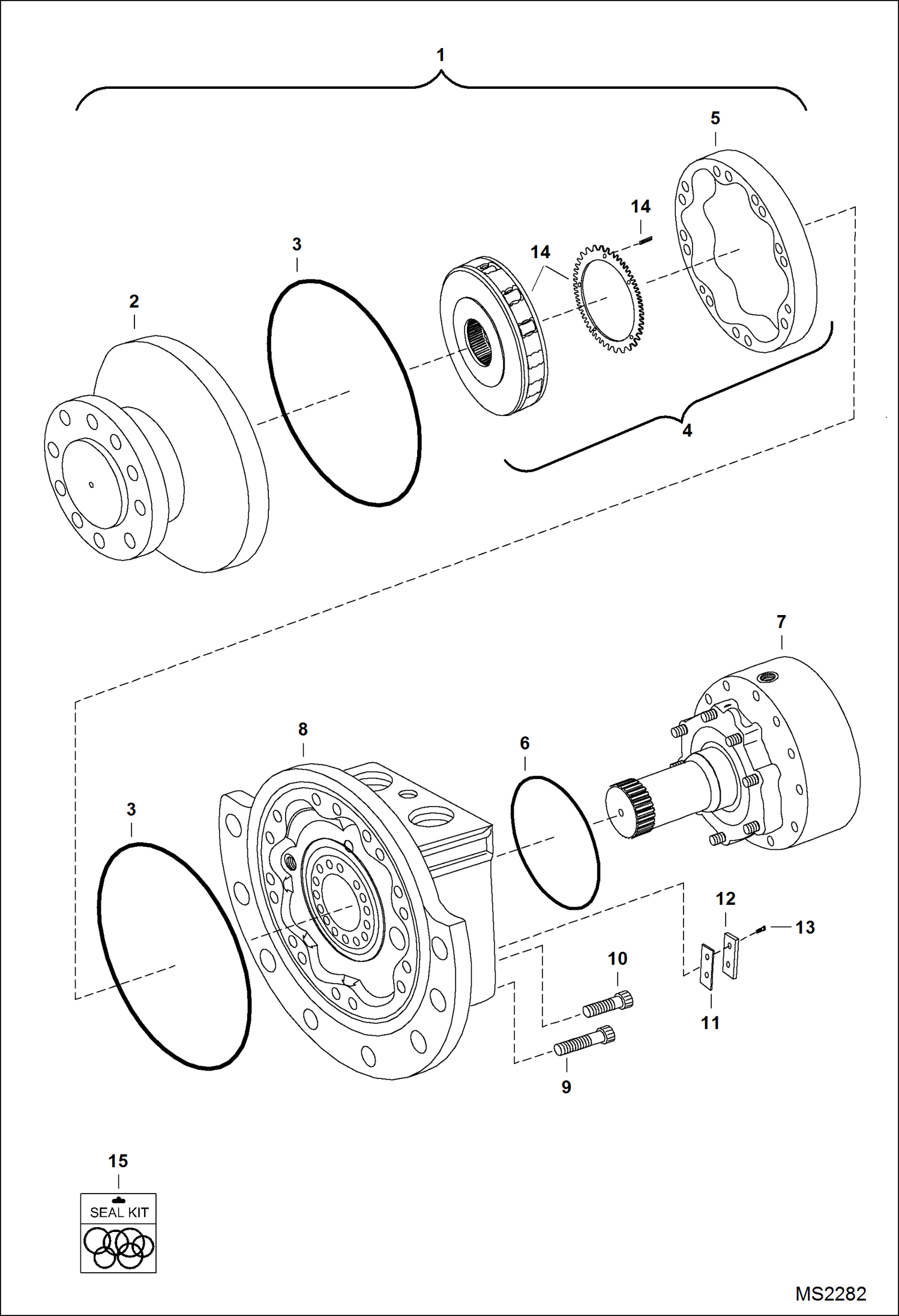

Запчасти Bobcat T-Series HYDROSTATIC MOTOR HYDROSTATIC SYSTEM

1

6686384

MOTOR, DRIVE HYD R921810311

2

CASE See Illustration HYDROSTATIC MOTOR/ B20897 See Illustration HYDROSTATIC MOTOR/ MS2283 NLA - Order 6681980 front case assy - R921810311 motor - Was 6681980 - A

2

7024981

OIL, SYNTHETIC DRIVE MOTOR 4 236 ml (8 oz) - Was 7003026 - A

3

6675864

QUAD RING

4

ROTARY GROUP NSS - Order Ref. 14

5

6678132

CAM

6

6675863

QUAD RING

7

6691109

BRAKE See Illustration HYDROSTATIC MOTOR/ MS2286

8

6691108

CASE See Illustration HYDROSTATIC MOTOR/ MS2284 rear

9

6687080

SCREW Was 6691096 - A

10

6678959

BOLT Was 6691095 - D

11

6688717

GASKET

12

6688716

COVER

13

6688718

BOLT

14

6691093

ROTARY GROUP does not include Ref. 5

15

6686476

KIT, SEAL includes Ref. 3, 6 & 16 on this page - also includes Ref. 15, 18 & 20 on illustration MS2286, Ref. 4 & 7 on illustration MS2283 and Ref. 4-6, 9 & 10 on illustration MS2284
