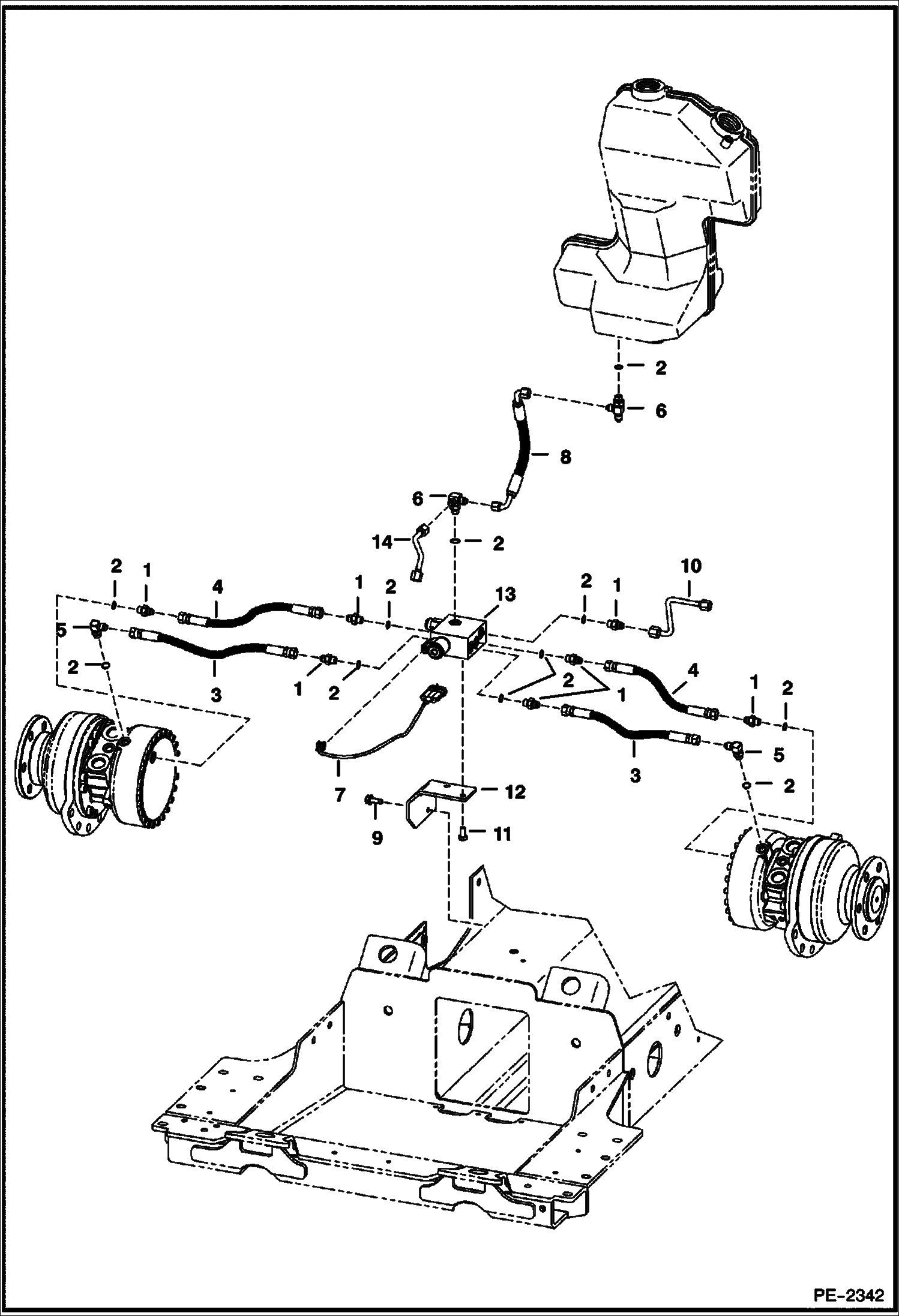

Запчасти Bobcat T-Series HYDROSTATIC CIRCUITRY (Brake Valve) HYDROSTATIC SYSTEM

1

15KB0606

FITTING, HYD CONNECTOR W/Ref. 2

2

79K6

O RING 10

3

6736063

HOSE

4

6736064

HOSE

5

17KB0606

FITTING W/Ref. 2

6

6725182

TEE W/Ref. 2

7

6732781

HARNESS brake valve - Was 6716789 - A

8

6736320

HOSE

9

84G3716

SCREW 5

10

6736067

TUBE

11

17C612

BOLT 5

12

6732114

BRACKET

13

6678239

VALVE brake - A

13

6679773

SOLENOID

13

STEM NSS - Order 6679773 Solenoid - Was 6679770 - D

13

6688356

COIL W/nut - Was 6675731 - B

13

NUT NSS - Order 6688356 Coil - D

13

6672756

KIT, SEAL

13

6679771

CHECK VALVE

13

6679772

RELIEF VALVE

14

6736068

TUBE
