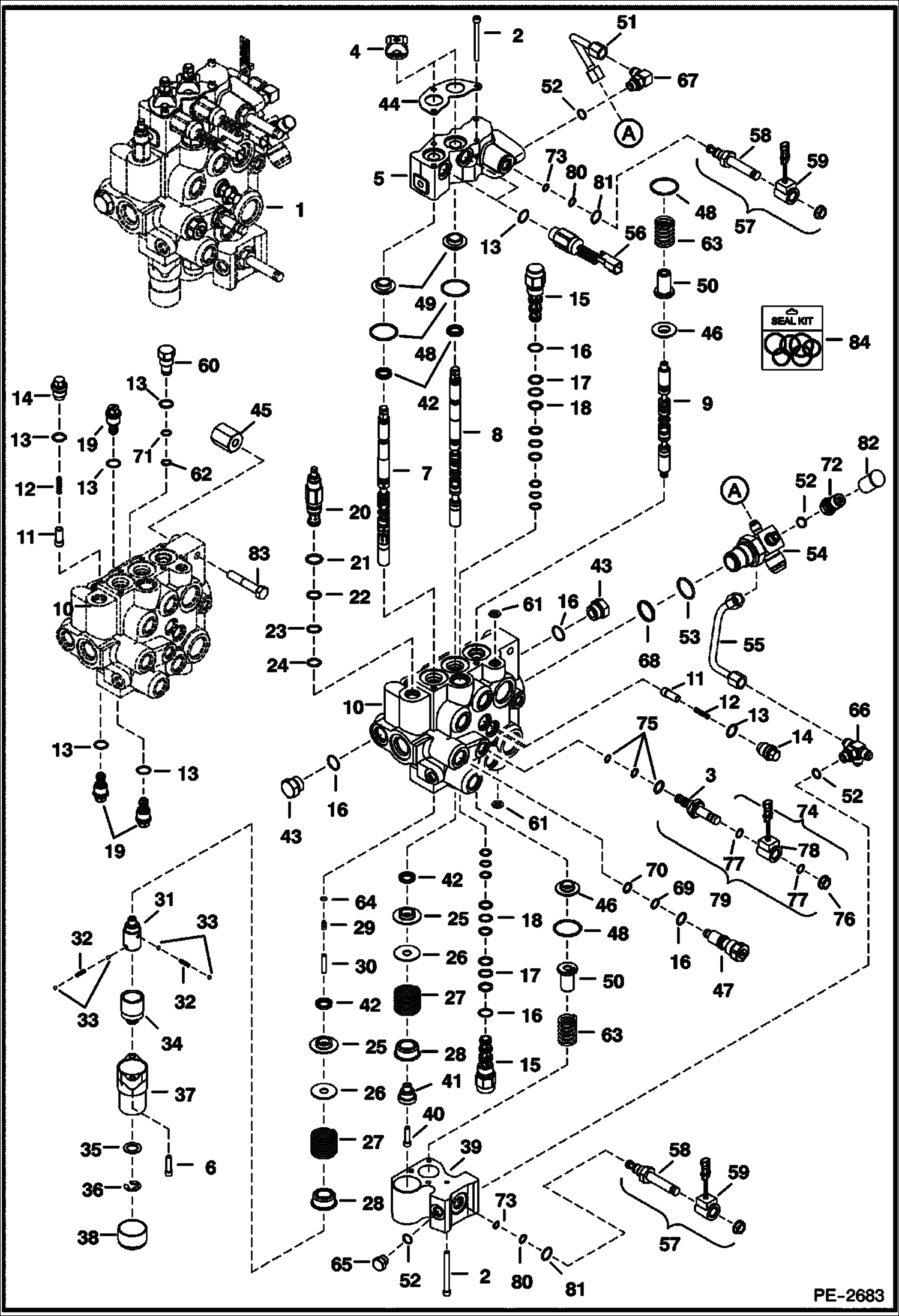

Запчасти Bobcat T-Series HYDRAULIC CONTROL VALVE HYDRAULIC SYSTEM

1

VALVE See BTI363 - NLA - Was 7101842 - A

2

29G444

BOLT

3

6667687

VALVE, STEM SOLENOID

4

6587763

BOOT

5

BODY NSS

6

29G416

BOLT

7

7209460

SPOOL, LIFT LOCK Was 7108781 - C

8

6815152

SPOOL, TILT

9

7112383

AUX SPOOL Was 6814323 - B

10

BODY NSS

11

SEAT, CHECK VALVE NLA - 19 mm (0.75'') ID depth - Order 7166047 seat & Ref. 12 (7166339 spring) - Was 7106712

11

7166047

SEAT, CHECK VALVE 27,3 mm (1.08'') ID depth

12

6592117

SPRING, LOAD CHECK 31,4 mm (1.24'') long

12

7166339

SPRING, LOAD CHECK 44,4 mm (1.75'') long

13

79K8

O RING 10

14

7134520

PLUG load check - W/Ref. 13 - Was 6817707 - A

15

6689739

VALVE pilot operated - W/Ref. 16-18 - Was 6668765 - A

16

79K10

O RING 10

17

80K14

BACK-UP WASHER Was 73K000014B - B

18

58K014

O-RING 10

19

6684645

VALVE, ANTI CAV anti-cav - W/Ref. 13

20

7219324

VALVE, RELIEF W/ O-rings - pressure to be set in field - Was 6686360 - A

21

58K017

O-RING 10

22

6665569

WASHER back-up

23

25K20016

O RING 10

24

6665570

RING glide

25

6595663

BUSHING

26

7211397

WASHER, SPRING Was 6587523 - A

27

6587580

SPRING

28

6592100

COLLAR

29

6596807

PLUG plastic - 0.46'' long

30

6586918

SCREW

31

6587575

ADAPTER

32

6592107

SPRING

33

6592105

BALL

34

6531270

SLEEVE, DETENT

35

6592098

WASHER

36

799119

RING

37

6589226

COVER, END 0.63'' flange

38

6660644

CAP

39

6814279

BLOCK

40

7102652

SCREW

41

6592109

ADAPTER

42

6683274

SEAL, SPOOL 10

43

24K7

PLUG W/Ref. 16

44

6813153

PLATE

45

7103678

PAD

46

7138376

BUSHING Was 6804920 - B

47

6685157

VALVE W/Ref. 16, 69 & 70

48

1K127

O-RING 10 Was 93K127 - A

49

7202038

BUSHING, ALIGNMENT Also Order 82K019 alignment O-ring - Was 6805102 - A

50

6814694

RETAINER spring

51

6815621

TUBE

52

79K6

O RING 10

53

79K16

O RING 10

54

6814433

CROSS W/Ref. 52, 53 & 68

55

6815308

TUBE

56

6676029

SOLENOID, LOCK SPOOL 127 mm (5'') wire - Was 6677383 - B,D

57

6686868

SOLENOID W/Ref. 58, 59, 73, 80 & 81

57

6685603

KIT, SEAL

58

6688743

STEM, VALVE CONTROL W/Ref. 73, 80 & 81 - Was 6688397 - A

59

6678891

COIL 10 volt - W/nut

59

6691022

NUT Was 6690705 - A

60

6816549

PLUG ASSY PORT RLF W/Ref. 13, 62 & 71

61

55K204

O RING 10

62

80K13

WASHER back-up

63

7121399

SPRING Was 6810950 - A

64

54K20002

O'RING 10

65

24K5

PLUG W/Ref. 52

66

7102019

CROSS W/Ref. 52

67

17KB0606

FITTING W/Ref. 52

68

58K022

O-RING 10

69

25K20020

O RING 10

70

80K16

WASHER back-up

71

58K013

O-RING

72

6684125

COUPLER

73

79K7

O RING 10

74

6675559

COIL assy - Ref. 76-78

75

6669732

KIT, SEAL

76

6668820

NUT

77

54K20028

O RING 10

78

6671025

COIL 8 volt

79

SOLENOID Ref. 3 & 75-78

80

58K11

O RING 10

81

58K012

O-RING 10

82

6685602

CAP

83

17C844

BOLT

84

6816252

SEAL KIT two spool - Ref. 2, 4, 29, 42, 48 & 64

84

6661328

SEAL KIT main relief - Ref. 21-24

84

6809425

SEAL KIT Ref. 13 & 16-18

84

6816253

KIT, SEAL complete - Ref. 2, 4, 6, 13, 16-18, 21-24, 42, 44, 48, 51, 61 & 73 - also Order 6816252 seal kit

84

6685603

KIT, SEAL Ref. 73, 80 & 81
