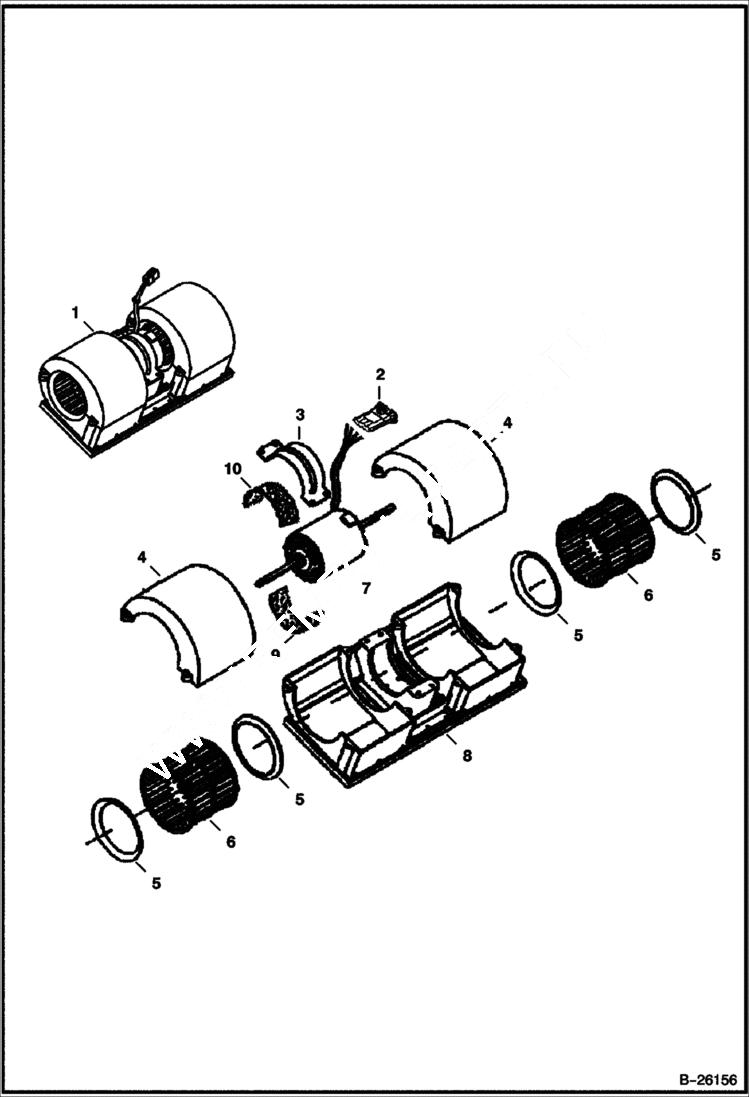

Запчасти Bobcat T-Series HEATER (Blower Assembly) (Used on Heaters W/Metal Housing) ACCESSORIES & OPTIONS

1

BLOWER - NLA - Ref. 2-10 - Order 7003445 blower - Was 6689762 - A

2

6665017

CONNECTOR 4-pin

2

6665018

LOCK 4-pin

2

6648312

TERMINAL

2

6648320

SEAL

2

6650107

SEAL

3

6675506

MOUNT

4

6675507

COVER

5

6675504

RING

6

6675505

BLOWER WHEEL

6

6676618

CLIP

7

6689766

MOTOR W/Ref. 2

8

6675503

HOUSING

9

6689765

PAD bottom

10

6689764

PAD top
