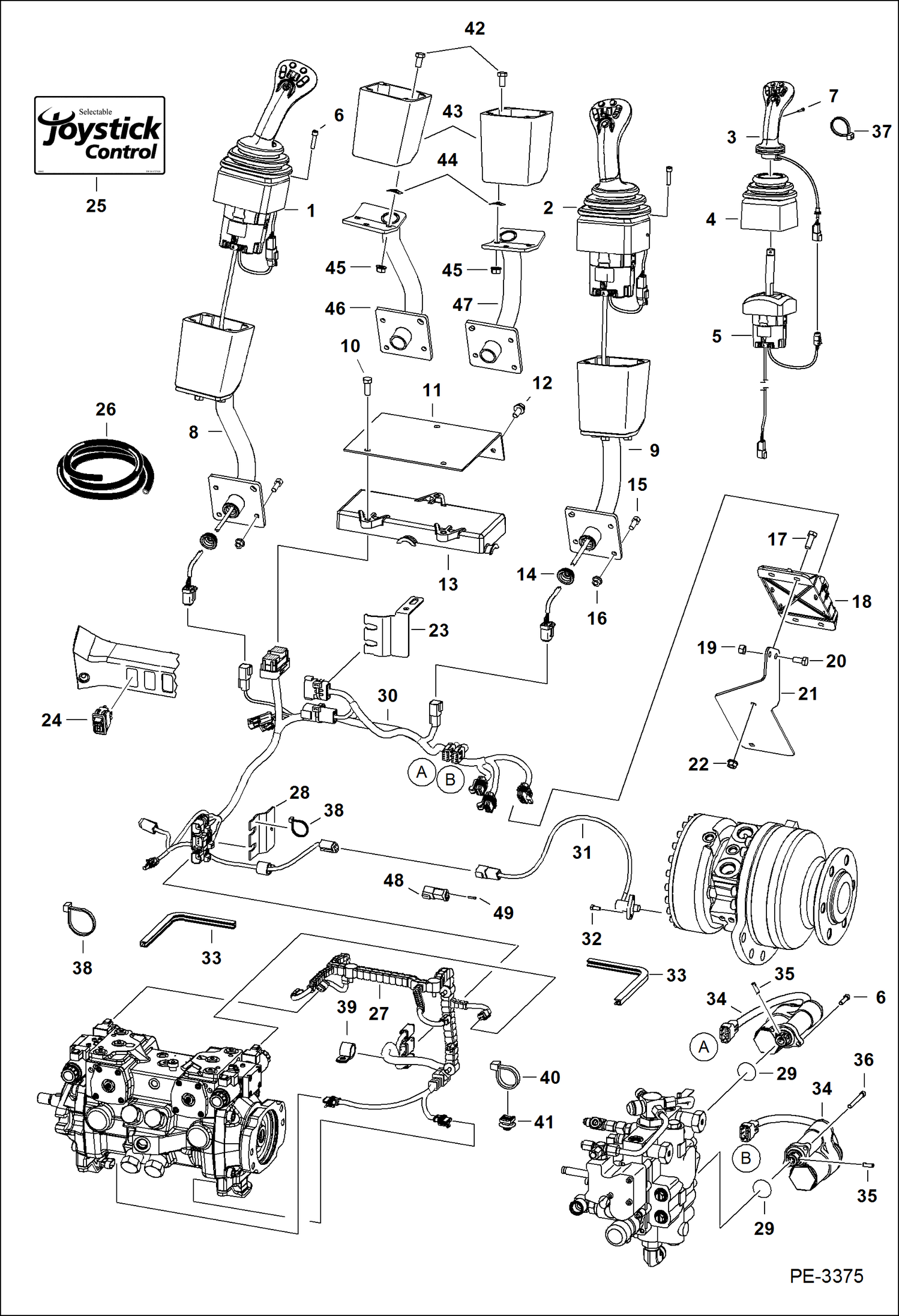

Запчасти Bobcat T-Series CONTROLS ELECTRICAL (Selectable Joystick Controls) (S/N A3L720001 & Above) ELECTRICAL SYSTEM

1

6697904

JOYSTICK, LH Ref. 3-7

2

6697905

JOYSTICK, RH Ref. 3-7

3

6689922

HANDLE LH

3

6689923

HANDLE RH

4

6689926

BOOT

5

6697939

BASE, JOYSTICK RH

5

6697938

BASE, JOYSTICK LH

6

29G416

BOLT

7

6689927

BOLT

8

HANDLE NLA - LH - Order Ref. 14 & 42-46 - A

9

HANDLE NLA - RH - Order Ref. 14, 42-45 & 47 - A

10

43C616

BOLT

11

7115214

BRACKET

12

84G3712

BOLT 5

13

6679485

CONTROLLER SJC drive - W/single 50-pin connector

14

6684294

GROMMET

15

35C512

BOLT

16

97D5

NUT

17

17C616

BOLT 5

18

6680410

CONTROLLER plastic - W/ 3-connector plug

19

97D6

NUT 10

20

17C612

BOLT 5

21

6727580

MOUNT

22

97D6

NUT 10

23

7122359

BRACKET

24

6683812

SWITCH

25

6737248

DECAL, WARNING selectable joystick control

26

6654139

MOULDING bulk - sold per foot

27

7198706

HARNESS, PUMP Use W/hydrostatic pump Model R902095064 - W/ 3-pin oval connectors - Was 7139761 - A

27

7188448

HARNESS, PUMP Use W/hydrostatic pump Model R902136745 - W/ 3-pin triangle connectors - Was 7169309 - A

27

6664969

CONNECTOR 8-pin

27

6664185

CONNECTOR 2-pin

27

6687268

FEMALE CONNECTOR 3-pin oval - Use W/Ref. 27 (7198706 harness)

27

6664801

CONNECTOR 3-pin triangle - Use W/Ref. 27 (7188448 harness)

27

6691421

FEMALE CONNECTOR grey - 4-pin rectangular

27

6662248

4 PIN PLUG black

28

7138106

BRACKET

29

58K120

O-RING Use W/Ref. 34

30

HARNESS See BTI419 - NLA - W/Speed sensor connectors - Was 7159455 - A

30

7159455

HARNESS W/O speed sensor connectors

31

SENSOR, SPEED See BTI419 - NLA - Was 7139902

32

7102184

SCREW

33

MOULDING NLA - 10.5'' (267 mm) long - Order Ref. 43

34

7101672

ACTUATOR W/Ref. 29

35

7108236

PIN

36

69G436

BOLT

37

6691589

100 TIE packaged as 100 pieces

38

6624289

STRAP, TIE

39

30H49

CLAMP

40

6690690

STRAP, TIE

41

6690688

TREE MOUNT

42

17C612

BOLT 5

43

7124929

BASE

44

6684033

NUT retaining

45

97D6

NUT 10

46

7123817

MOUNT LH

47

7123816

MOUNT RH

48

6691419

CONNECTOR, ELECTRICAL

49

6665370

PLUG
